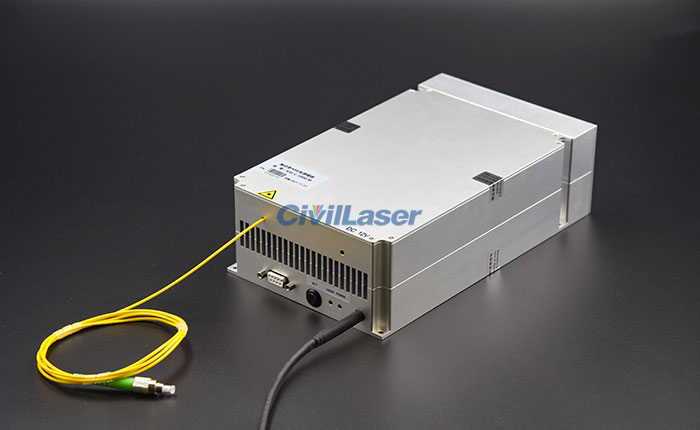

1570nm 5W 37dBm High Power SM Fiber Coupled Pump Laser Source Module Type FLH-1570-37-SM-M70
The 1570nm band single wavelength laser uses a high-performance butterfly-shaped semiconductor laser chip. Professionally designed drive and temperature control circuits ensure the safe operation of the laser, and the output power and spectrum are stable. It is suitable as a pump laser source for thulium-doped fiber lasers or fiber amplifiers, and can be provided in desktop or modular package.
[Features]
Power and spectral high stability
Single-mode fiber output
Module or desktop package
[Applications]
Thulium-doped fiber pumping
Fiber laser
Optical fiber sensing
[Specification]
|
Parameters
|
Unit
|
Typical Value
|
Remarks
|
|
Model
|
--
|
FLH-1570-37-SM-M70
|
|
|
Working Wavelength
|
nm
|
1570
|
|
|
Wavelength Accuracy
|
nm
|
±1
|
|
|
Spectral Linewidth
|
nm
|
≤ 0.1
|
|
|
Sideband Suppression Ratio
|
dB
|
>50
|
|
|
Working Mode
|
--
|
CW
|
Continuous Laser
|
|
Output Power
|
dBm
|
37
|
5W
|
|
Power Adjustment Range
|
--
|
10~100%
|
|
|
Short-term Stability (15 minutes)
|
dB
|
≤ ±0.02
|
Equivalent≤±0.5%
|
|
Long-term Stability (8 hours)
|
dB
|
≤ ±0.05
|
Equivalent≤±1.2%
|
|
Polarization state
|
--
|
Random polarization
|
|
|
Pigtail Fiber Type
|
--
|
SMF-28 SM Fiber
|
L=1m
|
|
Fiber Interface Type
|
--
|
FC/APC
|
|
|
Electrical and environmental parameters
|
Module Type
|
|
Control method
|
RS232 Serial communication
|
|
Communication interface
|
DB9 Female
|
|
Power supply
|
DC 12V
|
|
Size
|
139(W)×235(D)×70(H)mm
|
|
Operating temperature range
|
-5~+35°C
|
|
Operating humidity range
|
0~70%
|
