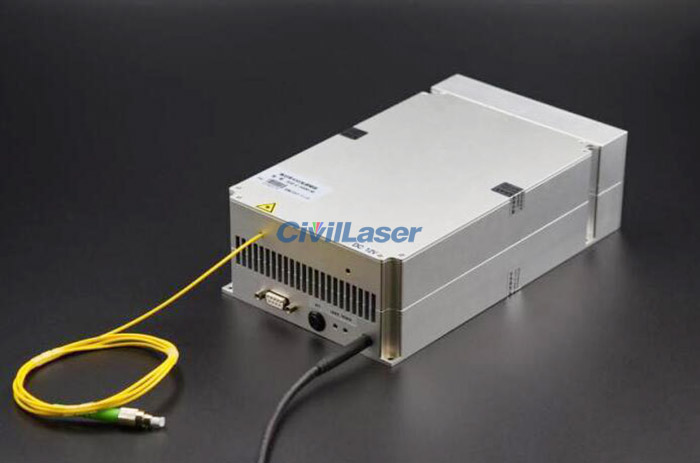

FLH-1064-40-PM-M70 1064nm 10Watt High Power PM Fiber Coupled Laser Module Type
This laser adopts all-fiber laser technology, professionally designed and driven temperature control circuit and control to ensure the safe operation of the laser and stable laser output power and spectrum. It is suitable as a seed laser for higher power laser systems, and can also be used for production testing of optical fiber devices in the 1064nm band. It can be provided in benchtop or modular packaging.
[Features]
High output power
Power and spectral stability
Single-mode output
[Applications]
Seed Laser
Fiber Laser
Optical device testing
[Specifications]
|
Parameters
|
Unit
|
Typical value
|
Remarks
|
|
Model
|
--
|
FLH-1064-40-PM-M70
|
|
|
Working Wavelength
|
nm
|
1064
|
|
|
Wavelength Accuracy
|
nm
|
±2
|
|
|

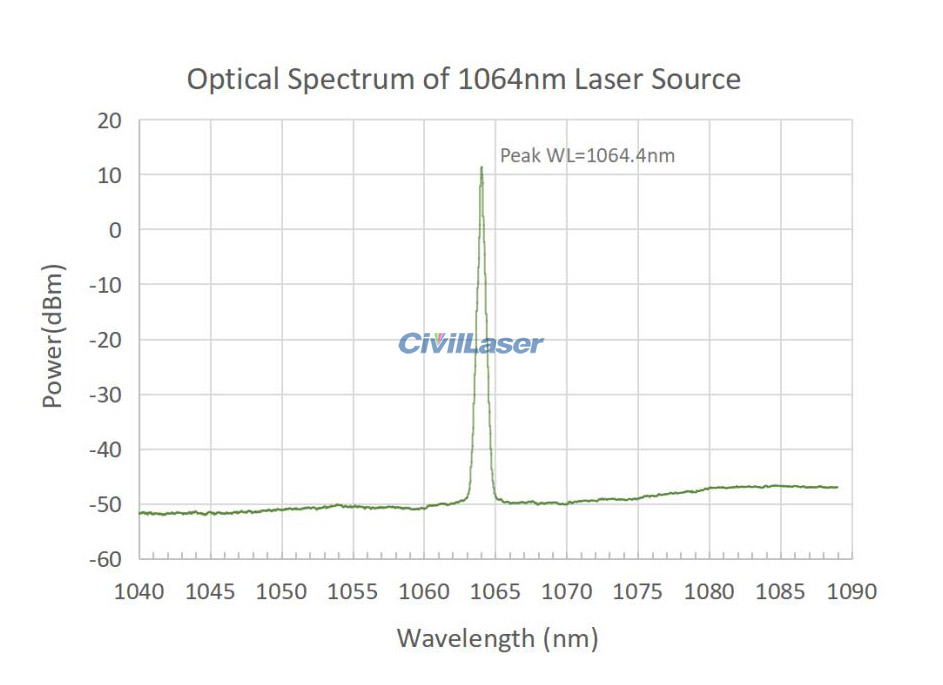

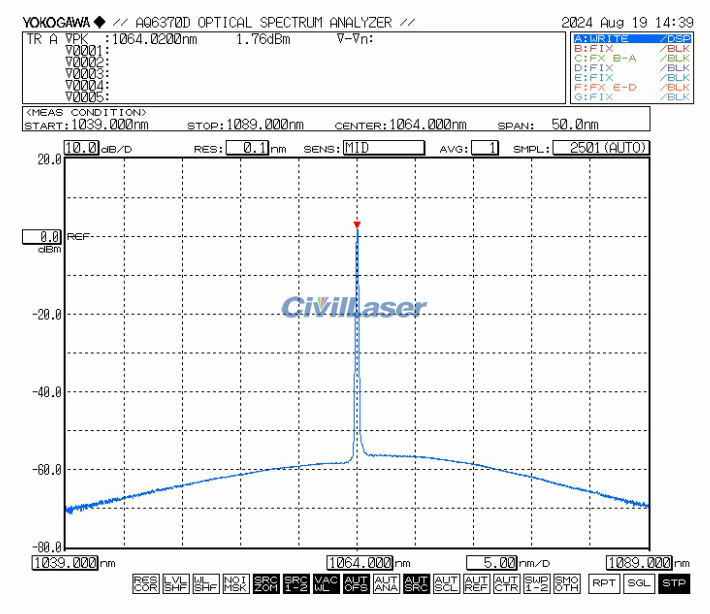

Spectral Width
|
nm
|
<0.1
|
|
|
Output Power
|
W
|
10
|
Customizable
|
|
Power Adjustable Range
|
--
|
10~100%
|
|
|

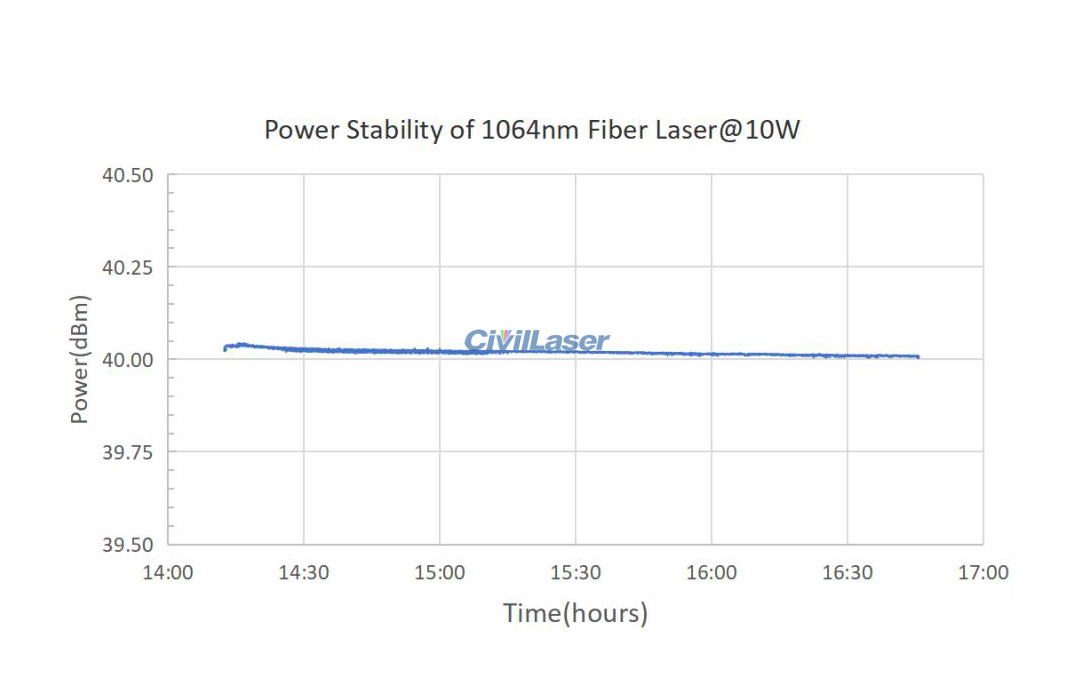

Short-term Stability (15 minutes)
|
dB
|
≤ ±0.02
|
|
|
Long-term Stability (8 hours)
|
dB
|
≤ ±0.05
|
|
|
Polarization State
|
--
|
Linear polarization
|
|
|
Polarization Extinction Ratio PER
|
dB
|
>20
|
|
|
Pigtail Type
|
--
|
PM980 Polarization-maintaining fiber
|
|
|
Pigtail Connector Type
|
--
|
FC/APC
|
Default slow axis alignment with connector slot.
|
|
Electrical and Environmental Parameters
|
Desktop Type
|
Module Type
(Current product)
|
|
Control Method
|
Touch screen/RS232 serial communication
|
RS232 Serial communication
|
|
Communication Interface
|
DB9 Female
(Default not include)
|
DB9 Female
|
|
Power Supply
|
AC 100~240V
|
DC 12V
|
|

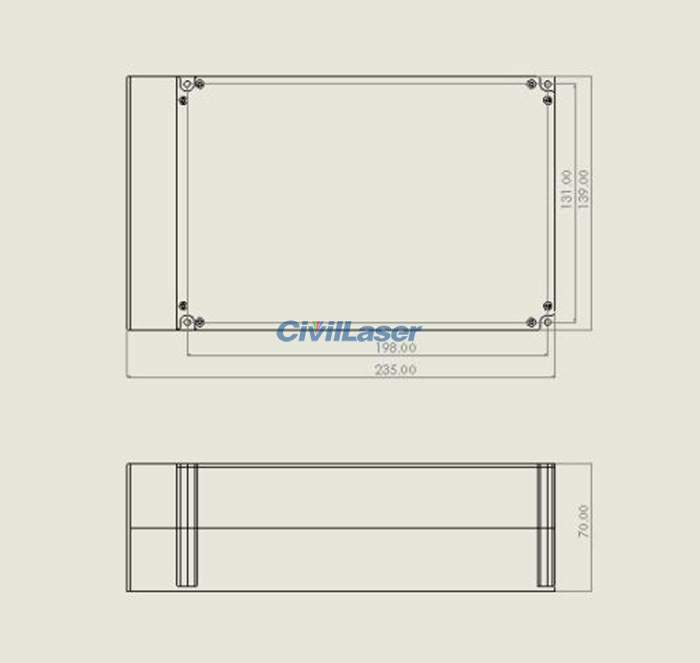

Size
|
376(W)×340(D)×112(H)mm
|
139(W)x235(D)x70(H)mm
|
|
Operating Temperature Range
|
-5~+35°C
|
|
Operating Humidity Range
|
0~70%
|
