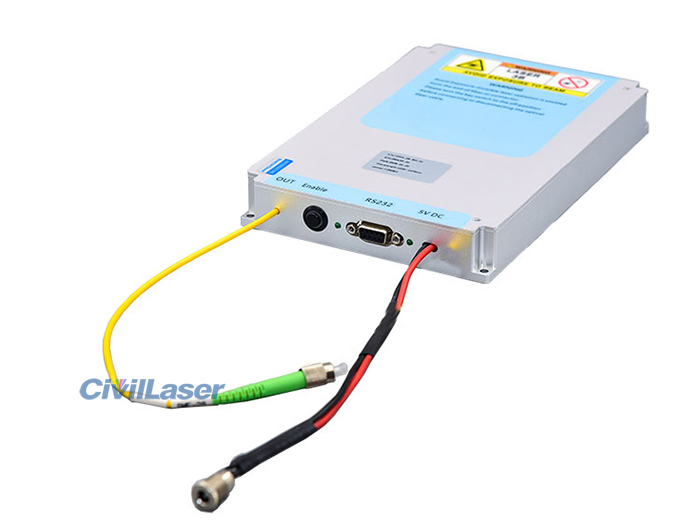

1064nm 500mW Module Type Fiber Laser Source SM Fiber Coupled Laser FL-1064-500-SM-M20/M27 DFB MOPA Laser
This laser adopts butterfly-shaped semiconductor laser chip, and the professionally designed drive and temperature control circuit control ensures the safe operation of the laser and stable output power and spectrum. Suitable as a seed laser for high power lasers and also for production testing of optical devices, available in benchtop or modular packaging.
[Features]
High output power
Power and spectral stability
Single-mode output
[Applications]
Seed Laser
Optical test
Nonlinear Optics Research
[Specifications]
|
Parameters
|
Unit
|
Typical value
|
Remarks
|
|
Model
|
--
|
FL-1064-500-SM-M20/M27
|
|
|
Working Wavelength
|
nm
|
1064
|
|
|
Wavelength Accuracy
|
nm
|
±2
|
|
|
Spectral Width
|
nm
|
<0.1
|
|
|
Working Mode
|
--
|
CW
|
Continuous light
|
|
Output Power
|
mW
|
500
|
Customizable
|
|
Power Adjustable Range
|
--
|
10~100%
|
|
|
Short-term Stability (15 minutes)
|
dB
|
≤ ±0.02
|
Equivalent≤±0.5%
|
|
Long-term Stability (8 hours)
|
dB
|
≤ ±0.05
|
Equivalent≤±1.2%
|
|
Polarization State
|
--
|
Random polarization
|
|
|
Pigtail Type
|
--
|
Hi 1060 Single mode fiber
|
L=1m
|
|
Pigtail Connector Type
|
--
|
FC/APC
|
|
|
Electrical and Environmental Parameters
|
Desktop Type
|
Module Type
(Current product)
|
|
Control Method
|
Touch screen/RS232 serial communication
|
RS232 Serial communication
|
|
Communication Interface
|
DB9 Female
(Default not include)
|
DB9 Female
|
|
Power Supply
|
AC 100~240V
|
DC 5V
|
|

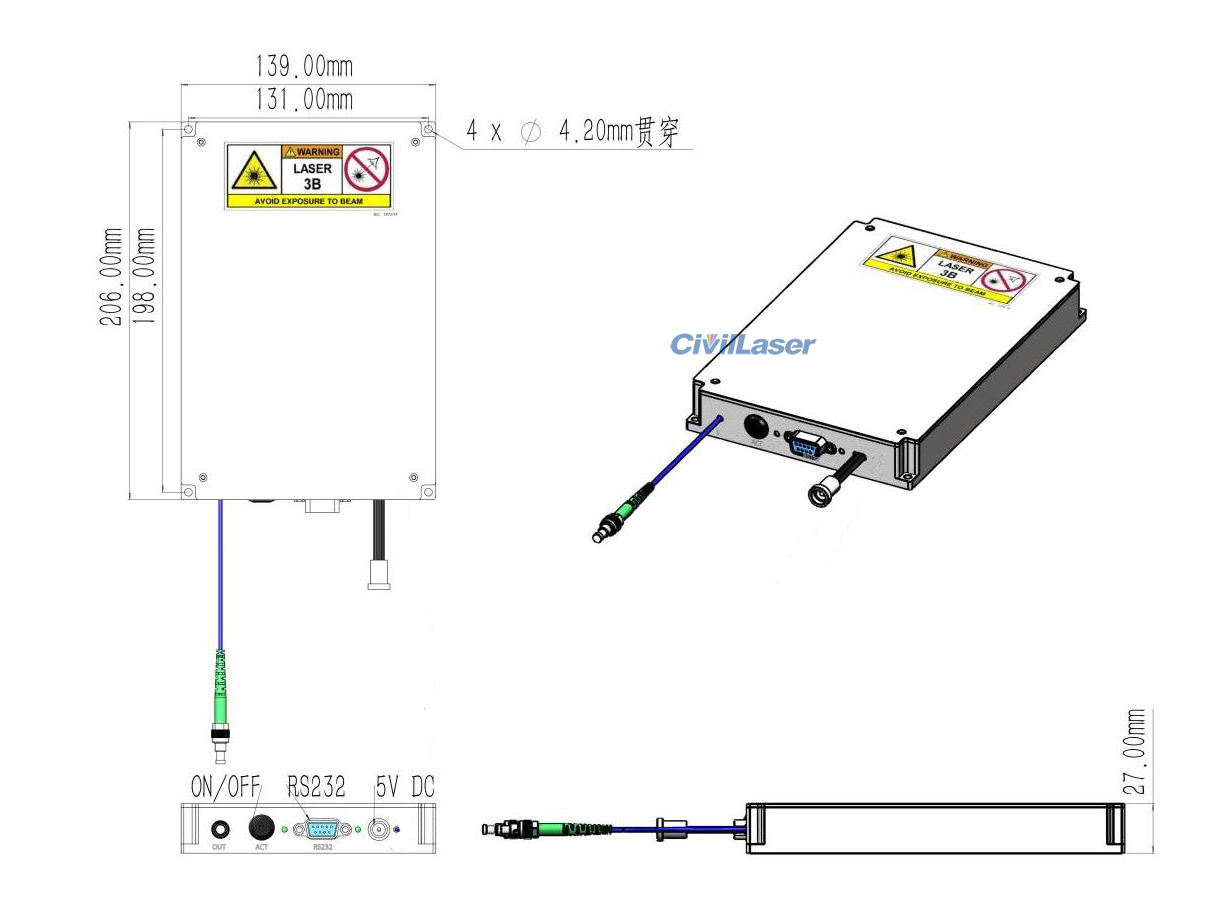

Size
|
255(W)×322(D)×115(H)mm
|
M20: 125(W)×150(D)×20(H)mm
M27: 139(W)×206(D)×27(H)mm
|
|
Operating Temperature Range
|
-5~+35°C
|
|
Operating Humidity Range
|
0~70%
|
