1400mW High Power Distributed Fiber Raman Amplifier Pump with Single-mode Optic Fiber Module Type FRA-1450-1400-M
The second-order fiber Raman amplifier is based on the first-order fiber Raman amplifier and adds a pump laser in the 1340~1360nm band to provide Raman gain for the first-order Raman 14xx nm laser, which can effectively reduce system noise and is suitable for Optical signal amplification for longer distance relayless optical transmission systems. The second-order fiber Raman amplifier must be used together with the first-order fiber Raman amplifier.
[Features]
Wide wavelength range
High gain factor
Low noise figure
[Application]
Long distance fiber optic communication
Fiber Distributed Sensing
Fiber laser
[Specifications]
|
Parameters
|
Unit
|
Typical value
|
Remarks
|
|
Model
|
--
|
FRA-1450-1400-M
|
|
|
Pump Wavelength
|
nm
|
1340~1360
|
The pump wavelength is customized according to the signal wavelength (1340/1360nm).
|
|
Signal Wavelength
|
nm
|
1425~1465
|
Please tell us the actual signal wavelength used before customizing.
|
|
Raman Gain
|
dB
|
10/20
|
|
|
Gain Flatness
|
dB
|
<2
|
|
|
Pump Power
|
mW
|
≥1400
|
|
|
Pump Light Polarization(DOP)
|
--
|
5% (Typical)，10%(Max)
|
|
|
Polarization Dependent Gain(PDG)
|
dB
|
<0.2
|
|
|
Polarization Mode Dispersion(PMD)
|
ps
|
<0.5
|
|
|
Input/Output Isolation
|
dB
|
>35
|
|
|
Noise Figure
|
dB
|
0
|
|
|
Pigtail Fiber Type
|
--
|
SMF-28 Single Mode fiber
|
L=1m
|
|
Pigtail Connector Type
|
--
|
FC/APC
|
|
|
Work mode
|
--
|
ACC
|
Automatic current control
|
|
Electrical and Environmental Parameters
|
Desktop Type
|
Module Type
(Current product)
|
|
Control method
|
Touch screen/RS232 serial communication
|
RS232 Serial communication
|
|
Communication interface
|
DB9 Female(Default not include)
|
DB9 Female
|
|
Power supply
|
AC 100~240V
|
DC 5V， 3A
|
|
Size
|
255(W)×285(D)×115(H)mm
|
125(W)×150(D)×20(H)mm
|
|
Operating temperature range
|
-5~+35°C
|
|
Operating humidity range
|
0~70%
|

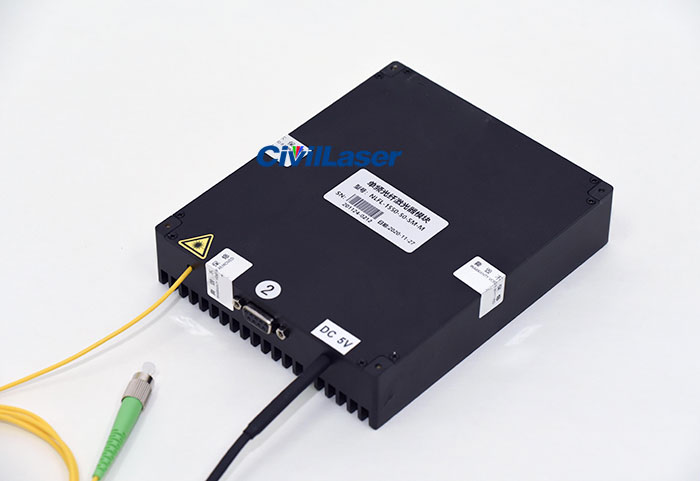

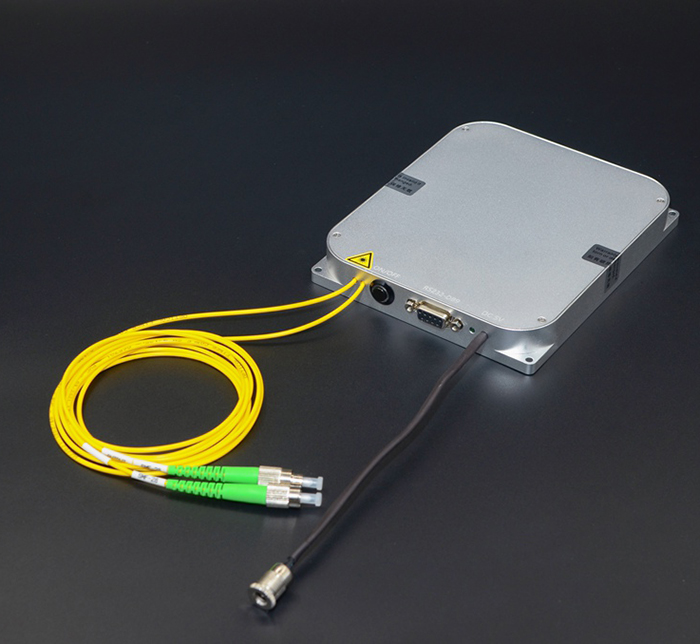

Latest Product Image(Updated on October 22, 2024):
.jpg)
.jpg)
.jpg)
