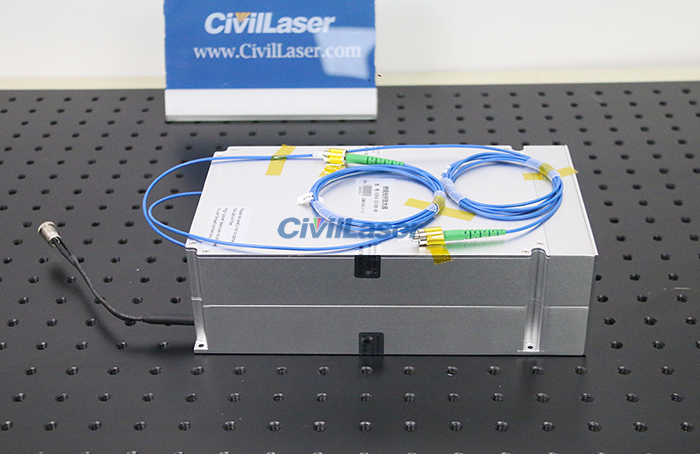

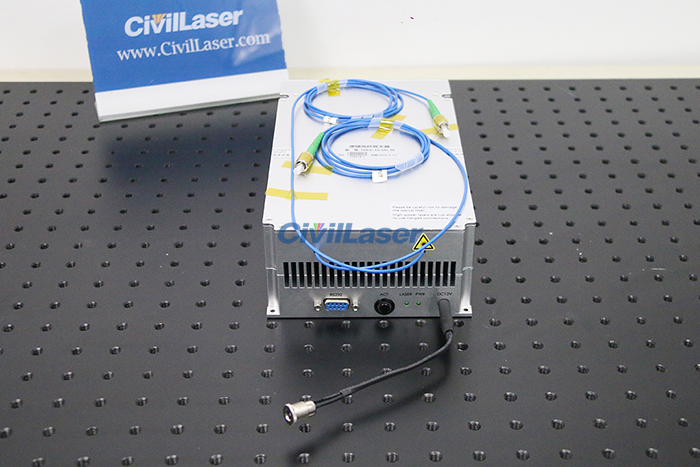

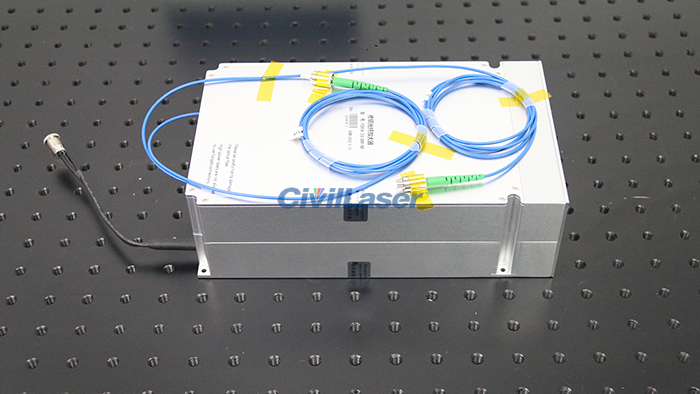

High-Power Polarization Maintaining EDFA C-band 37dBm 5W Optical Fiber Amplifier EYDFA-C-HP-BA-37-PM-M Module Type
The C-band high-power polarization-maintaining erbium-doped fiber amplifier is based on the principle of laser amplification of optical signals in erbium-doped fibers, and adopts a unique multi-stage optical amplification design and reliable high-power laser heat dissipation technology to achieve high-power lasers with wavelengths of 1535~1565nm. PM output. It has the advantages of high power, high extinction ratio and low noise, and can be used in optical fiber communication, lidar, etc.
[Features]
High output power.
High gain factor.
Full polarization maintaining optical path.
[Applications]
Optical fiber communication
Optical fiber sensing
Fiber laser
[Specification]
|
Parameters
|
Unit
|
Typical Value
|
Remarks
|
|
Model
|
--
|
EYDFA-C-HP-BA-37-PM-M
|
|
|
Wavelength Range
|
nm
|
1535~1565
|
C-band
|
|
Input power
|
dBm
|
-6~+10
|
|
|

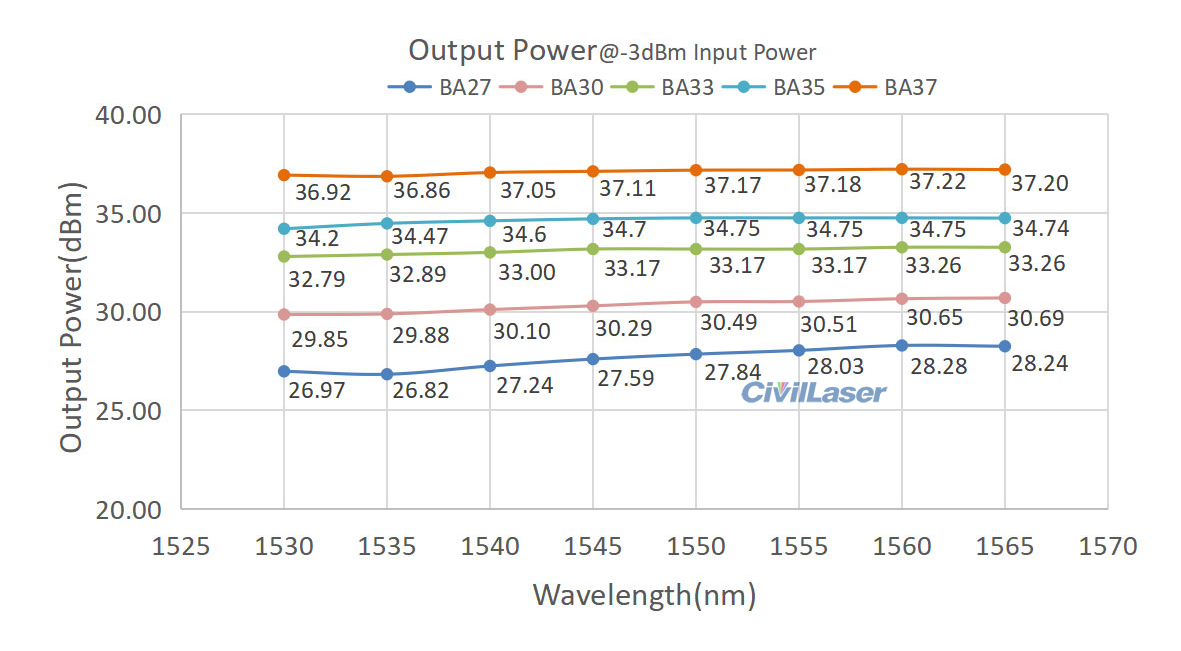

Saturated Output Power
|
dBm
|
37
|
@0dBm input
|
|
Output power adjustment range
|
-
|
10%~100%
|
|
|
Noise Figure
|
dB
|
<6.0
|
@0dBm input
|
|
Polarization Extinction Ratio
|
dB
|
23(Type)，20(Min)
|
|
|
Input/Output Isolation
|
dB
|
>35
|
|
|
Optical Power Monitoring
|
--
|
Input, output optical power monitoring
|
|
|
Pigtail Fiber Type
|
--
|
PM1550 polarization maintaining fiber
|
|
|
Fiber Interface Type
|
--
|
FC/APC
|
|
|
Work Mode
|
--
|
Automatic current control (ACC) / Automatic Power Control (APC)
|
|
|
Electrical and environmental parameters
|
DeskTop Type
|
Module Type
(Current product)
|
|

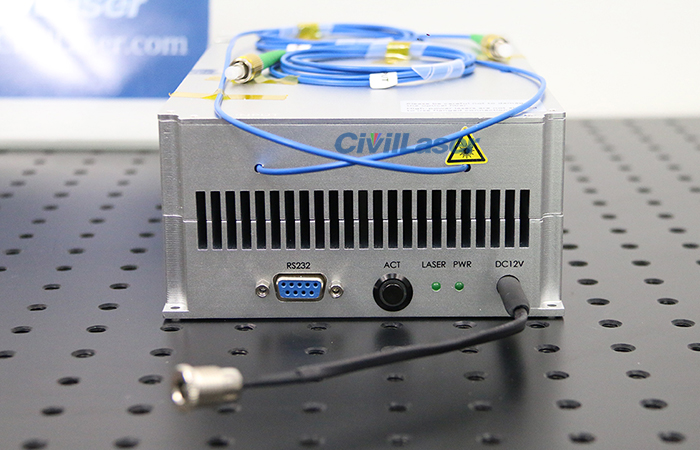

Control method
|
Touch screen
|
RS232 Serial communication
|
|
Communication interface
|
DB9 Female
(Default not include)
|
DB9 Female
|
|
Power supply
|
AC 100~240V
|
DC 12V, 5A
|
|

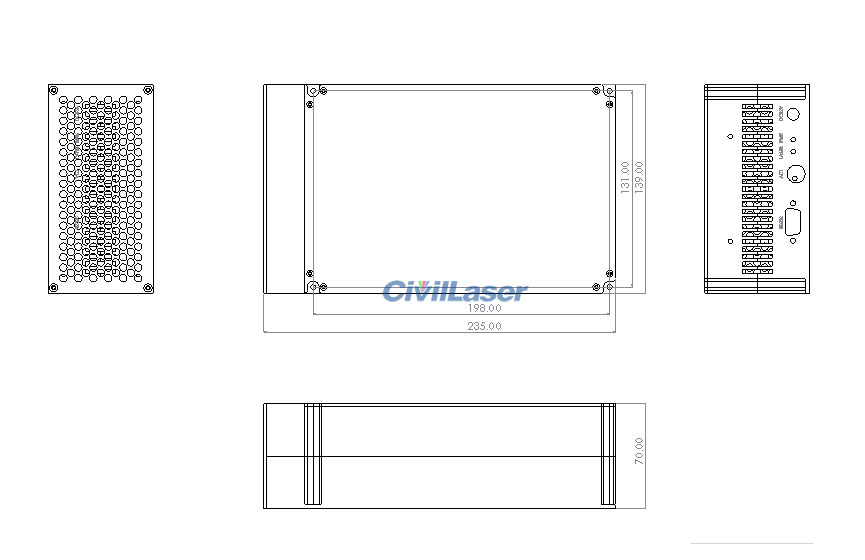

Size
|
376(W)×340(D)×112(H)mm
|
139(W)×235(D)×70(H)mm
|
|
Operating temperature range
|
-5~+35°C
|
|
Operating humidity range
|
0~70%
|
