High Power Optical Fiber Amplifier EYDFA-C-HP-BA-35-PM-B2 C-Band 35dBm 3W PM EDFA Desktop Type
The high-power polarization-maintaining erbium-doped fiber amplifier is based on the polarization-maintaining double-clad erbium-doped fiber amplification technology. It adopts a unique fiber packaging process and a reliable high-power laser protection design to achieve high-power laser polarization-maintaining output in the wavelength range of 1540~1565nm. It has the advantages of high power, high extinction ratio and low noise, and can be used for fiber optic communication, laser radar, etc.
[Features]
High output power.
High gain factor.
Full polarization maintaining optical path.
[Applications]
Optical fiber communication
Fiber optic sensing
Laser radar
[Specification]
|
Parameters
|
Unit
|
Typical Value
|
Remarks
|
|
Model
|
--
|
EYDFA-C-HP-BA-35-PM-B2
|
|
|
Wavelength Range
|
nm
|
1535~1565
|
C-band
|
|
Input power
|
dBm
|
-6~+10
|
|
|
Saturated Output Power
|
dBm
|
35
|
@0dBm input
|
|
Output power adjustment range
|
-
|
10%~100%
|
|
|
Noise Figure
|
dB
|
<6.0
|
@0dBm input
|
|
Polarization Extinction Ratio
|
dB
|
23(Type)，20(Min)
|
|
|
Input/Output Isolation
|
dB
|
>35
|
|
|
Optical Power Monitoring
|
--
|
Input, output optical power monitoring
|
|
|
Pigtail Fiber Type
|
--
|
PM1550 polarization maintaining fiber
|
|
|
Fiber Interface Type
|
--
|
FC/APC
|
|
|
Work Mode
|
--
|
ACC/APC/AGC
|
ACC: Automatic Current Control
APC: Automatic Power Control
AGC: AGC: Automatic Gain Control
|
|
Electrical and environmental parameters
|
DeskTop Type
(Current product)
|
Module Type
|
|
Control method
|
Touch screen/RS232 Serial communication
|
RS232 Serial communication
|
|
Communication interface
|
DB9 Female
(Default not include)
|
DB9 Female
|
|
Power supply
|
AC 100~240V
|
DC 12V
|
|

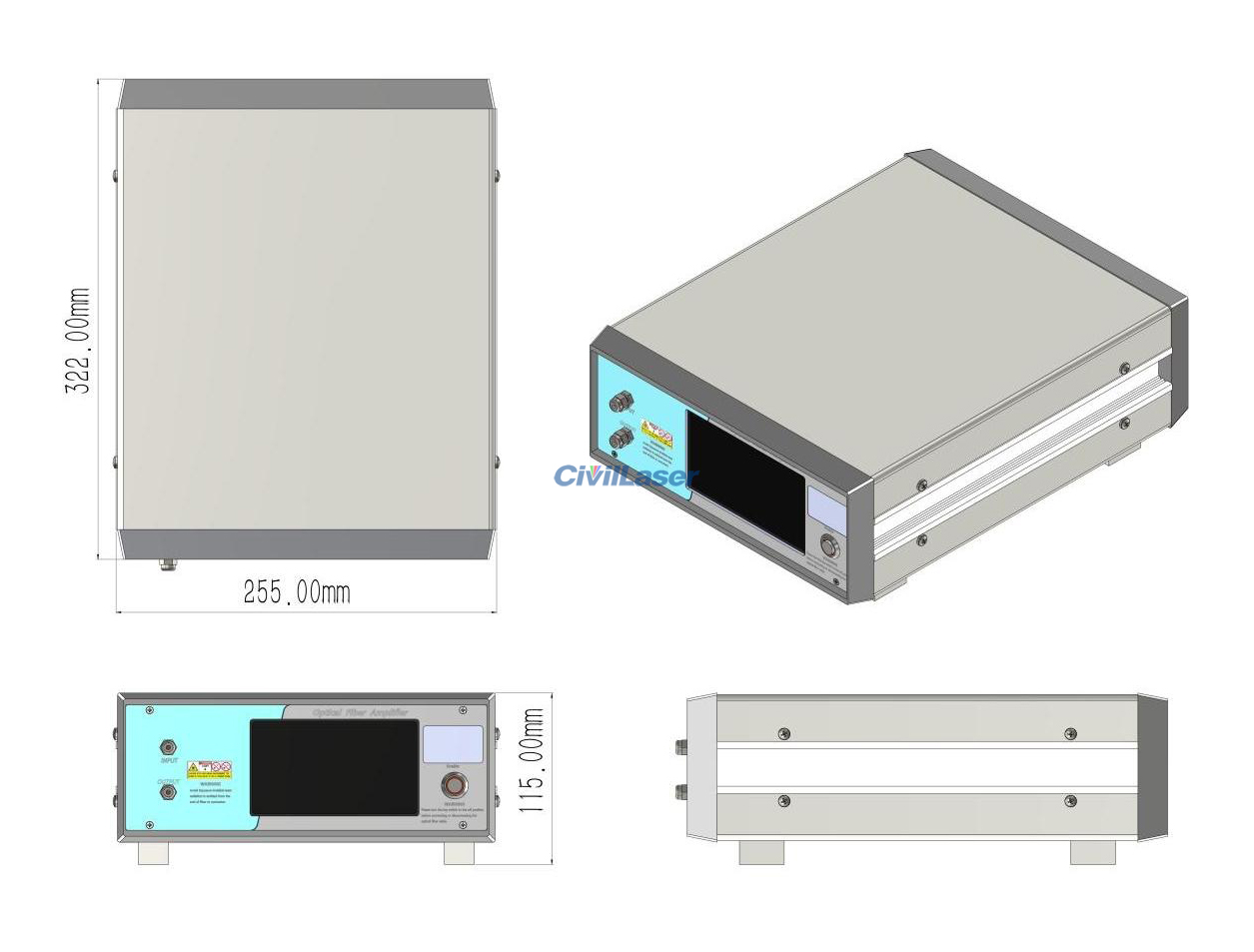

Size
|
255(W)×322(D)×115(H)mm
|
M21: 125(W)×150(D)×21.5(H)mm
M31: 125(W)×150(D)×31.5(H)mm
|
|
Operating temperature range
|
-5~+35°C
|
|
Operating humidity range
|
0~70%
|
