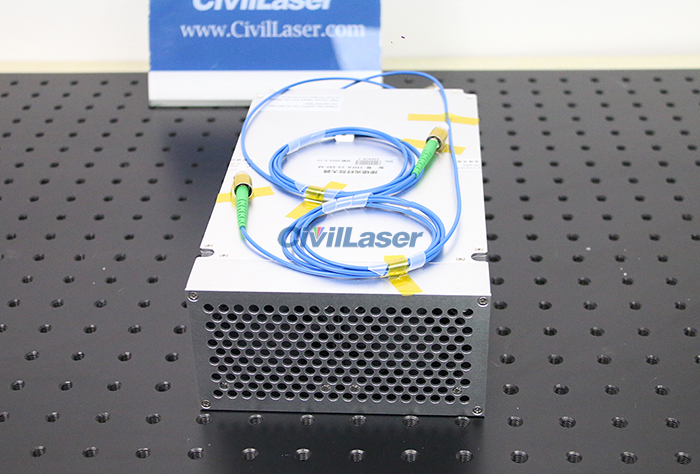

C-Band EDFA 37dBm 5W High Power Optical Amplifier Module EYDFA-C-HP-BA-37-SM-M
The high-power erbium-doped fiber amplifier (EYDFA-HP) is based on the principle of laser amplification of optical signals in erbium-ytterbium co-doped fiber. It adopts a uniquely designed optical path structure and a reliable high-power laser heat dissipation process to achieve high power in the wavelength range of 1535~1565nm. Power laser output. It has the advantages of high power and low noise and can be used in fiber optic communications, lidar, etc.
[Characteristic]
Wide Working wavelength range
Low noise
High reliability and good temperature adaptability
[Application]
CATV and optical fiber communication
Optical fiber sensing
Laser radar
[Specifications]
|
Parameters
|
Unit
|
Typical value
|
Remarks
|
|
Model
|
|
EYDFA-C-HP-BA-37-SM-M
|
|
|
Wavelength Range
|
nm
|
1535~1565
|
|
|
Input power
|
dBm
|
-6~+10
|
|
|
Saturated Output power
|
dBm
|
37
|
@-3dBm Input
|
|
Output power adjustable range
|
-
|
10%~100%
|
|
|
Noise index
|
dB
|
<6.0
|
|
|
Gain Wavelength Non-Uniformity
|
dB
|
≤1
|
@Different wavelengths are amplified separately
|
|
Polarization dependent gain
|
dB
|
≤0.5
|
|
|
Polarization mode dispersion
|
ps
|
0.5
|
|
|
Input/output isolation
|
dB
|
>35
|
|
|
Optical Power Monitoring
|
--
|
Input, output optical power monitoring
|
|
|
Pigtail fiber type
|
--
|
SMF-28 Single Mode fiber
|
L=1m
|
|
Pigtail connector type
|
--
|
FC/APC
|
|
|
Work mode
|
--
|
ACC/APC
|
Automatic Current Control (ACC)/
Automatic Power Control (APC)
|
|
Electrical and environmental parameters
|
Desktop Type
|
Module Type
(Current product)
|
|
Control method
|
Touch screen/RS232 Serial communication
|
RS232 Serial communication
|
|
Communication interface
|
DB9 Female
(Default not include)
|
DB9 Female
|
|
Power supply
|
AC 100~240V
|
12V DC
|
|
Size
|
376(W)×340(D)×112(H)mm
|
139(W)×235(D)×70(H)mm
|
|
Operating temperature range
|
-5~+35°C
|
|
Operating humidity range
|
0~70%
|
