30dBm 1 Watt C-Band High Power EDFA Module type EYDFA-C-HP-BA-30-SM-M21/M31
The high-power erbium-doped fiber amplifier (EYDFA-HP) utilizes the principle of stimulated light amplification of optical signals in erbium-ytterbium co-doped fiber. It utilizes a uniquely designed optical path and reliable high-power laser heat dissipation technology to achieve high-power laser output in the 1535-1565nm wavelength range. Its high power and low noise performance make it suitable for applications such as fiber-optic communications and lidar.
[Features]
High power
High gain coefficient
Wide wavelength range
[Application]
Fiber Optic Communications
Fiber Optic Sensing
Fiber Optic Laser
[Specifications]
|
Parameters
|
Unit
|
Typical value
|
Remarks
|
|
Model
|
|
EYDFA-C-HP-BA-30-SM-M21/M31
|
|
|
Wavelength Range
|
nm
|
1535~1565
|
|
|
Input power
|
dBm
|
-6~+10
|
|
|
Saturated Output power
|
dBm
|
30
|
@-3dBm Input
|
|
Output power adjustable range
|
-
|
10%~100%
|
|
|
Noise index
|
dB
|
<6.0
|
|
|
Gain Wavelength Non-Uniformity
|
dB
|
≤1
|
@Different wavelengths are amplified separately
|
|
Polarization dependent gain
|
dB
|
≤0.5
|
|
|
Polarization mode dispersion
|
ps
|
0.5
|
|
|
Input/output isolation
|
dB
|
>35
|
|
|
Optical Power Monitoring
|
--
|
Input power monitoring;
Output power monitoring
|
|
|
Pigtail fiber type
|
--
|
SMF-28 Single Mode fiber
|
L=1m
|
|
Pigtail connector type
|
--
|
FC/APC
|
|
|
Work mode
|
--
|
ACC/APC/AGC
|
ACC: Automatic Current Control
APC: Automatic Power Control
AGC: AGC: Automatic Gain Control
|
|
Electrical and environmental parameters
|
Desktop Type
|
Module Type
(Current product)
|
|
Control method
|
Touch screen/RS232 Serial communication
|
RS232 Serial communication
|
|
Communication interface
|
DB9 Female
(Default not include)
|
DB9 Female
|
|
Power supply
|
AC 100~240V
|
12V DC, <60W
|
|
Size
|
255(W)×322(D)×115(H)mm
|
M21: 125(W)×150(D)×21.5(H)mm
M31: 125(W)×150(D)×31.5(H)mm
|
|
Operating temperature range
|
-5~+35°C
|
|
Operating humidity range
|
0~70%
|
.jpg)

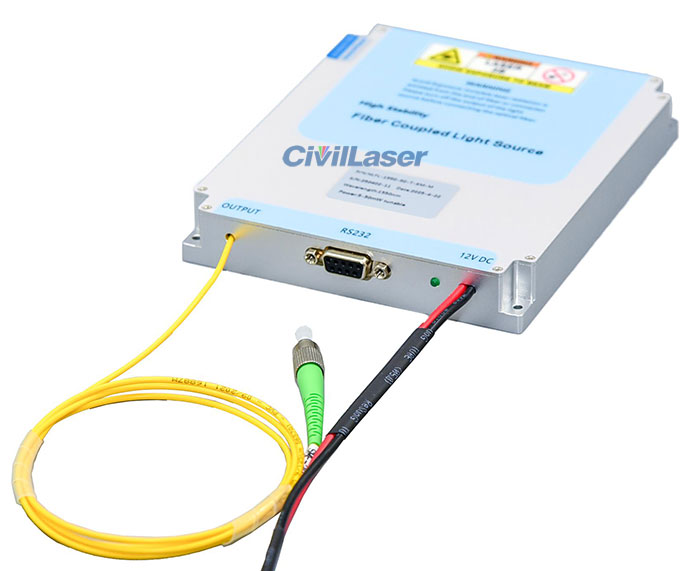

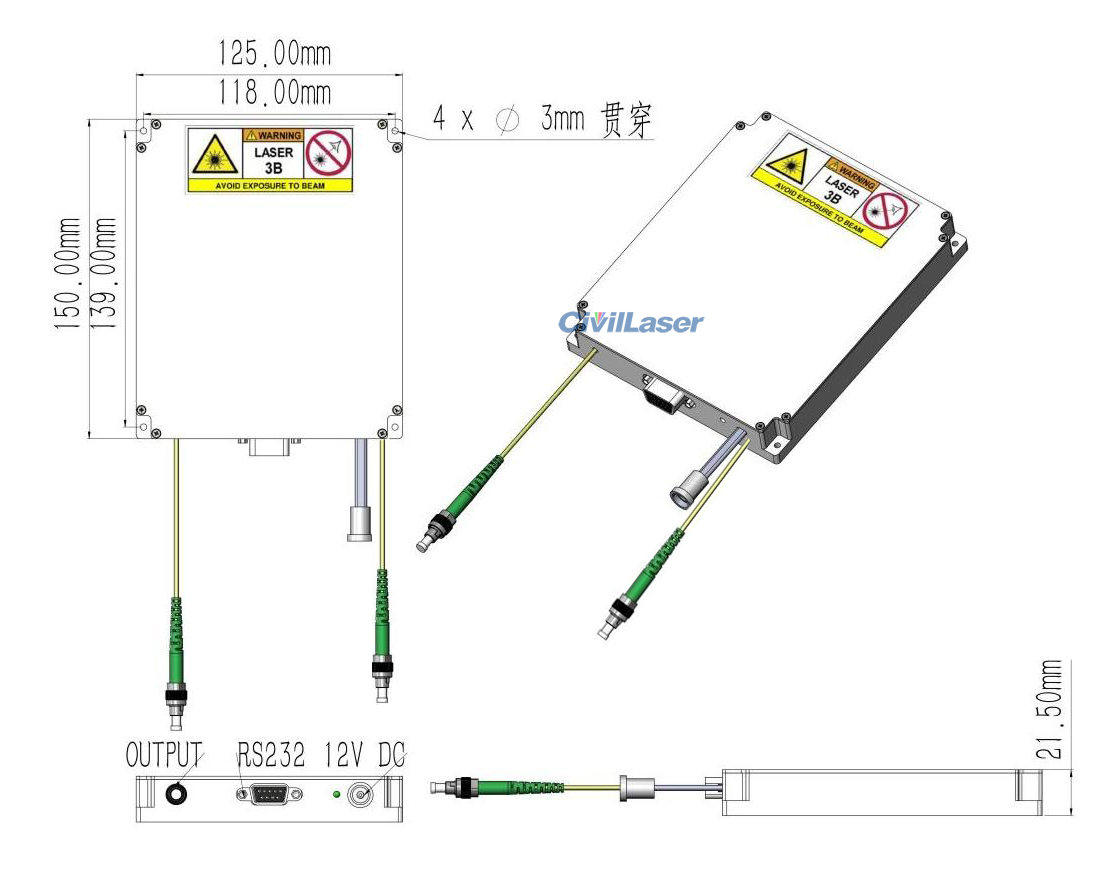

M21 Latest Product Images:
.jpg)
.jpg)

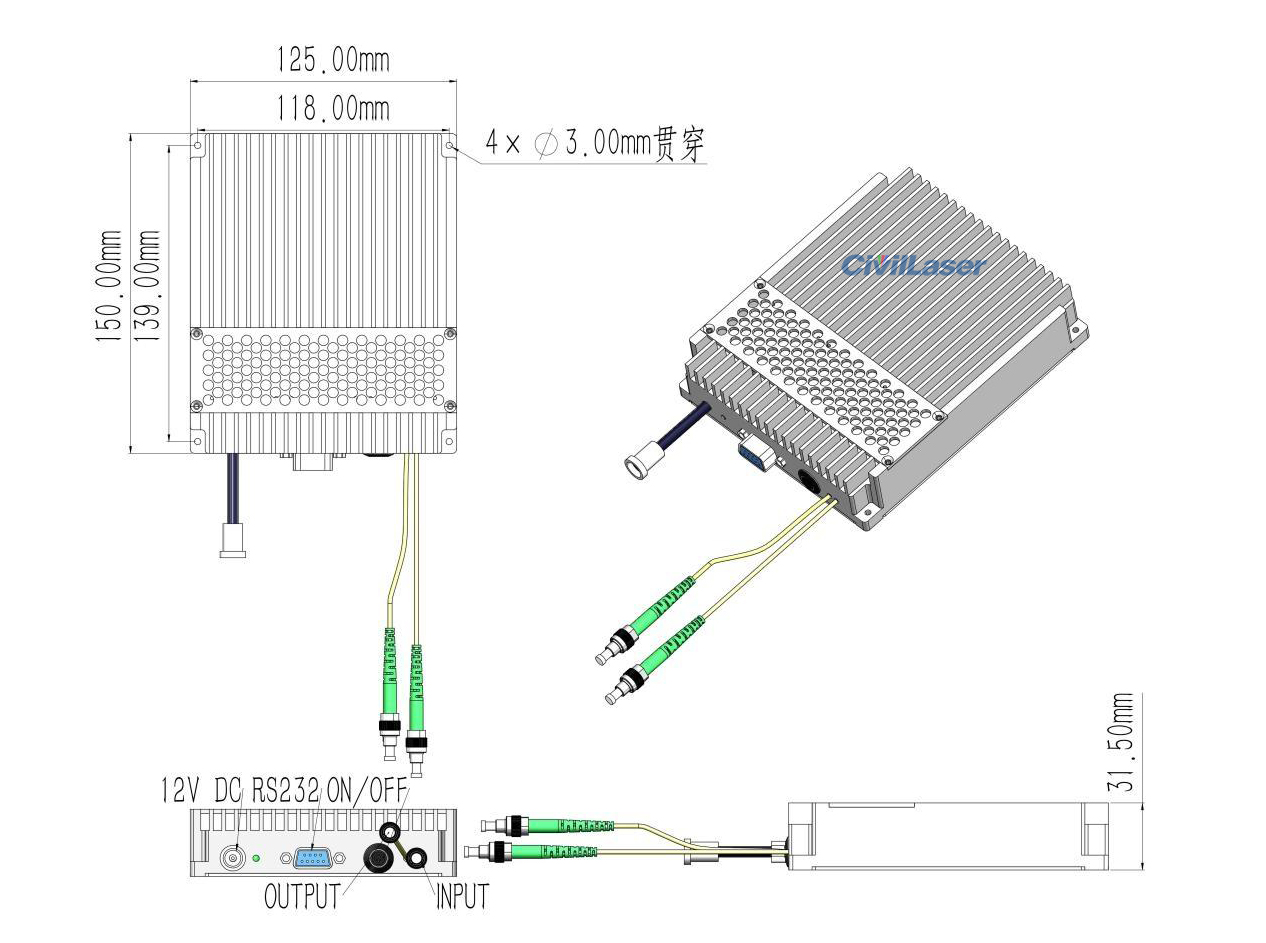

M31 Latest Product Images:
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
