850nm 200mw ir laser diodes RLD84PZJ2 T018 5.6mm with PD

$43.00

Add to Cart:


850nm 200mw ir laser diodes RLD84PZJ2  T018 5.6mm with PD

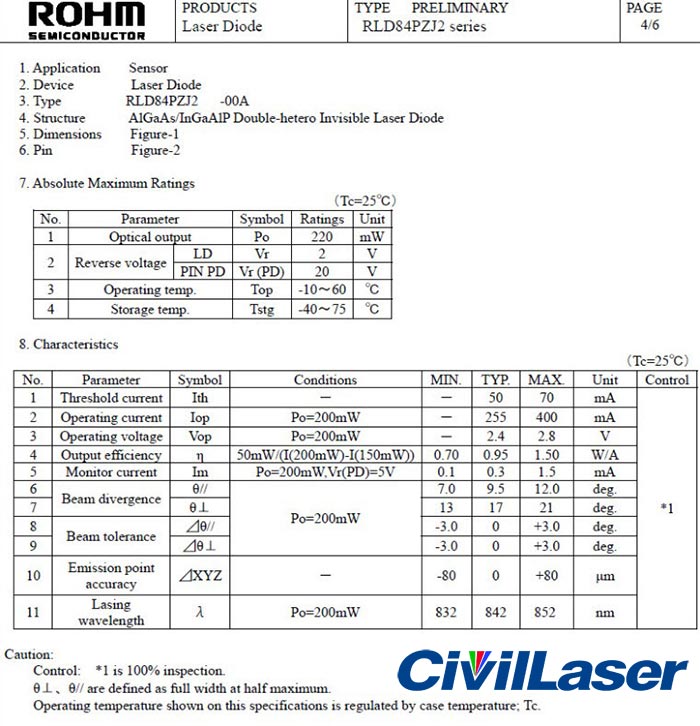

[Specifications]
Product name: 850nm laser diode
Output Wavelength:842nm ~ 852nm
Output Power: 200mw
Operating Current: <400mA
Operating Voltage: DC 2.4V~2.8V

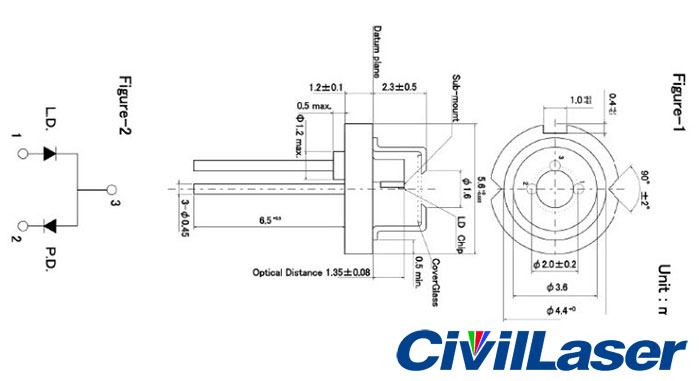

Package Type: TO-18 ( Φ5.6mm)
Place of production: Japan
Working life: >10,000 hours


[Package includes]
1 x 850nm laser diode


Note:
This component sensitive to static electricity, anti-static measures do not make direct contact with the laser tube by human hand, in addition to the product must have a qualified driver circuit before work, different laser beam power with the same working voltage, but  operating current is different, the circuit of the tube drive current needed to control in a safe range, otherwise it will affect life expectancy.


This is a special product, before shipment to ensure the good quality and brand new, once sold, do not be warranty and refund!
