19~2200nm 1~500mJ Portable Pulsed Laser Energy Meter Wide Wavelength Range

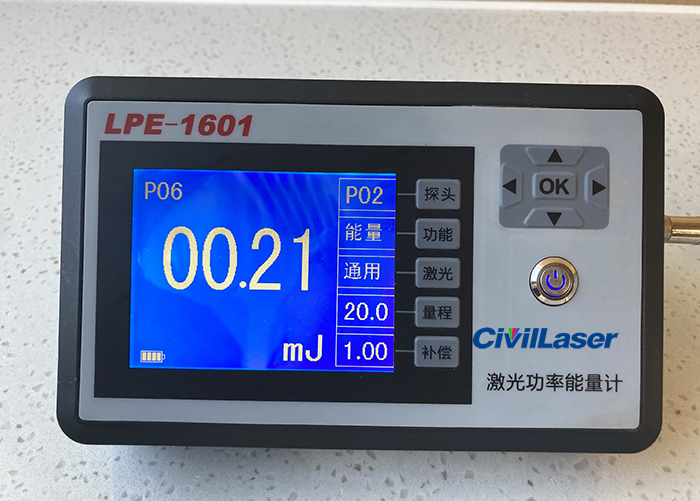

The energy meter host has a color screen with a resolution of 320x240. It adopts advanced electronic circuits and digital signal processing technology, including a circuit designed specifically to suppress electromagnetic interference. It has high measurement sensitivity, a wide range, and good The advantages of signal-to-noise ratio, applicable accuracy, and faster response time. It can be equipped with P-series pyroelectric detector to complete the measurement of laser energy.
[Specification]
| Parameters |
Value |
| Model |
LPE-1601 |
| Wavelength Range |
19nm~2200nm |

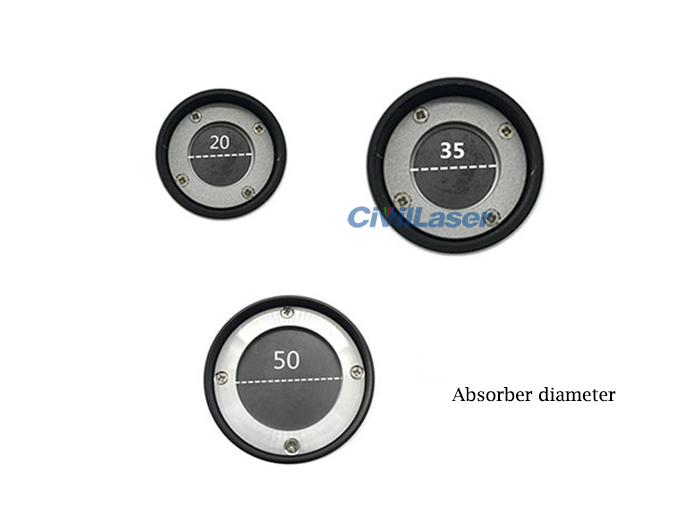

| Receiving Caliber |
φ20mm, φ35mm, φ50mm (Choose) |
| Laser Energy Measurement Range |
1mJ~500mJ (1J...10J,20J can be customized.) |
| Calibration Wavelength |
1064nm/532nm/248nm/... (Customizable) |
| Measurement Uncertainty |
5% |
| Energy Resolution |
0.1mJ/1mW |
| Measurable Laser Pulse Frequency Range |
Single pulse energy, power of continuous light |
| Laser Pulse Width Range |
1ns~200us,ms |
| Computer Interface |
USB (Customizable) |
| Adapter Power |
AC 220V (1±10%) V, power consumption ≤2.5W |
| Power Supply |
Lithium battery, battery continuous working time: ≥4h |
| Structural features |
Portable |
| Max.Laser Peak Power Density |
100mW/cm² |
| Damage Threshold |
20J/cm² |
| Response Time |
2s~5s |
| Size |

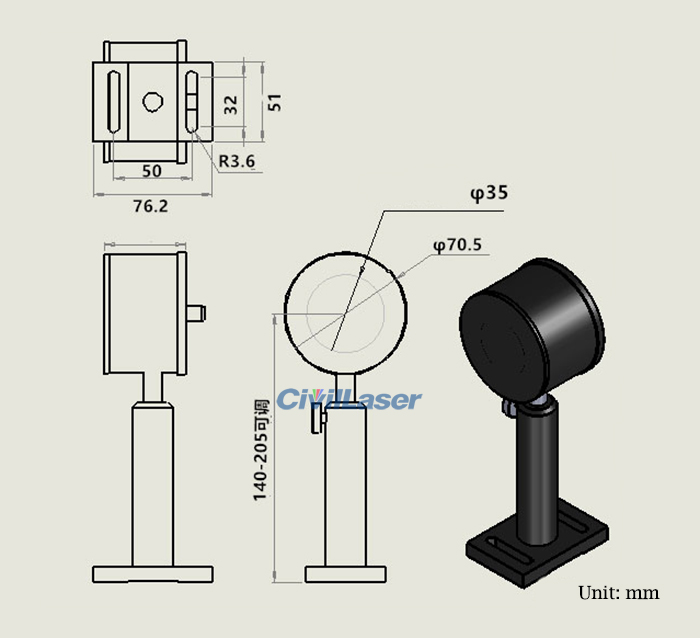

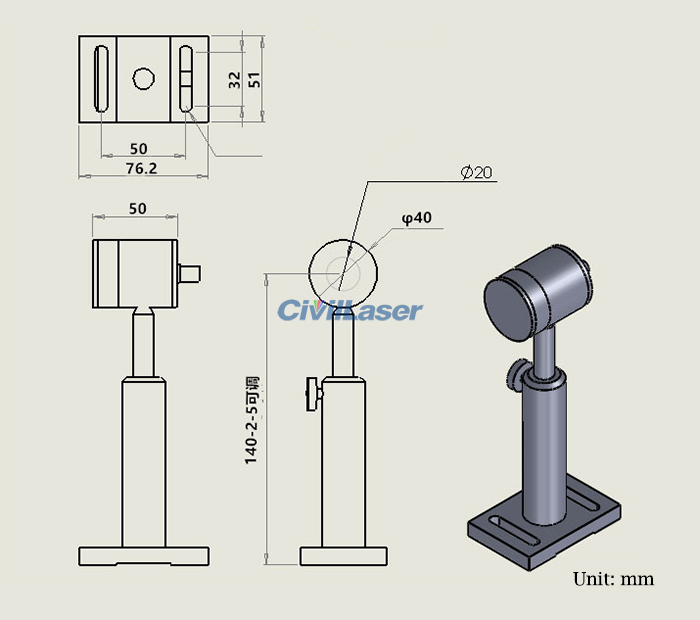

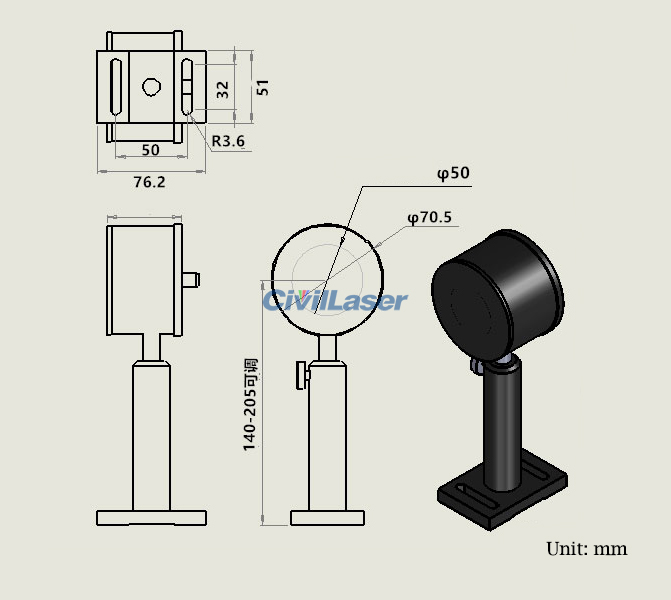

Detector (H): 75mm

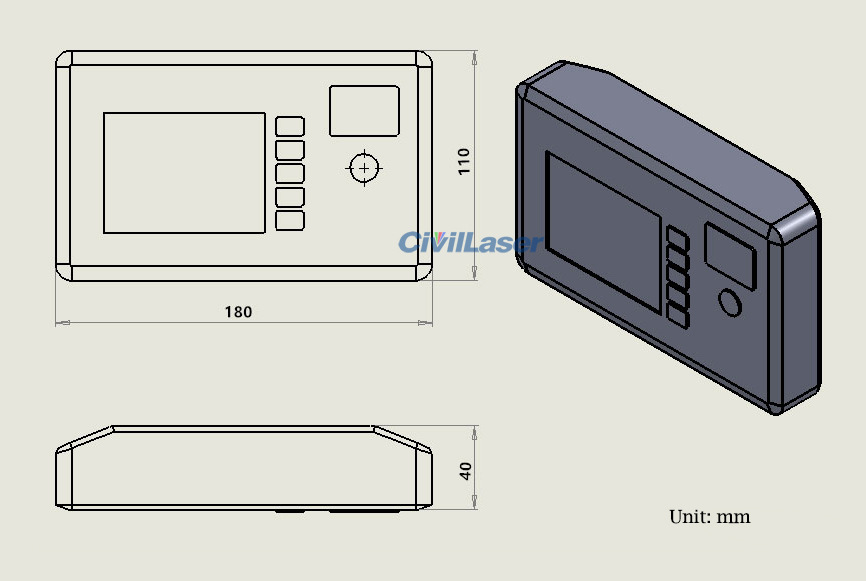

Display (L×H): 178*110mm |
| Weight |
≤1kg |
| Warranty |
1 year |
