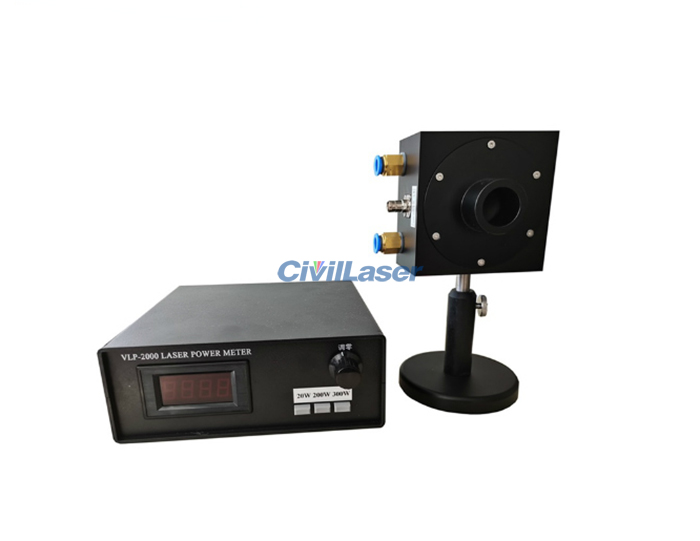

0.03~300W Laser Power Meter 11nm~19000nm Full Wavelength Measurement Desktop Type

$1,603.00

Add to Cart:


0.03~300W Laser Power Meter 11nm~19000nm Full Wavelength Measurement Desktop Type

Our laser power meter has the characteristics of stable operation, accurate measurement, small size and long service life. Based on the calorimetric principle, it not only has the advantages of good optical uniformity, extremely insensitive to the influence of the laser polarization state and incident angle, etc., but also has a relatively high ability to resist laser damage.

Measuring Laser Type:
Fiber laser, semiconductor laser, solid state laser, CO2 laser, CW laser, YAG, helium neon and infrared laser, etc.

[Features]
Spectral range: 11nm~19000nm
Damage threshold: 15KW/cm²
Detection diameter: 28mm

[Specification]

Parameters Value
Model VLP-T2000-300W
Wavelength Range 11nm~19000nm

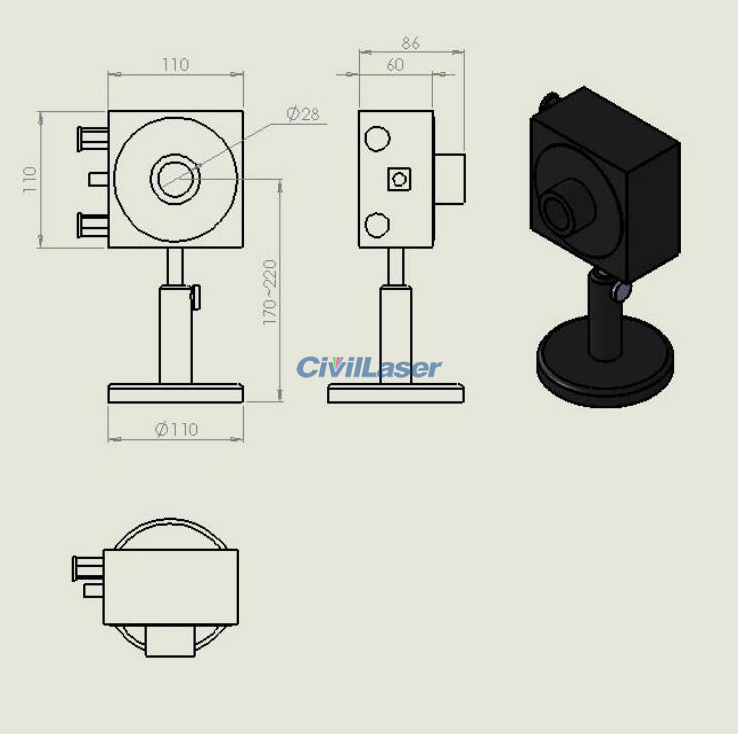

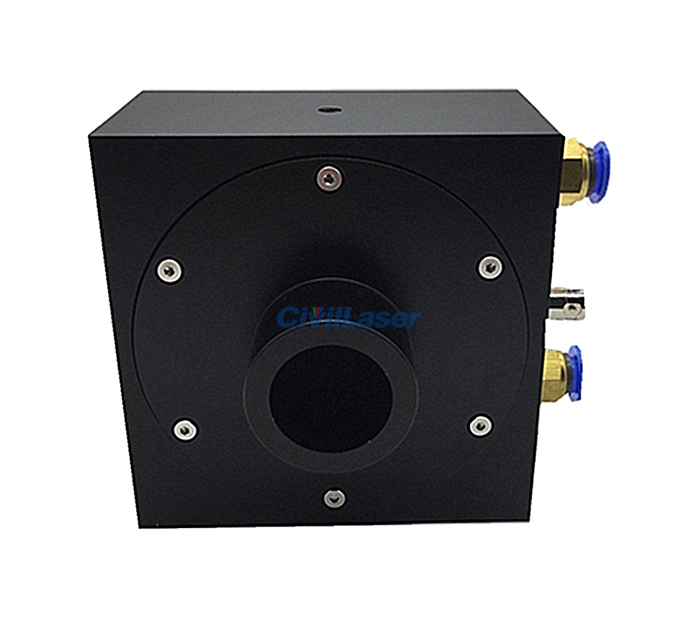

Detector Photosensitive Area Φ28mm
Absorber Flat
Gear Switch 20W, 200W, 300W
Resolution <20W: 10mW
20~200W: 100mW
200~300W: 1W
Measuring Power Range 0.05 ~ 300W
Measurement Uncertainty 5%
Operating Temperature 0 ~ 40 °C
Cooling Mode Water cooling (including water pump pipe)
Power Adapter AC110 ~ 220V, 50HZ
Power Dissipation 3W
Warranty 1 year
