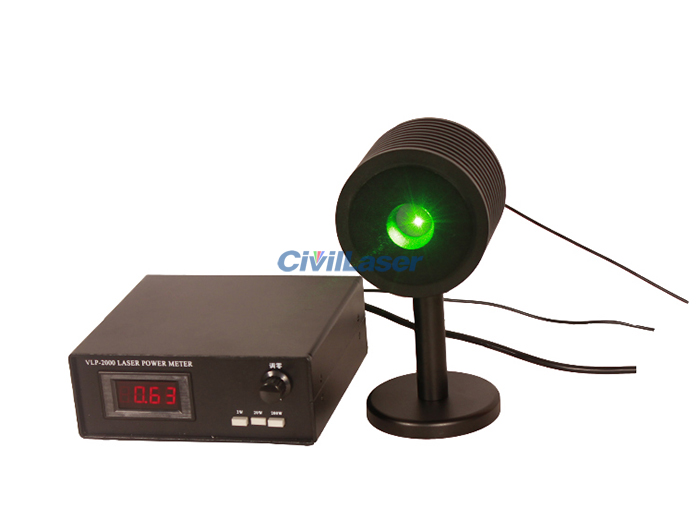

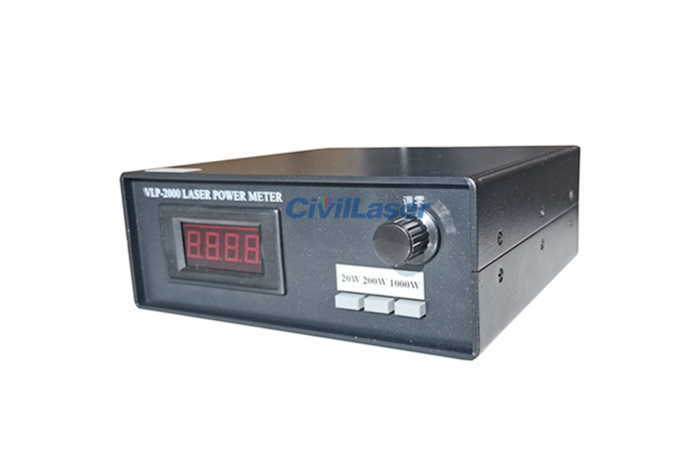

30mW~150W 11nm~19000nm Wide Wavelength Range Laser Power Meter Desktop Type
Our laser power meter has the characteristics of stable operation, accurate measurement, small size and long service life. Based on the calorimetric principle, it not only has the advantages of good optical uniformity, extremely insensitive to the influence of the laser polarization state and incident angle, etc., but also has a relatively high ability to resist laser damage.
Measuring Laser Type:
Fiber laser, semiconductor laser, solid state laser, CO2 laser, CW laser, YAG, helium neon and infrared laser, etc.
[Features]
Spectral range: 11nm~19000nm
Damage threshold: 15KW/cm²

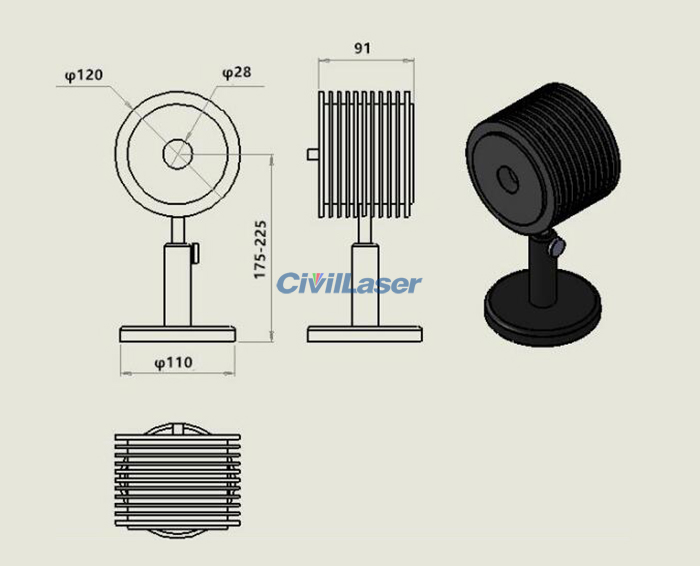

Detection diameter: 28mm
[Specification]
| Parameters |
Value |
| Model |
VLP-T2000-150W |
| Wavelength Range |
11nm~19000nm |
| Resolution |
<2W: 0.001W
2~20W: 0.01W
20~150W: 0.1W |
| The Detector's Receiving Aperture Size |
Φ28mm |
| Probe Type |
Calorimetry |
| Signal Line Length |
1m |
| Measuring Power Range |
30mW~150W |
| Linearity |
±0.5% |
| Measurement Uncertainty |
±5% |
| Operating Temperature |
0 ~ 40 °C |
| Cooling Mode |
Natural convection |
| Power Adapter |
AC110 ~ 220V, 50HZ |
| Power Dissipation |
10W |
| Warranty |
1 year |
