11nm~19000nm 3mW~2000mW CW Laser Power Meter 0.1mW Measurement Accuracy

$660.00

Add to Cart:


11nm~19000nm 3mW~2000mW CW Laser Power Meter 0.1mW Measurement Accuracy

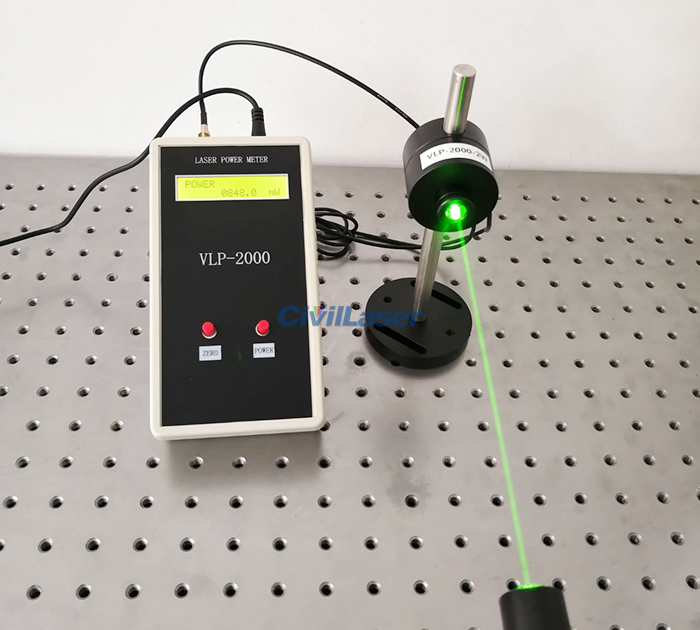

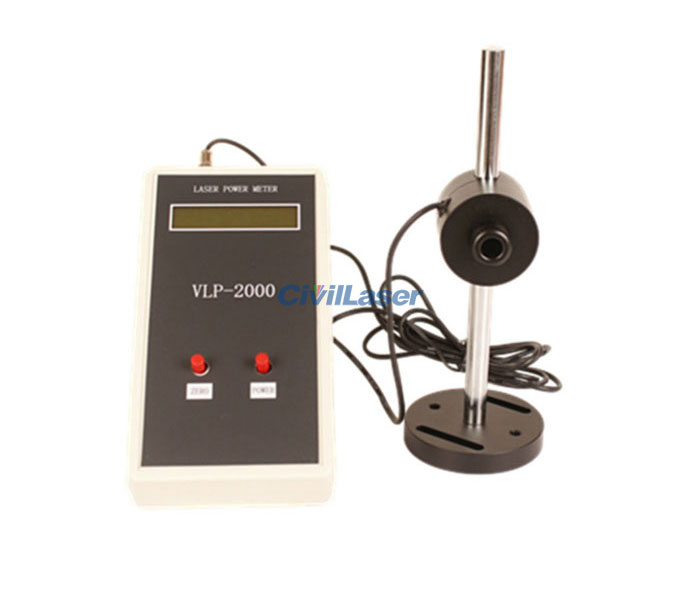

Our laser power meter has the characteristics of stable operation, accurate measurement, small size and long service life. Based on the calorimetric principle, it not only has the advantages of good optical uniformity, extremely insensitive to the influence of the laser polarization state and incident angle, etc., but also has a relatively high ability to resist laser damage.

Measuring Laser Type:
Fiber laser, semiconductor, gas, solid, CO2 laser, CW laser, YAG, helium neon and infrared laser, etc.

[Features]
Wide spectral response range.
Damage threshold: 15KW/cm²
High stability.

[Specification]

Parameters Value
Model VLP-2000-2W
Spectral Response Range 11nm~19000nm
Resolution 0.1mW

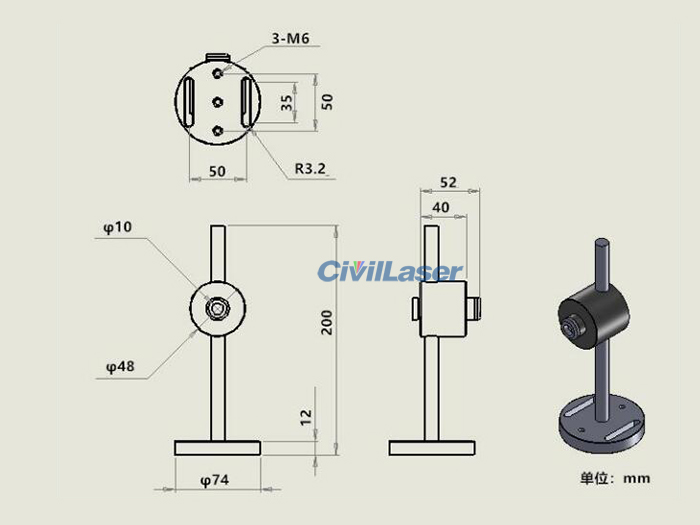

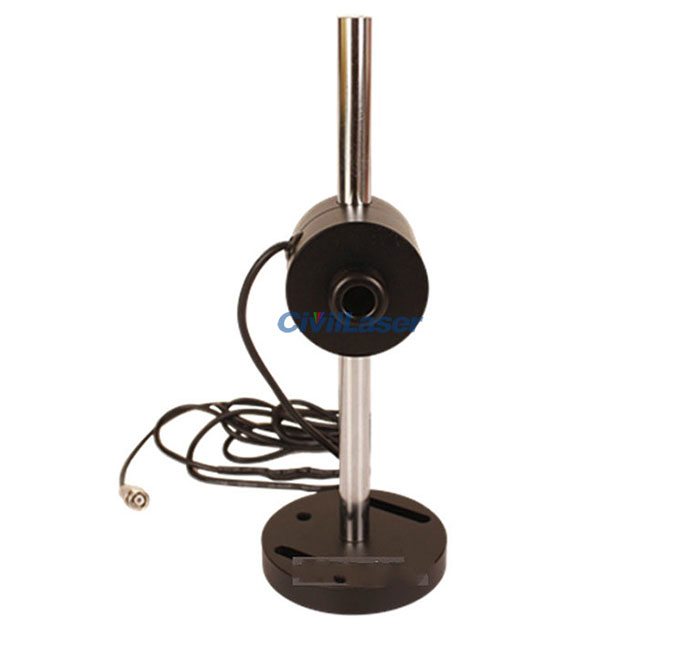

The Detector's Receiving Aperture Size Φ10mm
Probe Type Calorimetry
Signal Line Length 1m
Measuring Power Range 10mW~2000mW
Linear ±0.5%
Measurement Uncertainty ±5%
Operating Temperature 0 ~ 40°C
Cooling Mode Natural convection
Power Adapter AC110 ~ 220V, 50HZ
Power Dissipation 10W
Warranty 1 year
