24° Lens Angle Laser Diode Module Red/Green/Blue Rectangle Laser Module 16*70mm

Starting at: $825.00

Please Choose:



Add to Cart:


24° Lens Angle Laser Diode Module Red/Green/Blue Rectangle Laser Module 16*70mm

[Features]
1. Ultra high brightness, universal in indoor and outdoor.
2. The light is clear and bright, soft and not dazzling.
3. The shell is made of aviation aluminum-plated insulating paint that can not only fully dissipate heat but also resist shock, drop, and static electricity.
4. Imported laser diodes emit light directly with exceptional stability.
5. Intelligent driver board with imported IC, wide range power supply.
6. High temperature resistance, corrosion resistance.

[Specifications]
Product Name: Laser Module

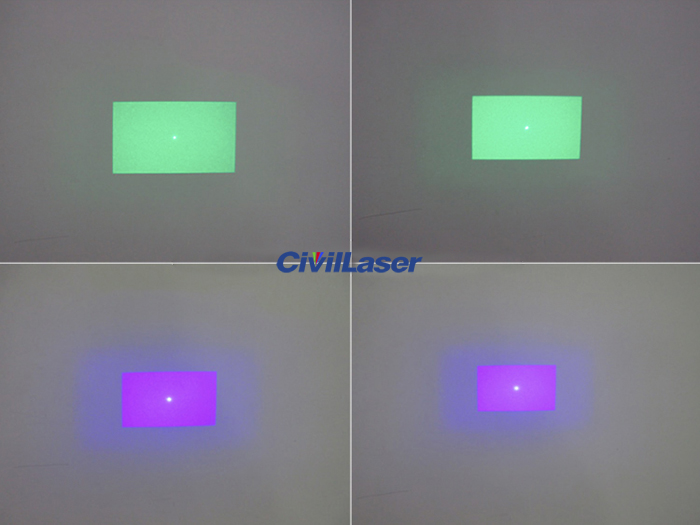

Laser Color: Red / Green / Blue (Choose)
Wavelength: Red 650nm / Green 520nm / Blue 450nm (Choose)
Laser Shape: Rectangle
Power: 100mW
Installation Height: 0~3 meters
Working Voltage: DC 2.8V~5.2V
Working Current: <500mA
Dimensions: 16*70mm
Optical Lens: Grating sheet (imported from Germany)
Lens Angle: 24°

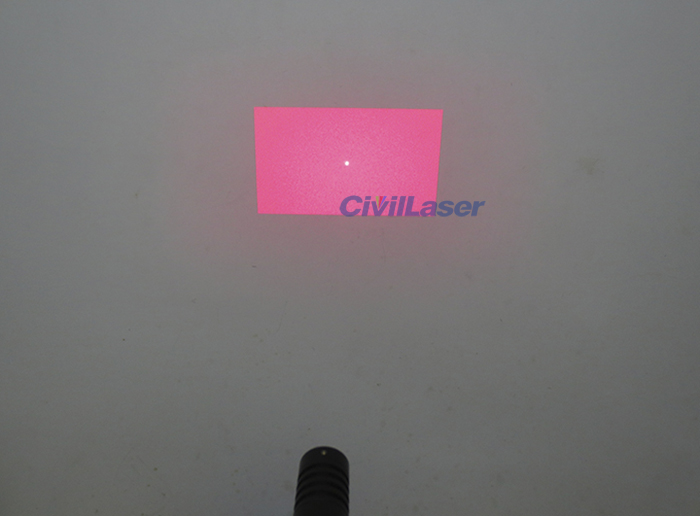

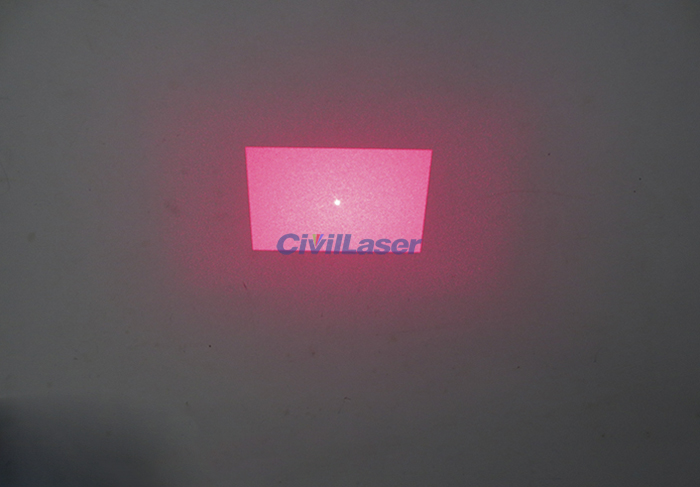

Rectangular Size:
X direction: 24°
At 0.5 m, the length in the X direction is 213 mm.

Y direction: 14°
At 0.5 meters, the length in the Y direction is 123 mm.

[Package Include]
1 x Laser module
1 x Power supply
1 x Laser module holder
