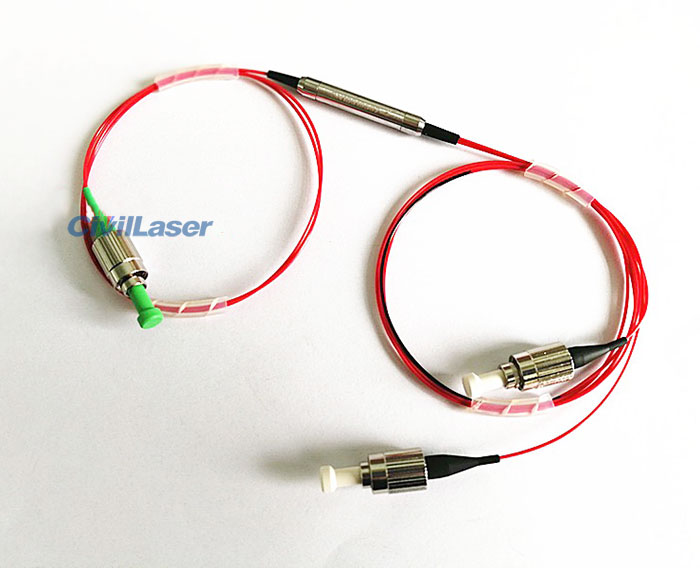

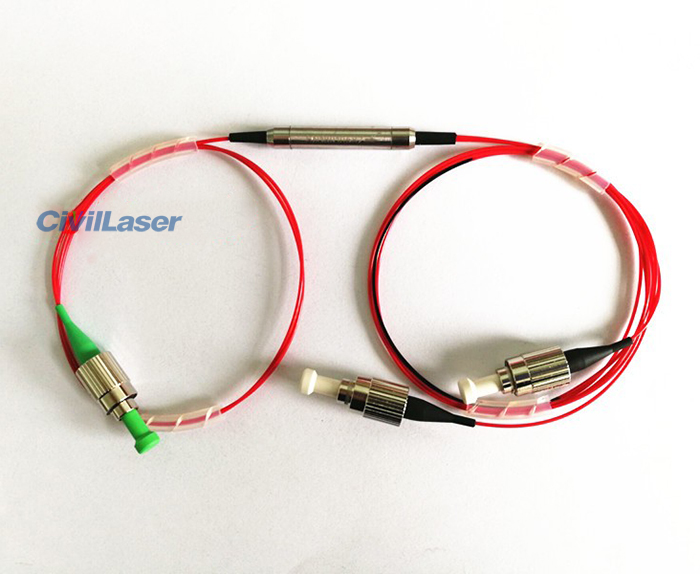

PM1310 PM1550 1x2 PM Fiber Splitter Polarization Beam Splitter FC/UPC
The polarization-maintaining beam splitter can effectively couple 2 orthogonal polarization signal lights to a single fiber output, and can split a single polarization signal light into 2 orthogonal polarization signal lights when used in reverse. It is usually used for combining or splitting pump lasers into erbium-doped fiber amplifiers or Raman fiber amplifiers for power distribution. Both input and output use polarization maintaining fiber.
[Features]
High extinction ratio
Low insertion loss
High directionality
[Applications]
PM dispersion compensation
EDFA or Raman fiber amplifier
Optical communication system
Fiber Optic Sensor
[Specification]
| Parameters |
Unit |
Class P |
Class A |
| Center Wavelength |
nm |
1310 / 1550 (Choose) |
| Bandwidth |
nm |
±40 |
| Typical Insertion Loss |
dB |
0.40 |
0.50 |
| Max.Insertion Loss |
dB |
0.60 |
0.70 |
| Min.Return Loss |
dB |
50 |
| Min.Extinction Ratio |
dB |
22 |
20 |
| Min.Directivity |
dB |
50 |
| Max.Optical Power (CW) |
mW |
500 |
| Max. Tensile Load |
N |
5 |
| Pigtail Type |
|
Panda type PM fiber |
| Operating Temperature |
℃ |
-5 ~ +70 |
| Storage Temperature |
℃ |
-45 ~ +85 |

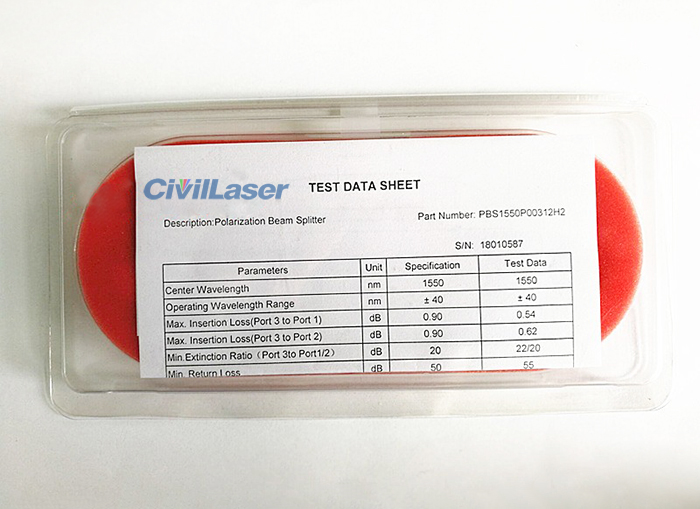

Test Data Sheet of 1550nm Polarization Beam Splitter：
| Parameters |
Unit |
Specification |
Test Data |
| Center Wavelength |
nm |
1550 |
1550 |
| Bandwidth |
nm |
±40 |
±40 |
| Max.Insertion Loss (Port 3 to Port 1) |
dB |
0.90 |
0.54 |
| Max.Insertion Loss (Port 3 to Port 2) |
dB |
0.90 |
0.62 |
| Min.Extinction Ratio (Port 3 to Port 1/2) |
dB |
20 |
22/20 |
| Min.Return Loss |
dB |
50 |
55 |
| Min.Directivity |
dB |
50 |
54 |
| Axis Alignment |
|
Slow axis Align to Port 1 |
| Fiber Type |
|
PM1550 |
| Pigtail Type |
|
900μm loose tube (red) |
| Connector Type |
|
Port 3: FC/APC, Port 1/2: FC-UPC |
| Fiber Length |
m |
1.0 |
| Max.Optical Power (CW) |
mW |
300 |
| Max. Tensile Load |
N |
5 |
| Operating Temperature |
℃ |
-5 ~ +70 |
| Storage Temperature |
℃ |
-45 ~ +85 |

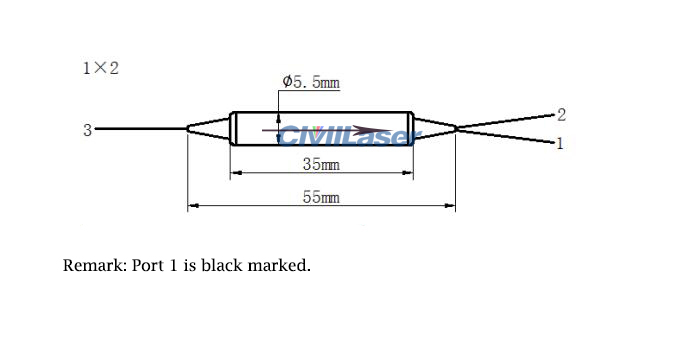

| Dimensions |
mm |
Φ5.5 x L35 |
