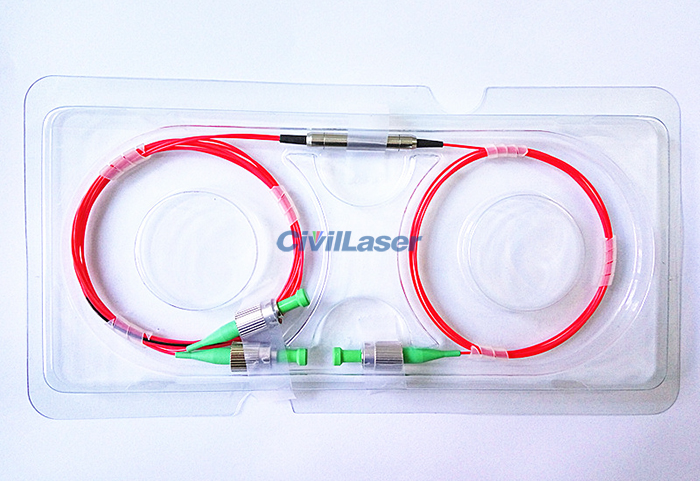

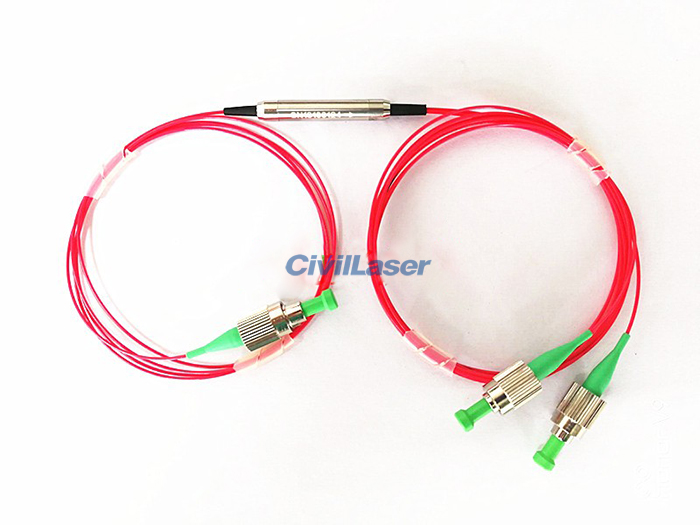

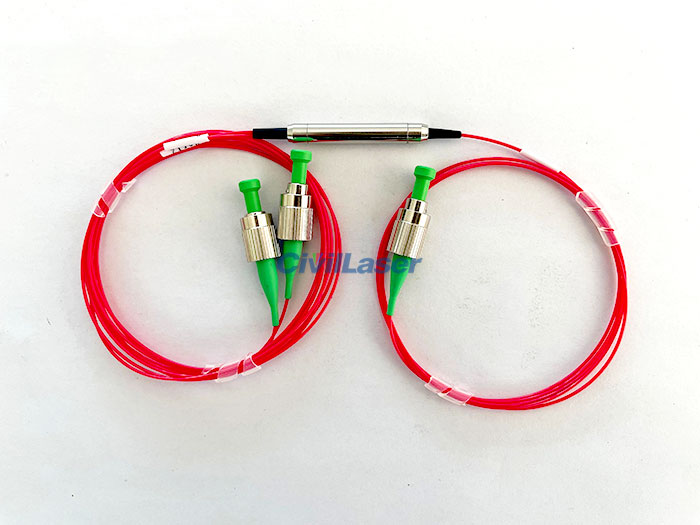

980/1060nm WDM 1X2 PM Fiber Wavelength Division Multiplexer FC/APC Slow Axis is Aligned with K Key
The polarization-maintaining wavelength division multiplexer is a device that couples optical signals of different wavelengths into a fiber. The most common application is to couple the pump light signal and the polarization signal light into a fiber. Therefore, in the polarization-maintaining fiber Amplifiers and polarization-maintaining fiber lasers are essential components.
[Features]
High isolation
High return loss
Low insertion loss
Good environmental stability
[Applications]
Optical fiber communication equipment
Raman amplifier
EDFA
Fiber Optic Sensor

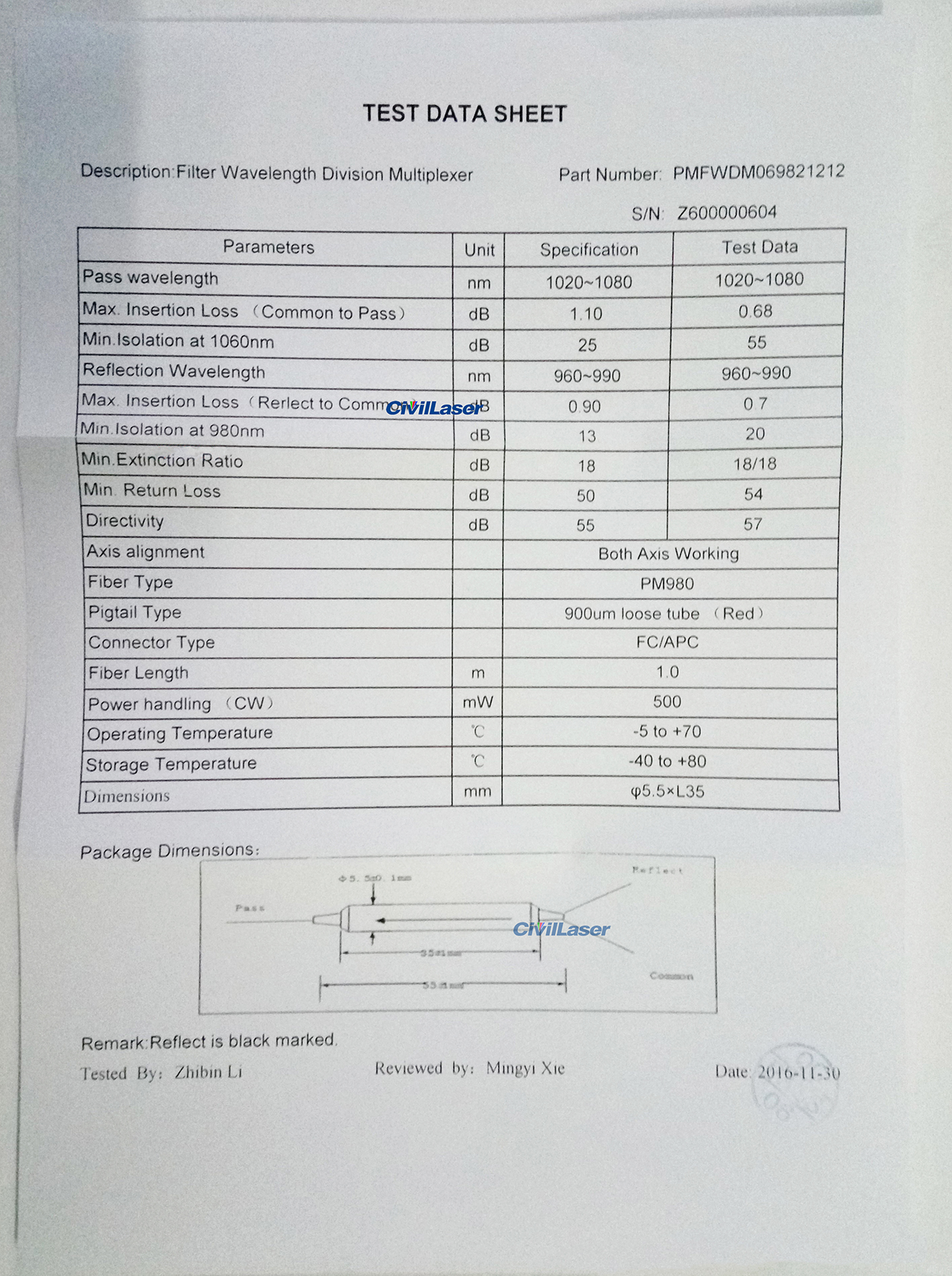

Test Data Sheet:
| Parameters |
Unit |
Specification |
Test Data |
| Pass Wavelength |
nm |
1020~1080 |
1020~1080 |
| Max.Insertion Loss (Common to Pass) |
dB |
1.10 |
0.68 |
| Min.Isolation at 1060nm |
dB |
25 |
55 |
| Reflection Wavelength |
nm |
960~990 |
960~990 |
| Max.Insertion Loss (Reflect to Common) |
dB |
0.90 |
0.7 |
| Min.Isolation at 980nm |
dB |
13 |
20 |
| Min.Extinction Ratio |
dB |
18 |
18/18 |
| Min.Return Loss |
dB |
50 |
54 |
| Directivity |
dB |
55 |
57 |
| Axis Alignment |
|
Both axis working |
| Fiber Type |
|
PM980 |
| Pigtail Type |
|
900μm loose tube (red) |
| Connector Type |
|

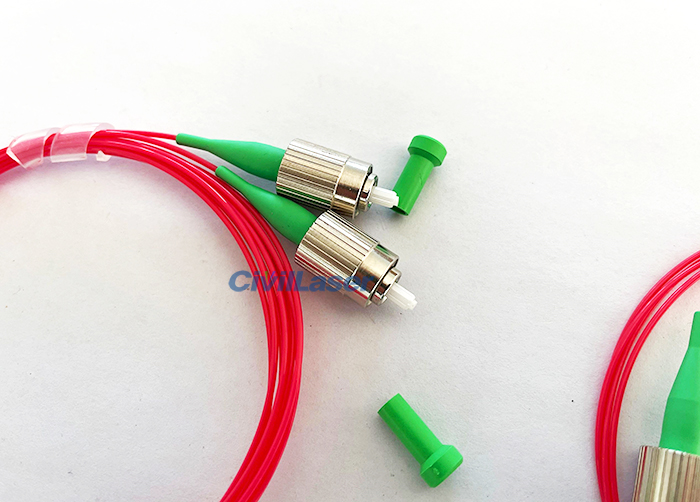

FC/APC |
| Fiber Length |
m |
1.0 |
| Power Handing (CW) |
mW |
500 |
| Operating Temperature |
℃ |
-5 ~ +70 |
| Storage Temperature |
℃ |
-45 ~ +85 |
| Dimensions |
mm |
Φ5.5 x L35 |
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
