Parallel Laser Red Light Collimator Long-distance Locator Perfect Circle Spot Multiple Beam Diameters Optional Customizable

The front end adopts a glass lens group to produce a perfect round spot, which has the characteristics of small beam divergence, high parallelism, and uniform brightness. The wavelength, output power, wire length, working distance, spot effect, etc. can all be customized according to requirements.

[Features]

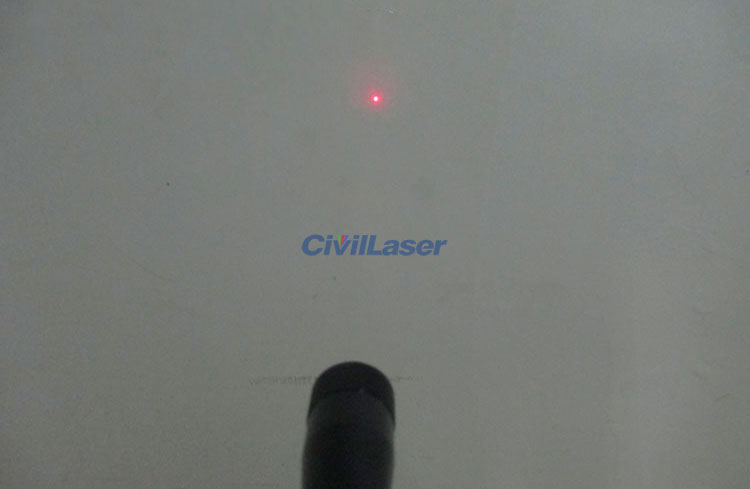

1. The light spot is clear and bright, and it is soft and not dazzling.
2. The new imported tube core can be opened 24 hours a day.
3. Intelligent driver board with imported IC, can supply power in a wide range of 2.8-5.2V, other voltages can be customized.
4. The inside is filled with heat-dissipating silica gel and AB glue, which can not only dissipate heat fully, but also shock and drop.
5. The shell is made of aviation aluminum-plated insulating paint, which can not only dissipate heat sufficiently, but also is shock-proof, anti-drop and anti-static.
6. High temperature resistant and corrosion resistant wire, suitable for all-weather and all-environment use.

[Specification]

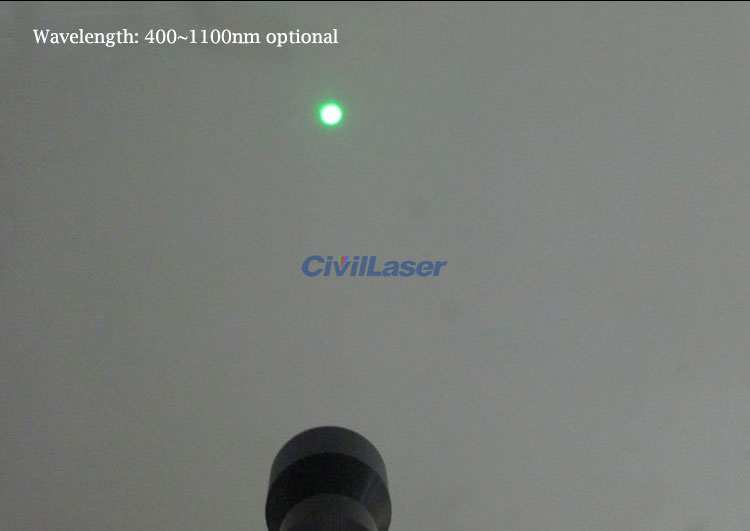

Wavelength: 650nm  (400nm~1100nm Customizable)

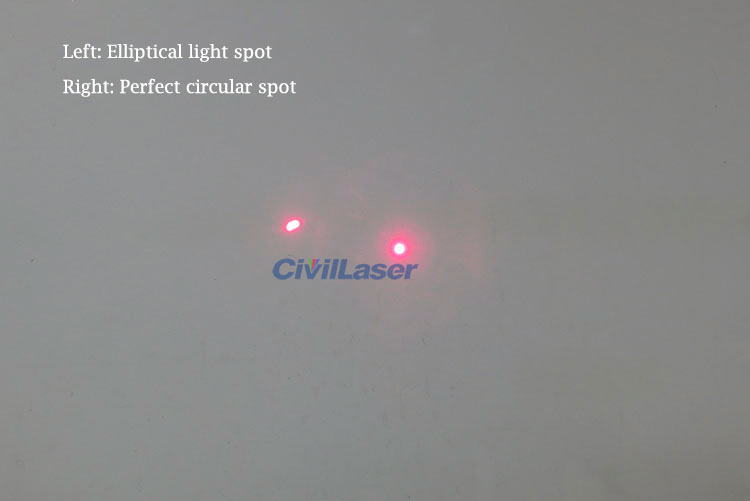

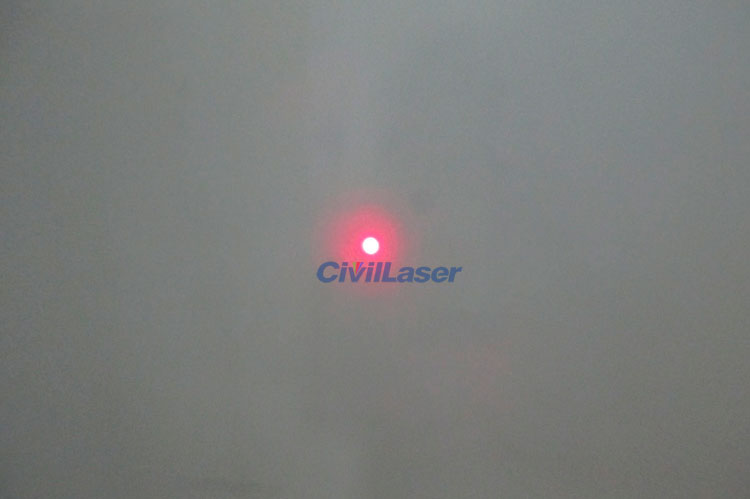

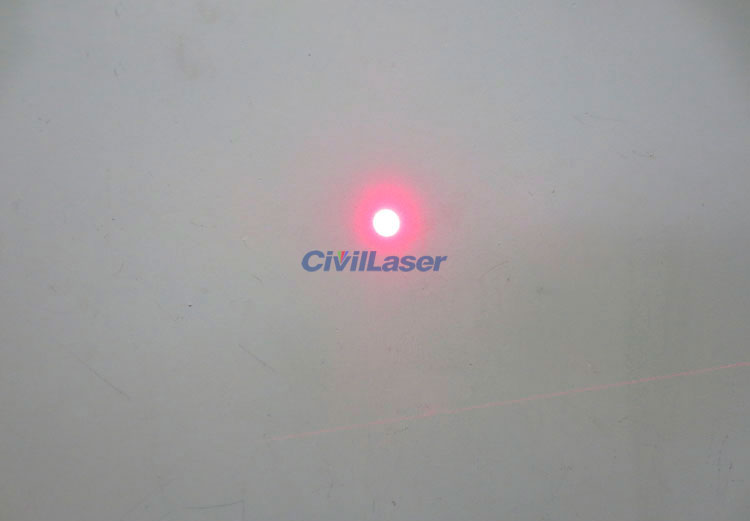

Spot Mode: Perfect circle spot
Beam Divergence Angle: 0.02mrad
Optical Lens: Optical coated glass lens group
Working Voltage: DC 2.8-5.2V
Working Current: ≤500mA

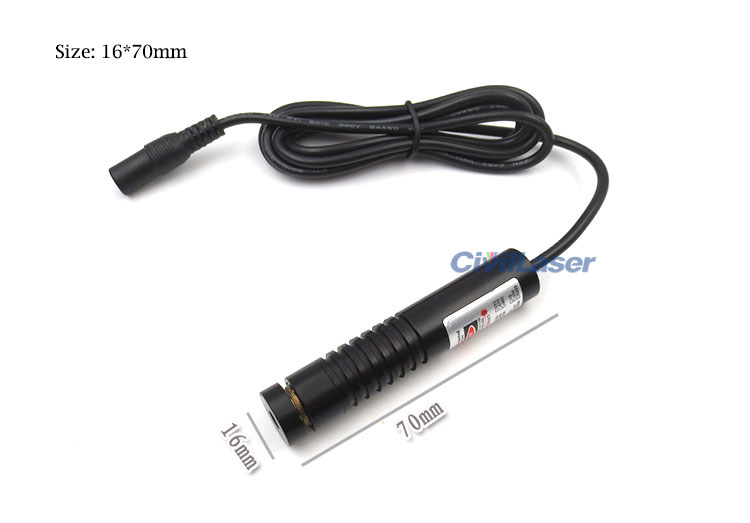

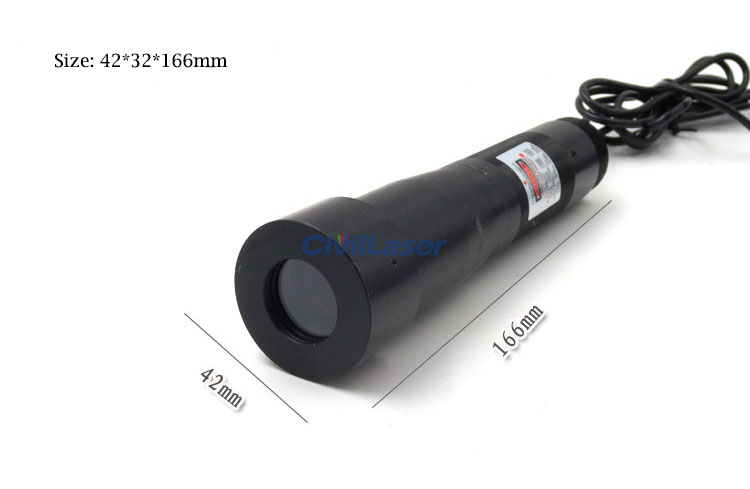

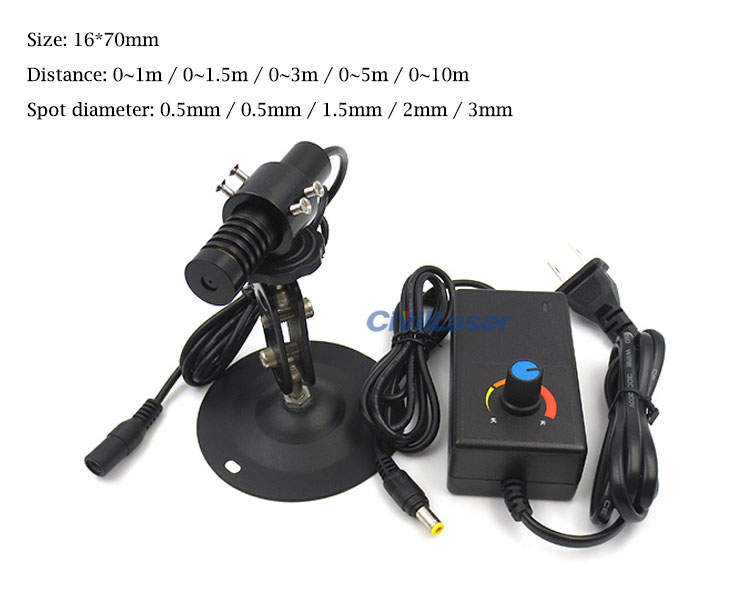

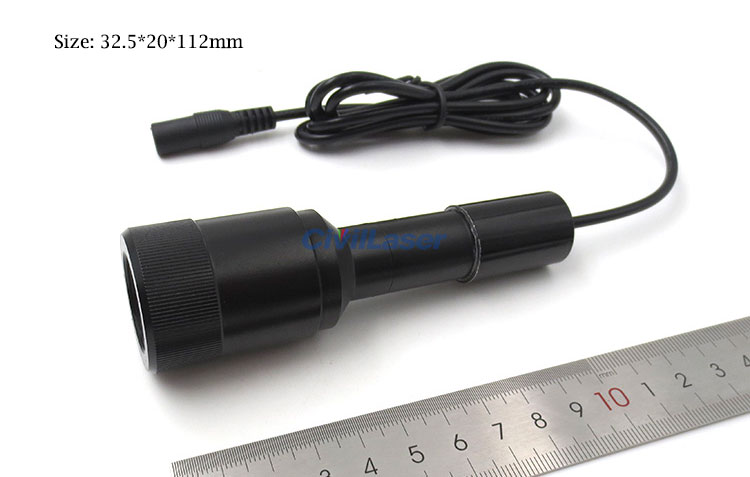

Size: 16*70mm / 16*58mm / 16*82mm / 22*90mm / 32.5*20*112mm / 42*32*166mm / 43*31*138mm / 45.2*24*172mm (Refer to below pictures)
Parallel Beam Diameter: 0.5mm/0.8mm/1.5mm/2mm/3mm/4mm/5mm/10mm/20mm/22mm/30mm/40mm (Choose)

Note:
Spot size description:
0.5mm (0~1M): At a distance of 0-1m, the spot diameter remains unchanged at 0.5mm.
0.8mm (0~1.5M): At a distance of 0-1.5m, the spot diameter remains unchanged at 0.8mm.
1.5mm (0~3M):At a distance of 0-3m, the spot diameter remains unchanged at 1.5mm.
2mm (0~5M): At a distance of 0-5m, the spot diameter remains unchanged at 2mm.
3mm (0~10M): At a distance of 0-10m, the spot diameter remains unchanged at 3mm.

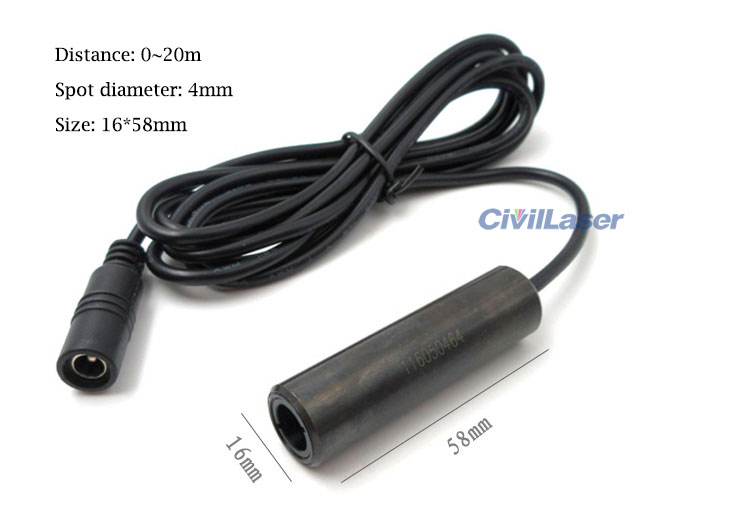

4mm (0~20M): At a distance of 0-20m, the spot diameter remains unchanged at 4mm.

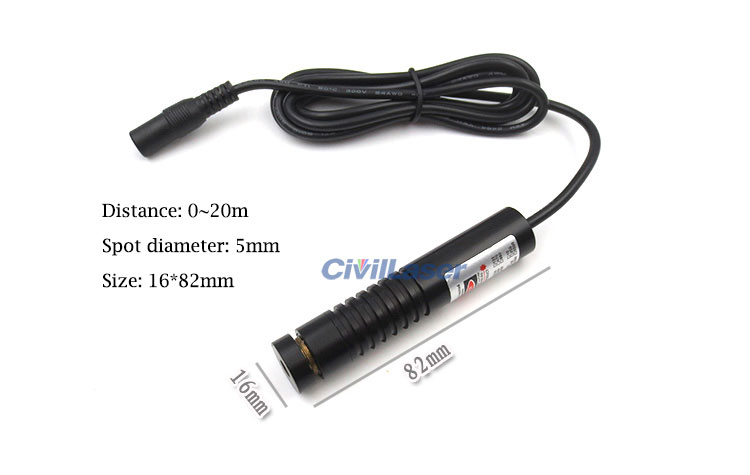

5mm (0~20M): At a distance of 0-20m, the spot diameter remains unchanged at 5mm.

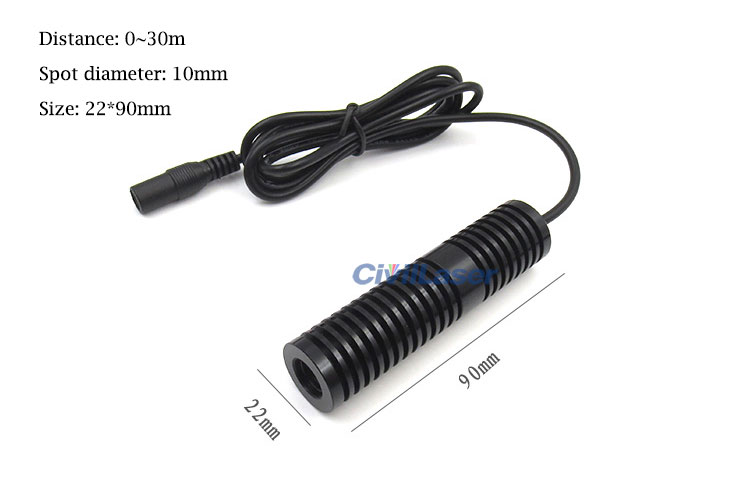

10mm (0~30M): At a distance of 0-30m, the spot diameter remains unchanged at 10mm.

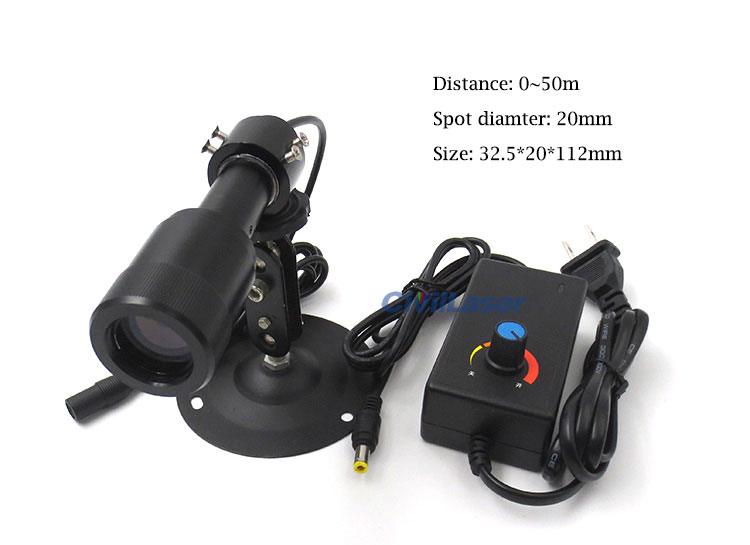

20mm (0~50M): At a distance of 0-50m, the spot diameter remains unchanged at 20mm.

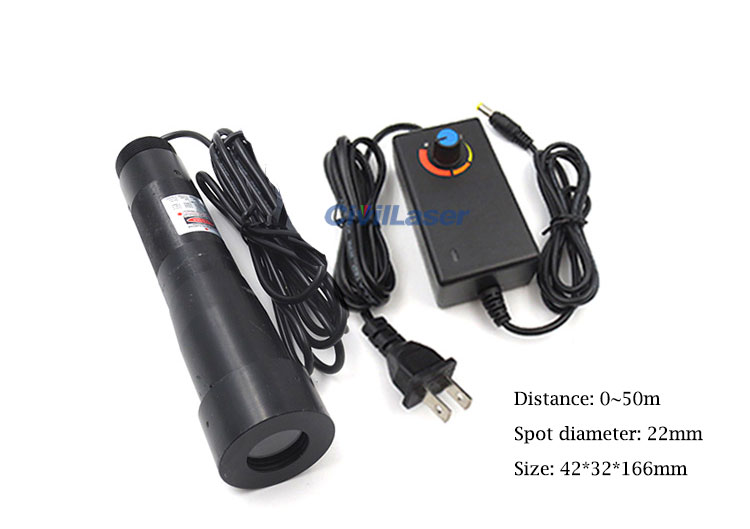

22mm (0~50M): At a distance of 0-50m, the spot diameter remains unchanged at 22mm.

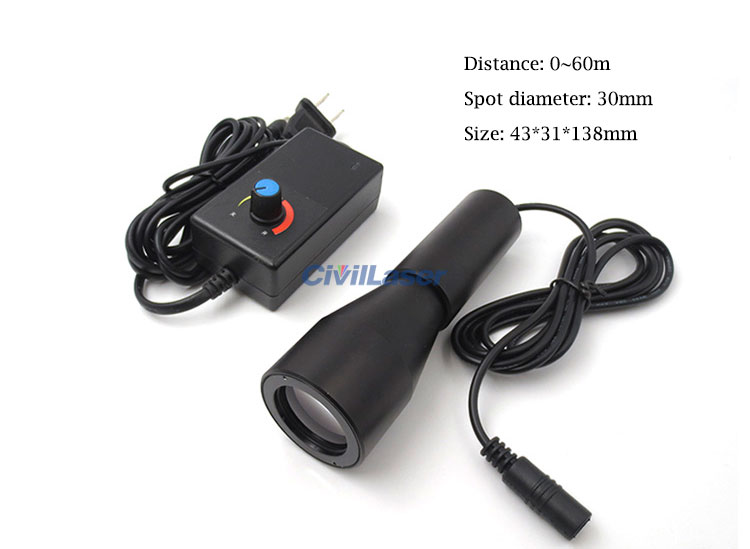

30mm (0~60M): At a distance of 0-60m, the spot diameter remains unchanged at 30mm.

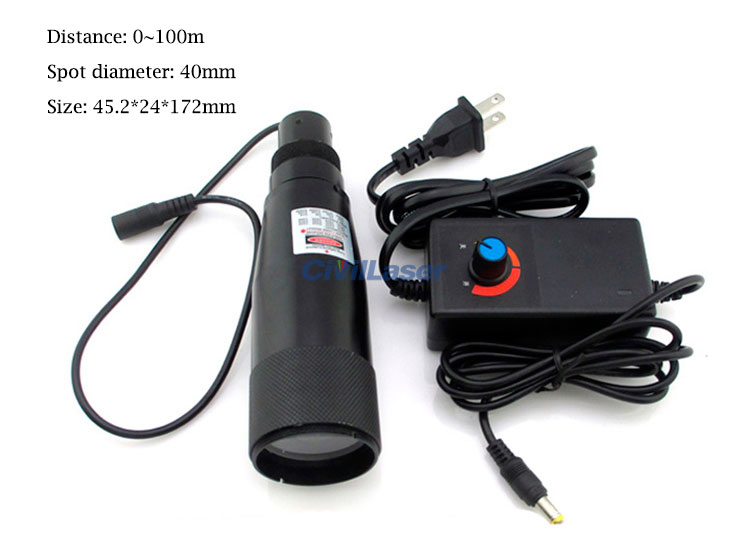

40mm (0~100M): At a distance of 0-100m, the spot diameter remains unchanged at 40mm.
