Mini EDFA Module C-Band 17dBm 50mW Erbium-doped Fiber Amplifier Micro type EDFA-C-BA-17-SM-M10/M15-2 45x65x10mm
The Erbium-doped Fiber Power Amplifier Micro Module can be used to amplify the power of laser signals in the wavelength range of 1530~1565nm. It also adopts a unique miniaturized packaging design, with the advantages of high gain, low noise and small size, making it very suitable for use in confined spaces.
[Features]
Wide wavelength range
Small size
Low power consumption
[Applications]
Optical Fiber Communication
Fiber optic sensing
Fiber laser
[Specifications]
|
Parameters
|
Unit
|
Typical value
|
Remarks
|
|
Model
|
-- |
EDFA-C-BA-17-SM-M10/M15-2 |
Choose |
|
Wavelength Range
|
nm |
1530~1565 |
C Band |
|
Input Power
|
dBm |
-6~+3 |
|
|
Saturated Output Power
|
dBm |
17 |
@-3dBm input |
|
Noise Index
|
dB |
5.0 |
@-3dBm input |
|
Polarization Dependent Gain
|
dB |
≤0.3 |
|
|
Polarization Mode Dispersion
|
ps |
0.5 |
|
|
Input/Output isolation
|
dB |
>35 |
|
|
Optical Power Monitoring
|
-- |
Iutput optical power monitoring;
Output optical power monitoring |
Iutput power monitoring only for M10 |
|
Pigtail Fiber Type
|
-- |
SMF-28 single-mode fiber |
|
|
Fiber Interface Type
|
-- |
FC/APC |
|
|
Working Mode
|
-- |
M10: ACC / APC / AGC
M15-2: ACC / APC
|
*Note 1 |
|
Electrical and environmental parameters
|
Module Type
|
|
Control method
|
M10: RS232 serial communication
M15-2: RS232/TTL serial communication
|
|
Communication interface
|
ZH1.5-6 Pin port for M10
ZH2.54- 4 Pin Pin port for M15-2
|
|
Power supply
|
DC 5V
|
|
Size
|
M10：45(W)×60(D)×10(H)mm
M15-2: 50(W)×50(D)×15(H)mm
|
|
Operating temperature range
|
-5~+35°C
|
|
Operating humidity range
|
0~70%
|
*Note1:
ACC mode - automatic current control: The EDFA pumping operating current is set by the user and automatically locked by the EDFA to achieve a constant pumping current. When the input optical power fluctuates, the output power will also fluctuate accordingly, which is suitable for all EDFA models.
APC mode - automatic power control: The signal light output power of the EDFA is set by the user, the PD automatically monitors and feeds back the output power, the EDFA control and the adaptive adjustment pump achieve the stability of the output signal. When the input optical power fluctuates, the APC mode minimizes the fluctuation of the output power and is suitable for power type and line type EDFA.

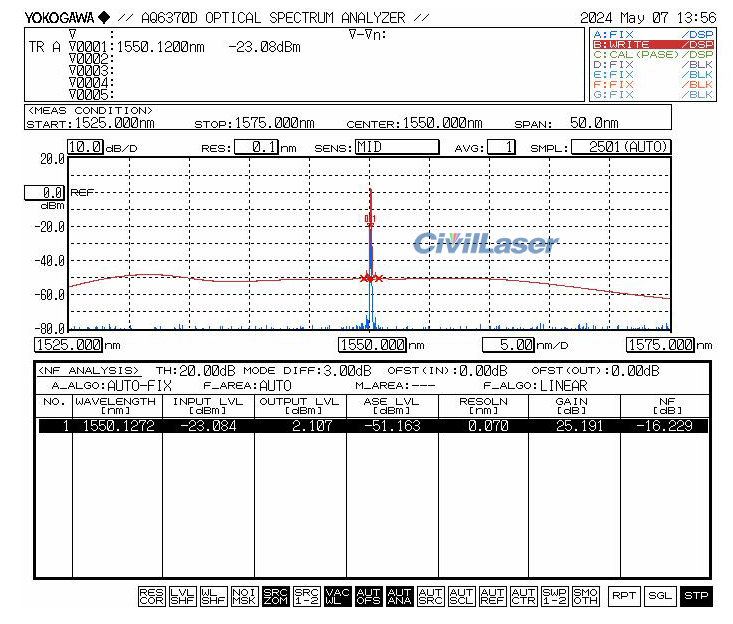

.jpg)

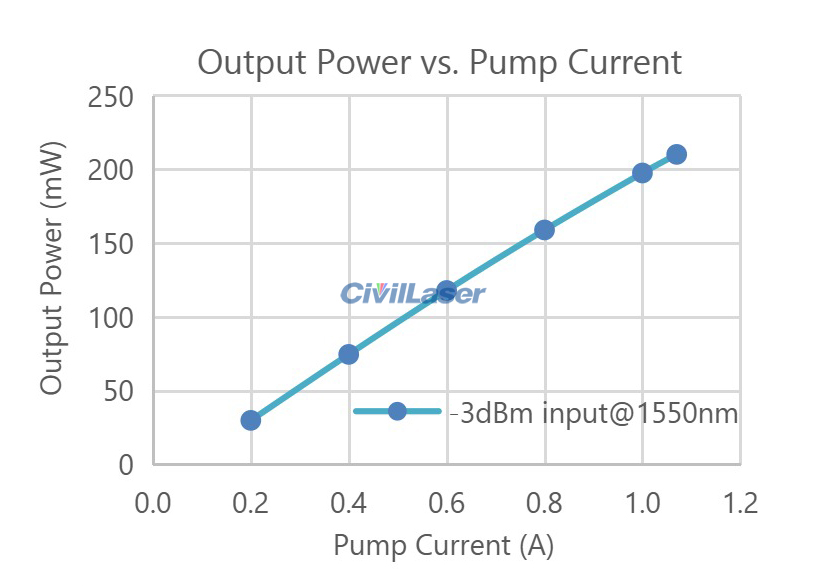

.jpg)
M10 Latest Product Images:
.jpg)
.jpg)
M15-2 Latest Product Images:
.jpg)
.jpg)
.jpg)
