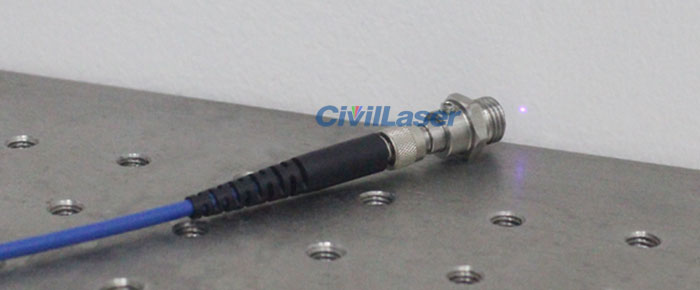

SMA905 Fiber Focusing Lens Fiber Collimator Focus Adjustable Optical Lens
[Features]
1. The use of SMA905 connector fiber can facilitate the focus adjustment.

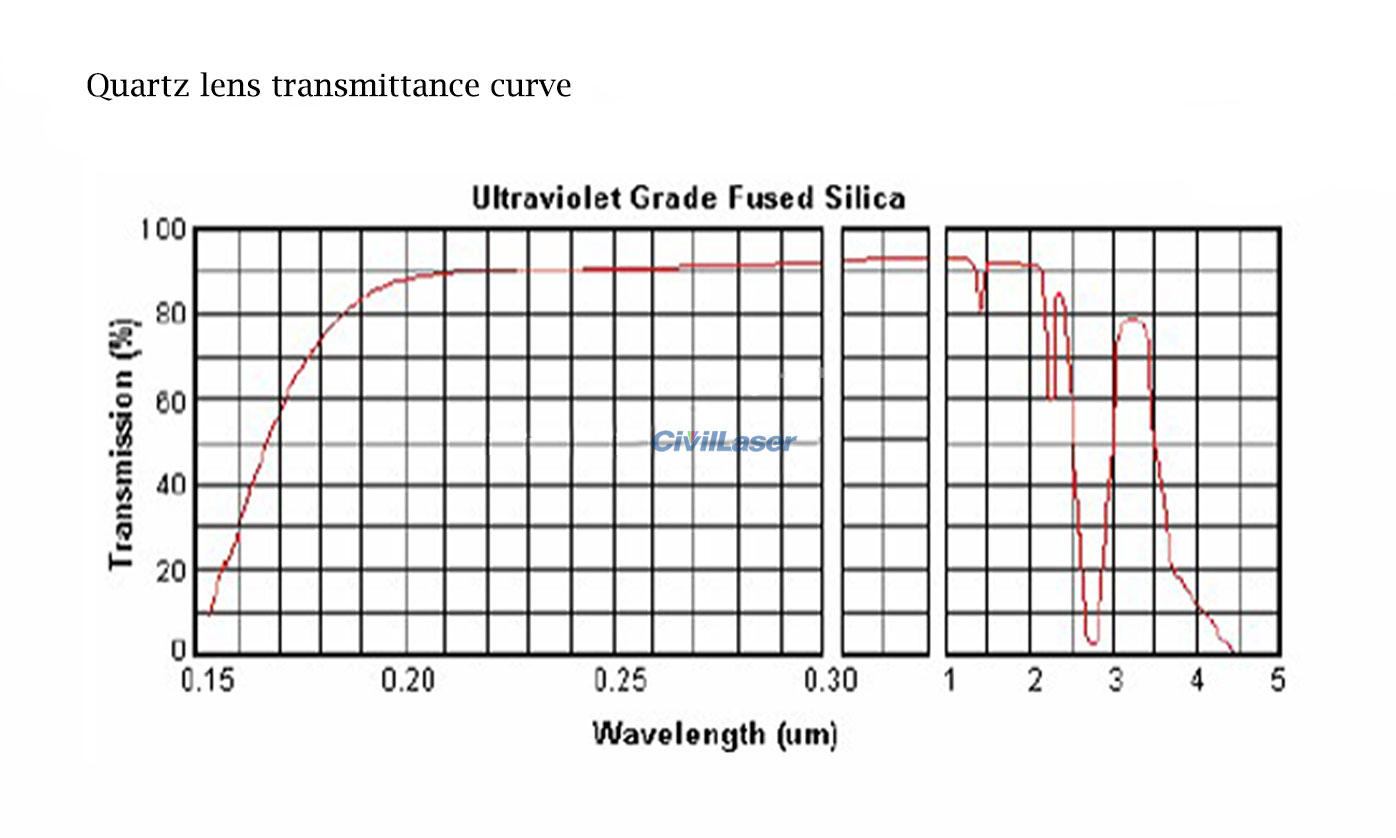

2. The wavelength of this product is: the quartz lens in the range of 200nm-2500nm.
[Specification]
| Parameter |
Unit |
74X-UV-BX |
| Lens to Fiber End Face Distance |
mm |
9.00 (adjustable ±3mm) |
| Lens to Sink Focus Distance |
mm |
9.00 (adjustable ±3mm) |
| Lens Material |
|
Ultraviolet rock fused quartz |
| Use Wavelength |
nm |
185~2500 |

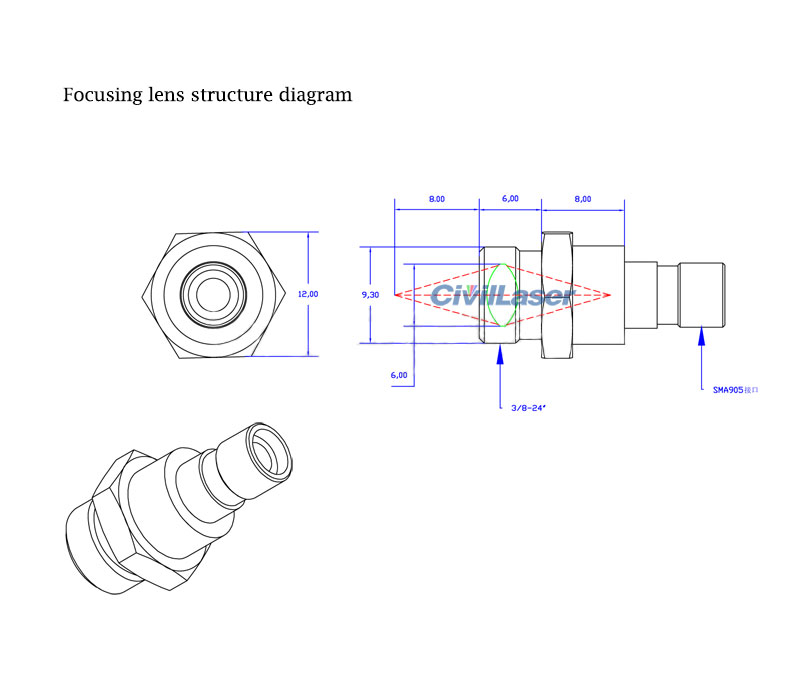

| Outer Diameter |
mm |
φ 13.8 x 24 |
| Lens Diameter |
mm |
6 |
| Interface |
SMA905 |
SMA905 |
| Compatible Aperture |
|
0.22~0.37NA |
| Shell Material |
|
Stainless steel |
| Operating Temperature |
℃ |
-20~150°C No condensation |
| Fixed Way |
|
3/8-24 external thread |

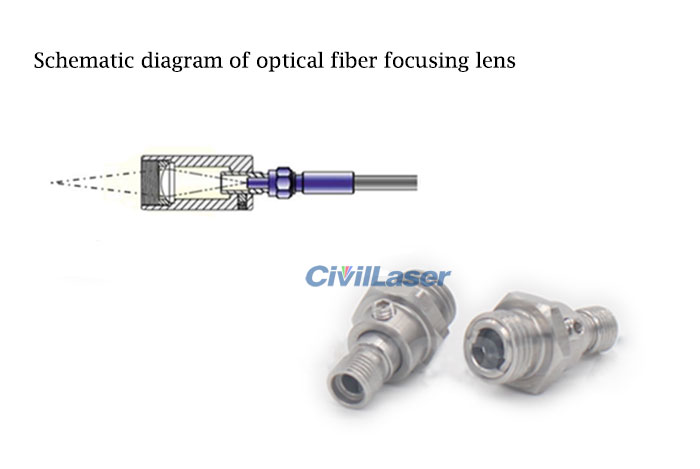

The role of fiber optic focusing lens in the optical path:
1. The optical fiber focusing lens can reconverge the astigmatic light from the optical fiber to one point;
2. The point light source can be coupled to the optical fiber (only multimode optical fiber ≥100um).
