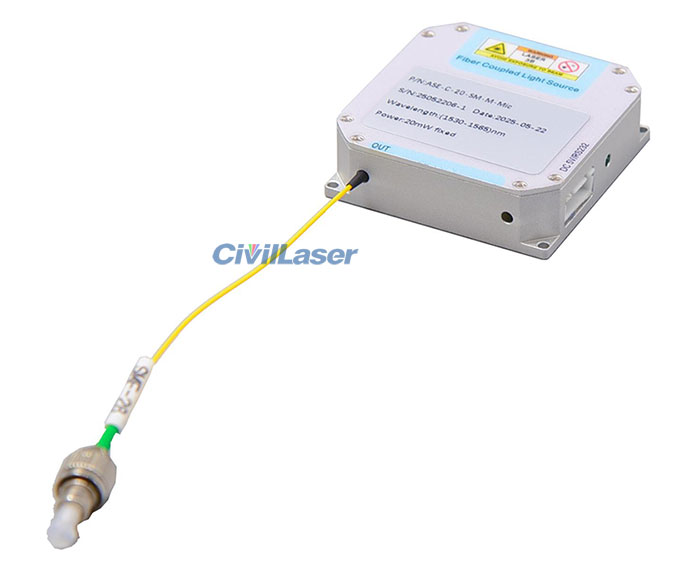

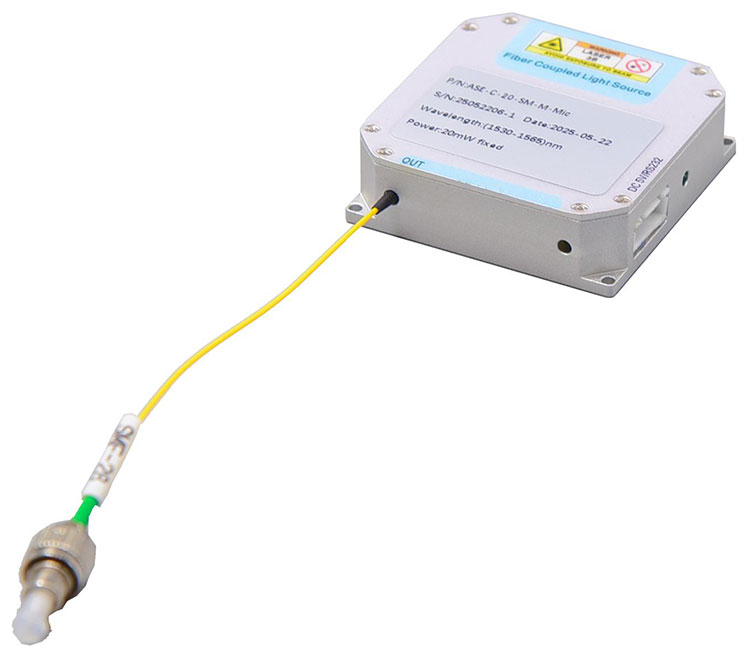

SM C-band 50mW ASE Broadband Light Source in Micro Format Single-mode Fiber Laser Module ASE-C-50-SM-M-MIC
The output spectrum of this light source module covers the C band, the spectrum is flat, and the optical power reaches 10~50mW. At the same time, due to the unique miniaturized design and micro packaging, the size is only 50×50×15mm, which is very suitable for applications in limited space.
[Features]
Wide spectrum and spectrally flat
Ultra-small size
Highly stable output power
[Applications]
Fiber optic sensing
Medical imaging
Production testing
[Specification]
|
Parameters
|
Unit
|
Typical value
|
Remarks
|
|
Model
|
--
|
ASE-C-50-SM-M-MIC
|
|
|
Spectral Range
|
nm
|
1528~1568
|
C-band
|
|
Ouput Power
|
mW
|
50
|
Fixed power
|
|
Spectral Power Density
|
dBm/nm
|
1
|
|
|
Spectral Flatness
|
dB
|
≤ 2
|
|
|
Output Isolation
|
dB
|
>35
|
|
|
Short-term Stability (15 minutes)
|
dB
|
≤ ±0.02
|
Equivalent≤±0.5%
|
|
Long-term Stability (8 hours)
|
dB
|
≤ ±0.05
|
Equivalent≤±1.2%
|
|
Polarization Extinction Ratio
|
dB
|
≤ 0.2
|
|
|
Pigtail Type
|
--
|
SMF-28 Single mode fiber
|
Φ=2mm loose tube, L=1m
|
|
Pigtail Connector Type
|
--
|
FC/APC
|
|
|
Electrical and Environmental Parameters
|
Module Type
|
|
Control Method
|
RS232 or TTL serial communication
|
|
Communication Interface
|
ZH2.54- 4 PIN, PIN1~4: +5V/GND/TX/RX
|
|
Power Supply
|
5V DC, <10W
|
|

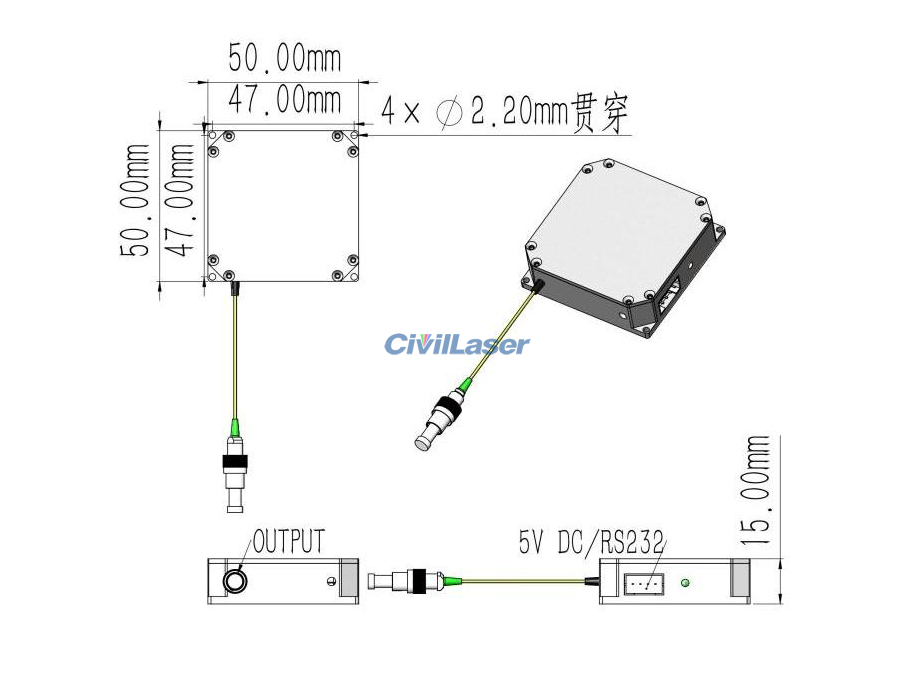

Size
|
50(W)×50(D)×15(H)mm
|
|
Operating Temperature Range
|
-5~+35°C
|
|
Operating Humidity Range
|
0~70%
|
