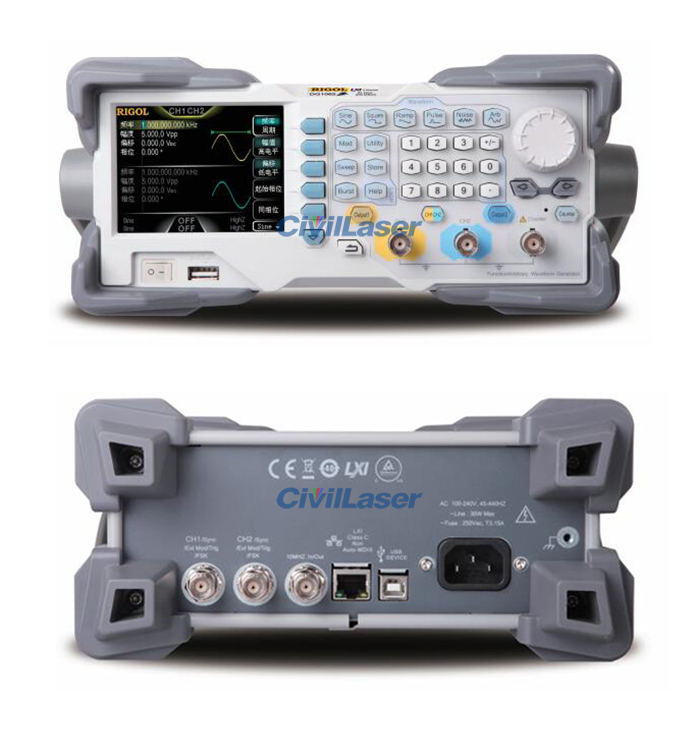

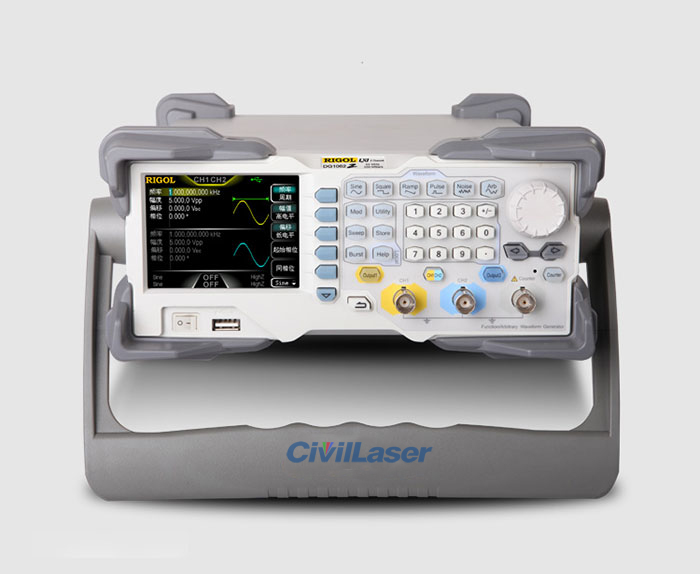

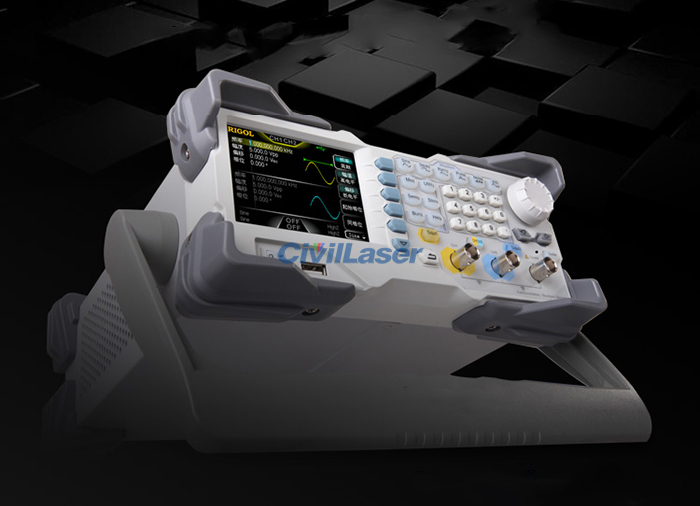

30MHz/60MHz Double Channel Arbitrary Waveform Generator Square Wave Pulse Signal Source
[Features]
1. Maximum output frequency (sine wave): 30MHz and 60MHz

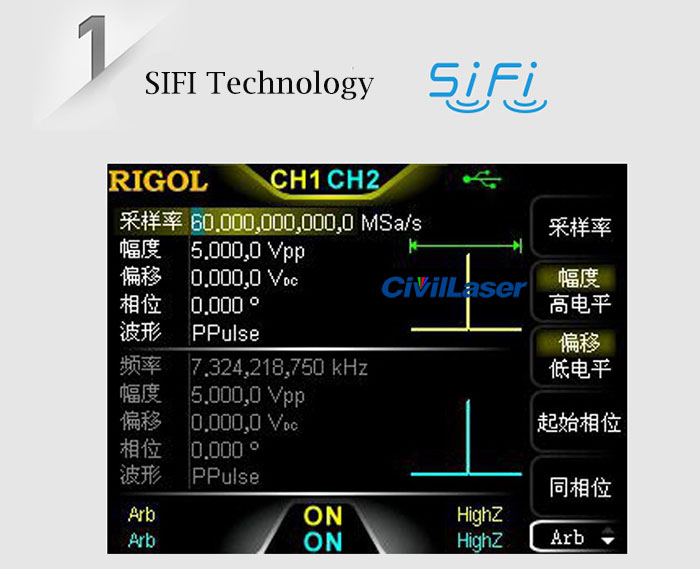

2. Original SiFi (Signal Fidelity): Generate arbitrary waveforms point by point, restore signals without distortion, accurately adjustable sampling rate, and jitter as low as 200ps for all output waveforms (including square waves, pulses, etc.)
3. Arbitrary waveform storage depth per channel: 2M points (standard), 8M points (standard), 16M points (optional).
4. ±1ppm high frequency stability, phase noise as low as -125dBc/Hz.
5. Built-in 8th harmonic generator function.
6. Built-in 7digits/s, full-featured frequency counter with 200MHz bandwidth.

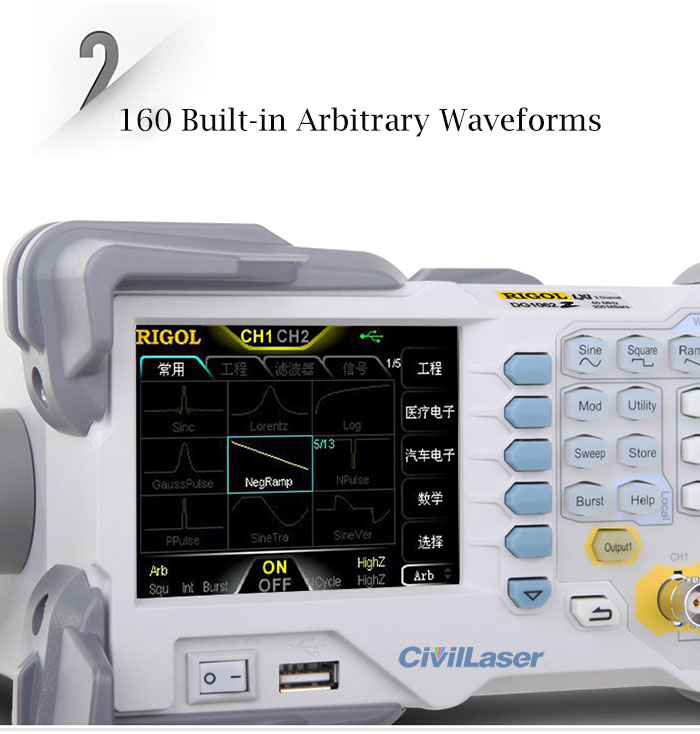

7. As many as 160 built-in arbitrary waveforms, covering common signals in various fields such as engineering applications, medical electronics, automotive electronics, and mathematical processing.
8. Maximum sampling rate: 200MSa/s; vertical resolution: 14bits
9. Standard configuration of powerful arbitrary waveform editing functions, arbitrary waveforms can also be generated through the host computer software.

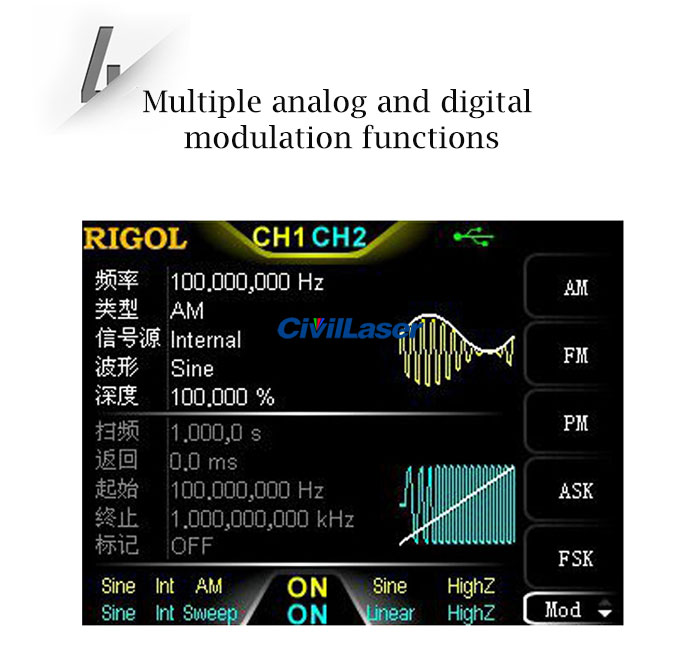

10. Multi modulation functions: AM, FM, PM, ASK, FSK, PSK and PWM.
11. Standard waveform superimposition function, can superimpose the specified waveform on the basis of the basic waveform and output.
11. Standard channel tracking function, when tracking is turned on, all parameters of the dual channels can be updated according to the user's configuration at the same time.
12. Standard configuration interface: USB Host, USB Device, LAN (LXI Core 2011 Device).
13. 3.5-inch (320*240 pixels) color display.
[Specification]
Product Name: Signal transmitter
Model: DG1032Z / DG1062Z (Choose)
Maximum Output Frequency: DG1032Z-30MHz / DG1062Z-60MHz (Choose)
Supply Voltage: 100V~240V(45Hz~440Hz)
Power Consumption: <40W
Working Temperature: 0℃~+50℃
Storage Temperature: -40℃~+70℃
Interface: USB Host, USB Device, LAN
IP Protection: IP2X

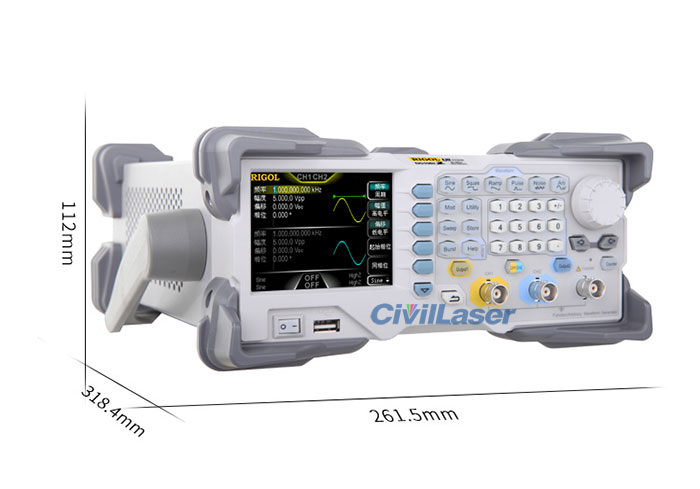

Size: 261.5mm×112mm×318.4mm
| Model |
DG1062Z |
DG1032Z |
DG1022Z |
| Channel |
2 |
| Maximum Output Frequency |
60MHz |
30MHz |
25MHz |
| Sampling Rate |
200Msa/s |
| Waveform |
Basic waveforms: sine wave, square wave, sawtooth wave, pulse, noise wave, harmonic (up to 8th harmonic)
Arbitrary waveforms: Sinc, exponential rise, exponential fall, electrocardiogram, Gaussian, hassine, Lorentz, dual tone, DC voltage, etc. total 160 types |
| Arbitrary Waveform Length |
8pts~8Mpts (Optional 16Mpts) |
8pts~2Mpts (Optional 16Mpts) |
| Vertical Resolution |
14bits |
| Sine Wave |
1μHz~60MHz |
1μHz~30MHz |
1μHz~25MHz |
| Square Wave |
1μHz~25MHz |
1μHz~25MHz |
1μHz~25MHz |
| Sawtooth Wave |
1μHz~1MHz |
1μHz~500KHz |
1μHz~500KHz |
| Pulse Wave |
1μHz~25MHz |
1μHz~15MHz |
1μHz~15MHz |
| Arbitrary Wave/Harmonic |
1μHz~20MHz |
1μHz~10MHz |
1μHz~10MHz |
| Noise (-3dB) |
60MHz broadband |
30MHz broadband |
25MHz broadband |
| Sine Wave Spectral Purity |
Total harmonic distortion: <0.075% (10Hz-20kHz, 0dBm)
Phase noise: <-125dBc/Hz@10MHz (0dBm, 10kHz offset) |
| Square Wave Rise/Fall Time |
Typical (1Vpp) <10ns |
| Jitter signal |
Typical (1Vpp) ≤ 5MHz :2ppm+200ps
>5MHz：200ps |
| Output Amplitude (50Ω termination) |
≤ 10MHz：1.0mVpp ~ 10Vpp
≤ 30MHz：1.0mVpp ~ 5.0Vpp
≤ 60MHz：1.0mVpp ~ 2.5Vpp |
| Modulation Type |
AM, FM, PM, ASK, FSK, PSK, PWM |
| Working Mode |

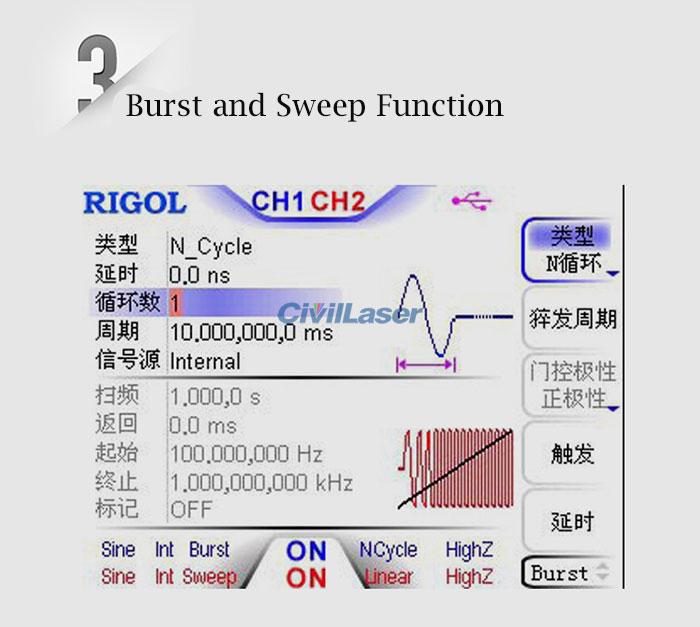

Continuous, burst, frequency sweep, modulation |
| Characteristics of pulse train |
Carrier frequency 2MHz~25MHz/30MHz/60MHz
Pulse count: 1~1M or unlimited
Trigger source: external, internal, manual |
| Standard Interface |
USB (Device front panel), USB (Host), LAN (LXI-C), USB-GPIB (optional) |
