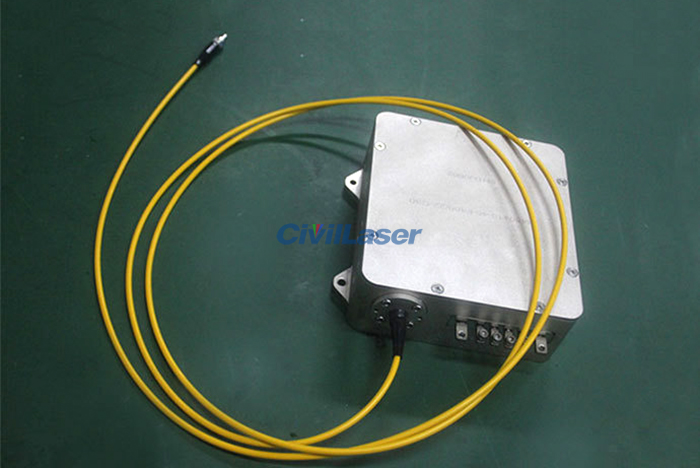

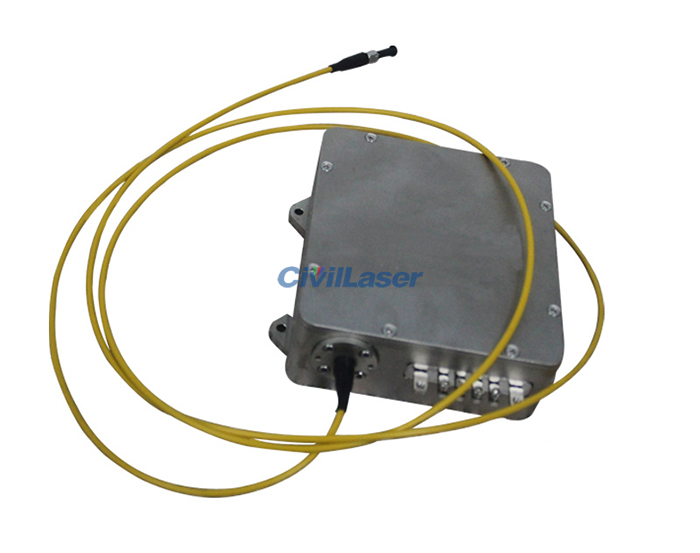

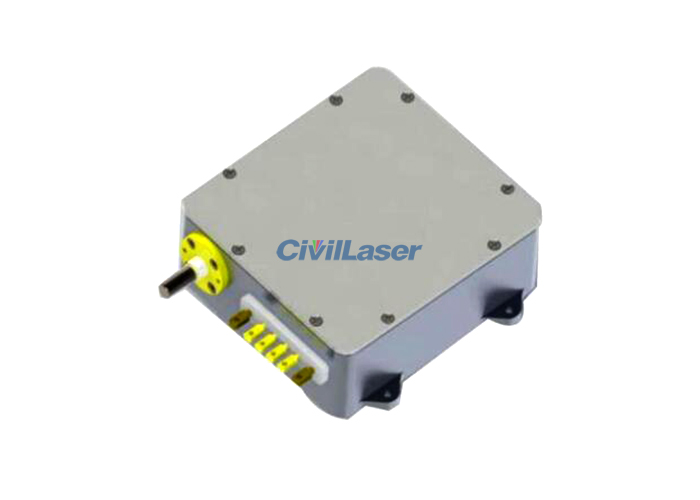

450nm 45W High Power Fiber Coupled Laser Module Blue Fiber Engraving Laser

450nm 45W High Power Fiber Coupled Laser Module Blue Fiber Engraving Laser

[Features]
High output power, high brightness.
High reliability,high stability.
High beam quality.

[Applications]
Scientific research
Optical communication
Laser engraving
Metal cutting
Welding

[Speicfications]

Parameter	Symbol	Typical Value	Unit
Optcial Parameters
Output Power	Pop	45	W
Wavelength	λe	450	nm
Electrial Parameters
Threshold Current	Ith	0.3	A
Operating Current	Iop	2.5	A
Operating Voltage	Vop	36	V
Power Supply	Two-way power supply
Fiber Parameters
Core Diameter	dcore	400	μm
Numerical Aperture	NA	0.22	-
Fiber Length	L	1.5	m
Fiber Cable	dcable	3/7	mm
Fiber Head	-	SMA905	-

[Other Parameters]

Parameter	Min	Max	Unit
Operating Temperature	-40	60	℃
Relative Operating Humidity	-	75	%
Storage Temperature	-50	80	℃
Relative Storage Humidity		80	%
Soldering Temperature, Up to 10S	-	250	℃
Net Weight	1.8	2	Kg
