Home :: Laser Module(Dot/Line/Cross..) :: Red Laser Module Dot :: 685nm 5mW 10mW Red Laser Diode Module Dot small size 6mm*18mm

685nm 5mW 10mW Red Laser Diode Module Dot small size 6mm*18mm

Red Laser Module Dot

Product 75/95

Return to the Product List

685nm 5mW 10mW Red Laser Diode Module Dot small size 6mm*18mm

larger image

$39.00

Please Choose:

Output Power

Add to Cart:
Min: 2

685nm 5mW 10mW Red Laser Diode Module Dot Customized small size 6mm*18mm

[Specifcation]
Product Name: Laser module
Wavelength: 685nm±15nm
Output Power: 5mW / 10mW (Choose)
Focus: Fixed

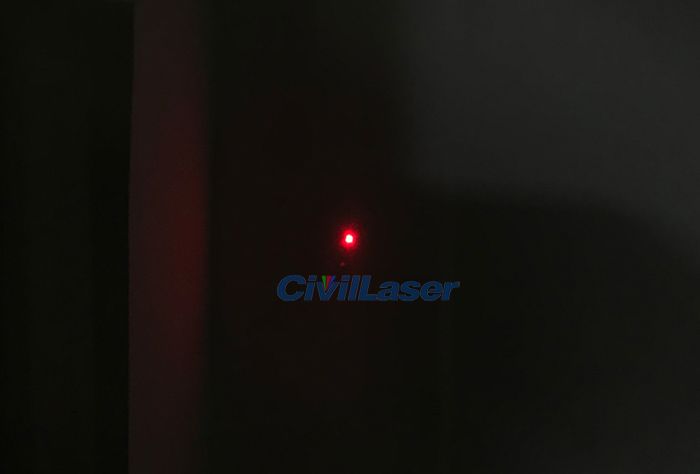

Spot Shape: Dot
Working Mode: CW

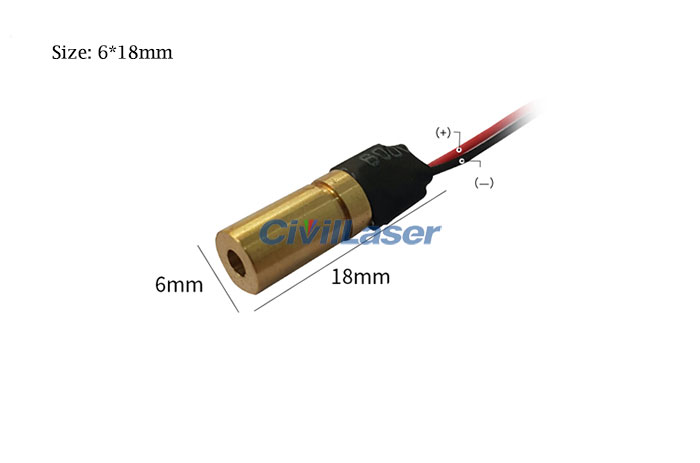

Size: 6*18mm
Material: Environmental Aluminum
Wire: 150mm red and black electronic wire
Irradiation Range(Indoor): >150 meters
Spot Size at 10 meters: Ellipse < 8*12mm

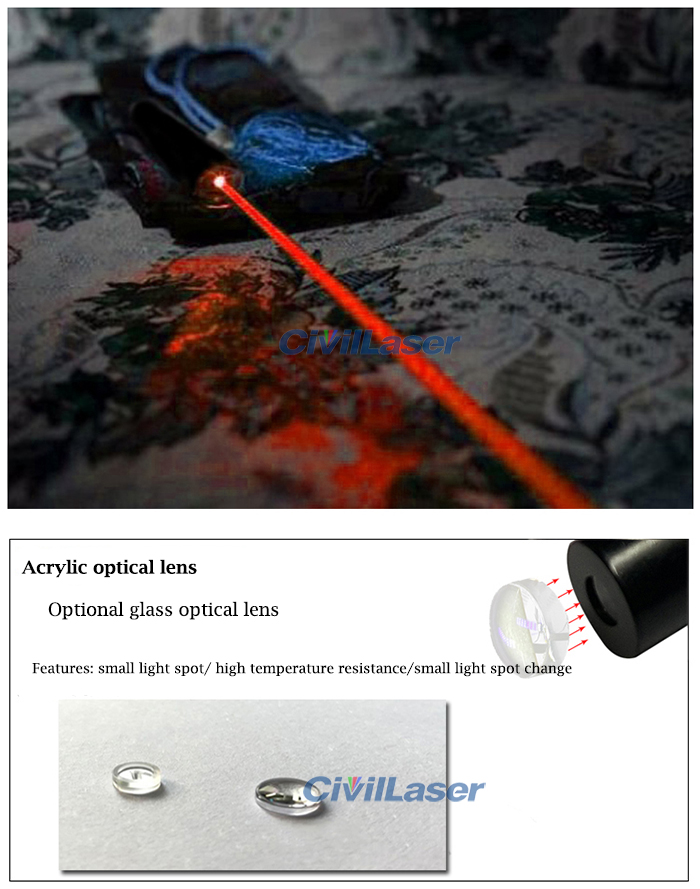

Lens Material: Acrylic optical lens
Circuit Control: APC Constant power drive
Operating Voltage: DC 3~5V
Operating Current: <140mA
Operating Temperature: -10~+60℃
Storage Temperature: -40~+85℃

685nm laser module

685nm laser module

685nm laser module
