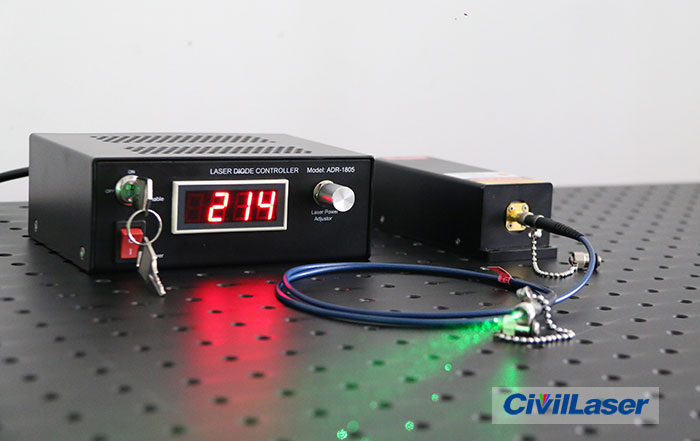

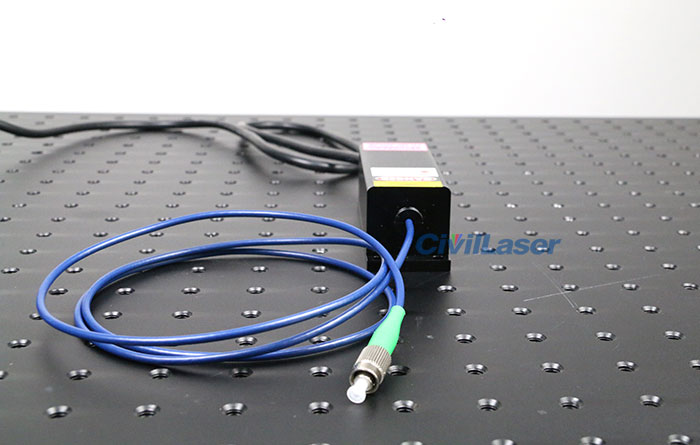

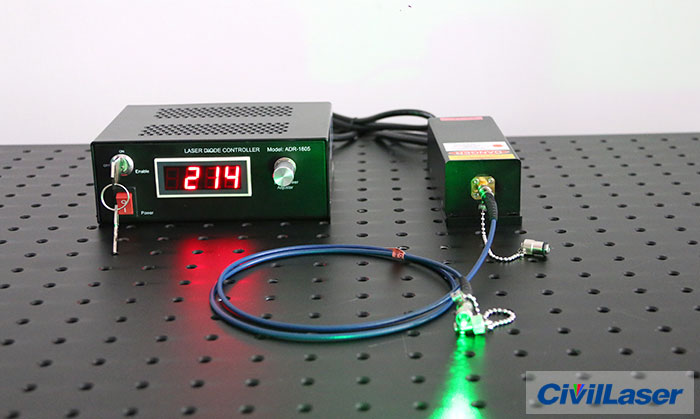

532nm 100mW Raman Laser 0.1nm Narrow Linewidth Fiber Laser

532nm 100mW Raman Laser 0.1nm Narrow Linewidth Fiber Laser

532nm Raman laser has the characteristics of stable spectrum and small line width.It's Very suitable for Raman and sensing applications.This kind of laser is an optical coupling of 532nm Raman laser,fiber output, in use can be more convenient for the laser spectrometer and integration.

Notes:
This is a custom product,  if you need other output power, or have special requirements, please contact us.

Lead Time: 3~4 weeks

[Features]
1.Spectral stability(<3%)

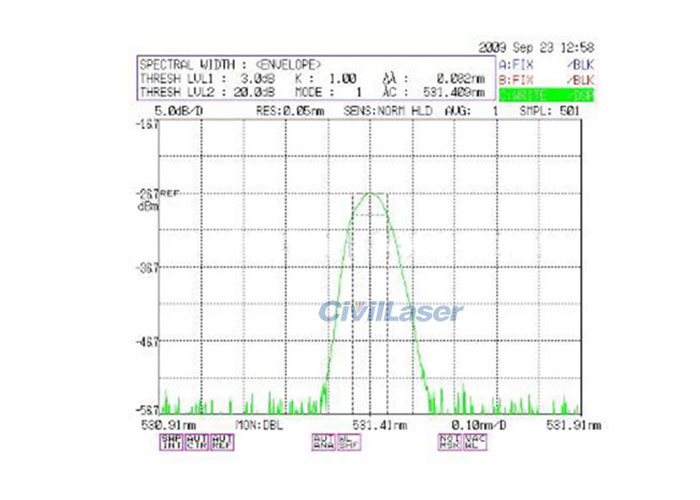

2.Small line width(0.1nm)

[Applications]
1.Raman spectrum
2.Sensing

[Specifications]
Wavelength: 532nm
Output Power: 100mW  (@ Fiber output side, and 0~max power adjustable)
Fiber Connector: FC/PC or SMA-905 (choose)
Fiber Type: MM Fiber
Fiber Length: 1 meters
Fiber Diameter: 100μm
Output Stability (RMS):<5% over 2 hours
Modulation: 0~10KHz TTL
Operating Temperature: 0°C-45°C
Storage Temperature:  -40°C-85°C
Warming Time: <5 minutes
Service Life: >5000 hours
