U-LD-985043D 980nm 50mW Laser Diode Union IR Laser Source TO18 Package

U-LD-985043D 980nm 50mW Laser Diode Union IR Laser Source TO18 Package

[Features]
1. Peak wavelength at 25℃：980nm (typical)
2. Standard light output：50mW (CW)

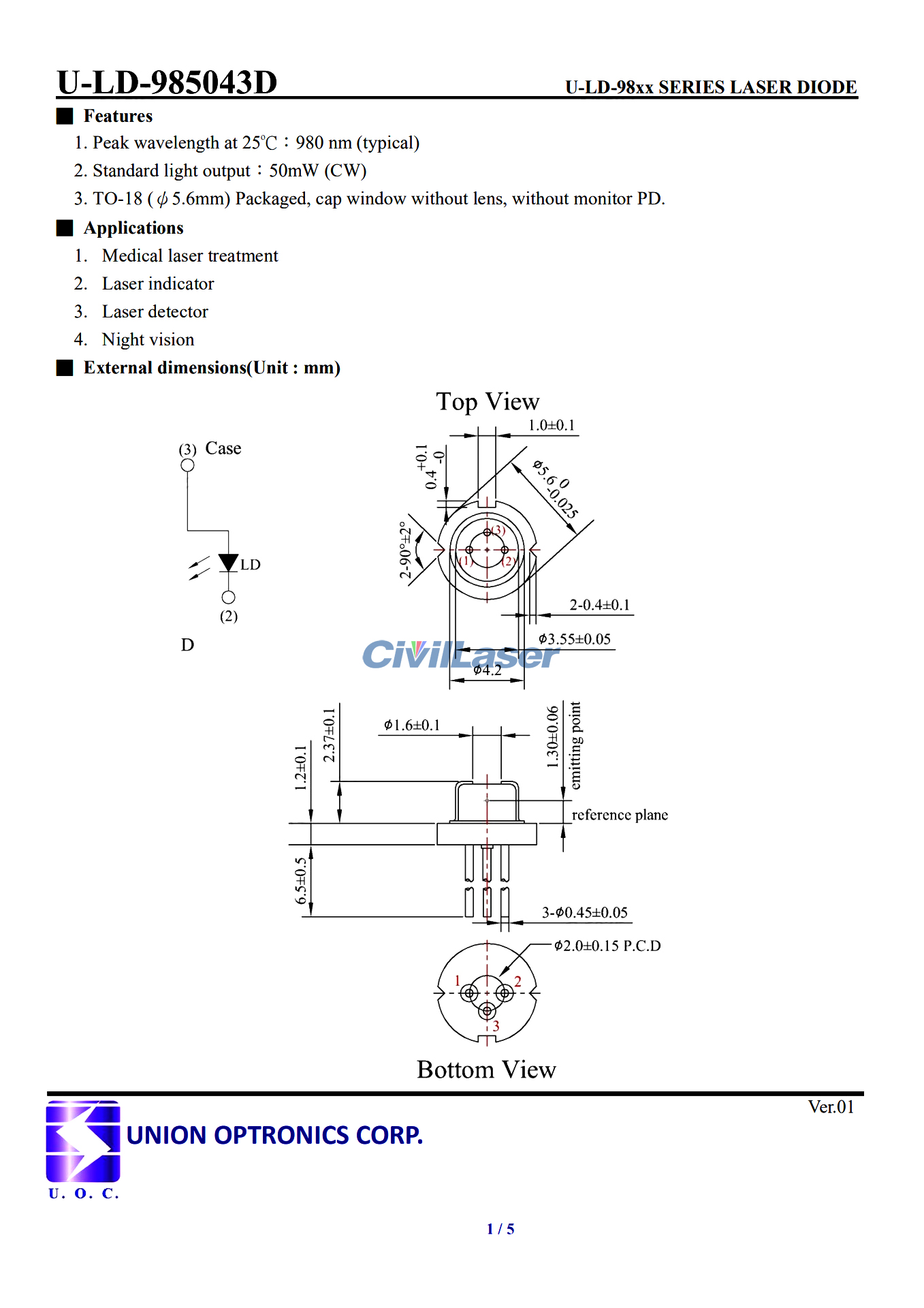

3. TO-18 (Φ5.6mm) Packaged,  cap window without lens, without monitor PD.

[Applications]
1. Medical laser treatment
2. Laser indicator
3. Laser detector
4. Night vision

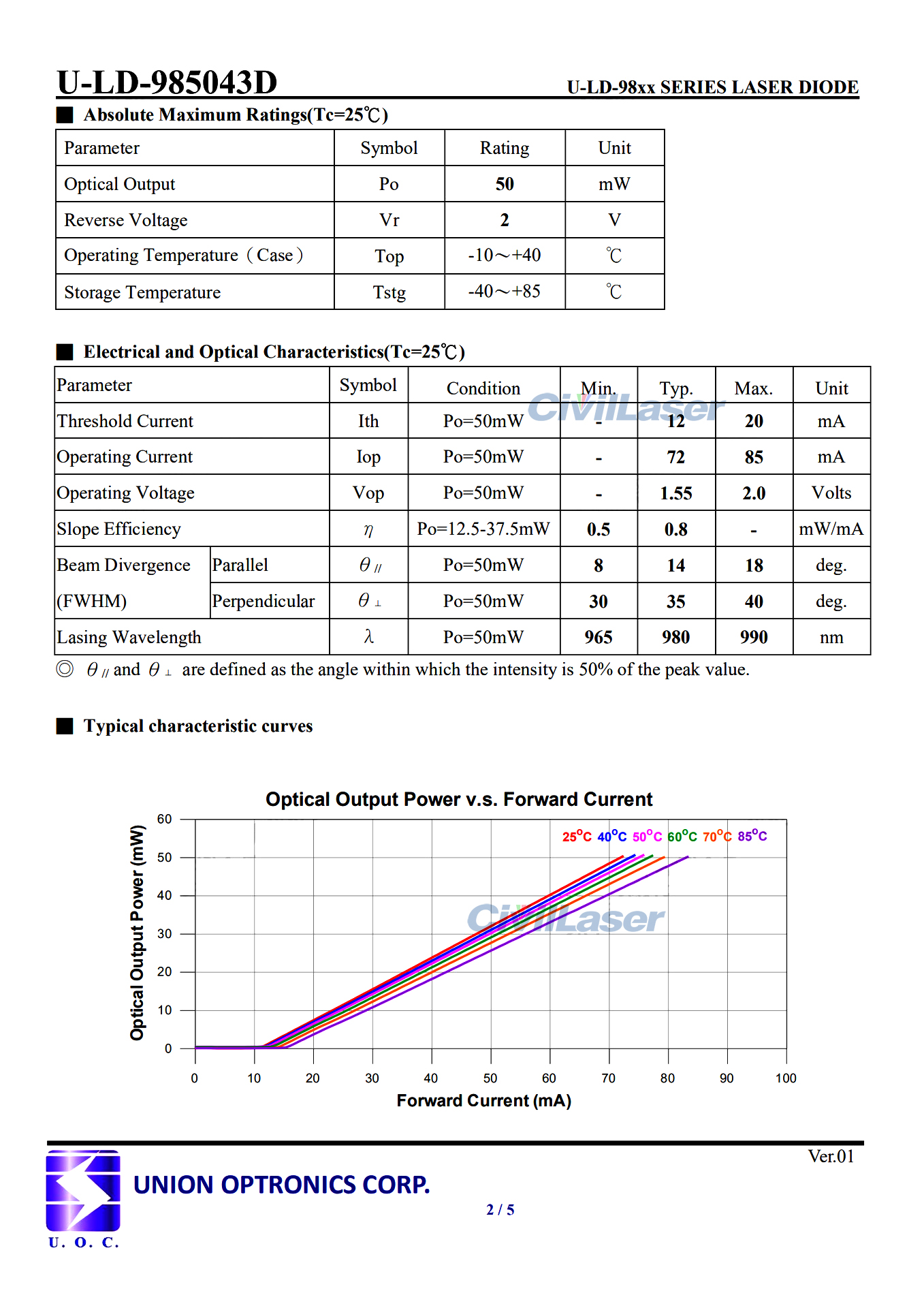

[Specification]
Product Name: Laser diode
Model: U-LD-985043D
Wavelength: 980nm
Output Power: 50mW
Threshold Current: 12mA
Operating Current: 72mA
Operating Voltage: 1.55V
Package: TO-18(Φ5.6mm)
Operating Temperature: -10~+40℃
Storage Temperature: -40~+85℃
