Union 830nm 100mW Laser Diode U-LD-83A060Ap IR Laser Source TO18 Package

$26.00

Add to Cart:
Min:  3

Union 830nm 100mW Laser Diode U-LD-83A060Ap IR Laser Source TO18 Package

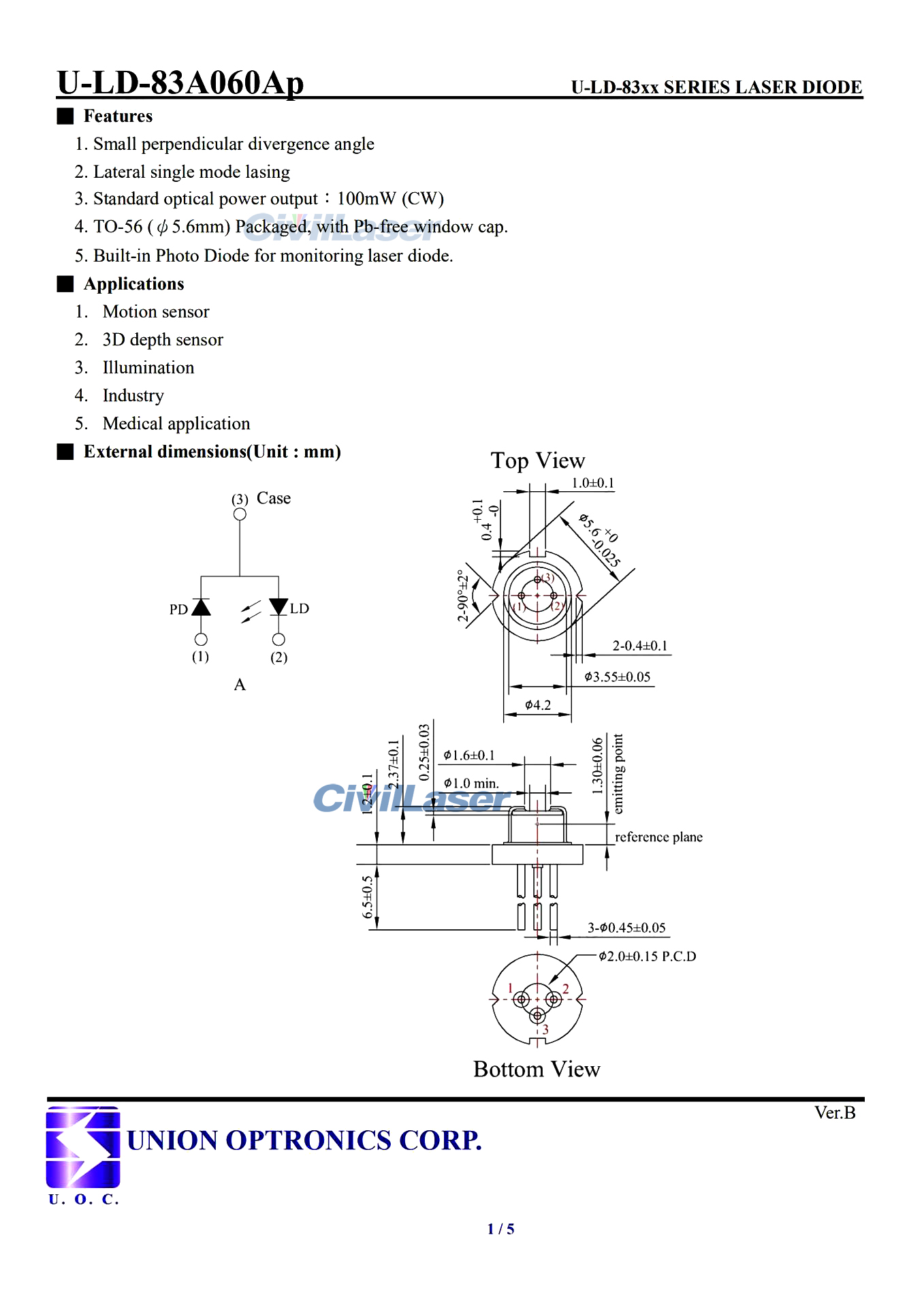

[Features]
1. Small perpendicular divergence angle
2. Lateral single mode lasing
3. Standard optical power output:100mW (CW)
4. TO-56 (Φ5.6mm) Packaged, with Pb-free window cap.
5. Built-in Photo Diode for monitoring laser diode.

[Applications]
1. Motion sensor
2. 3D depth sensor
3. Illumination
4. Industry
5. Medical application

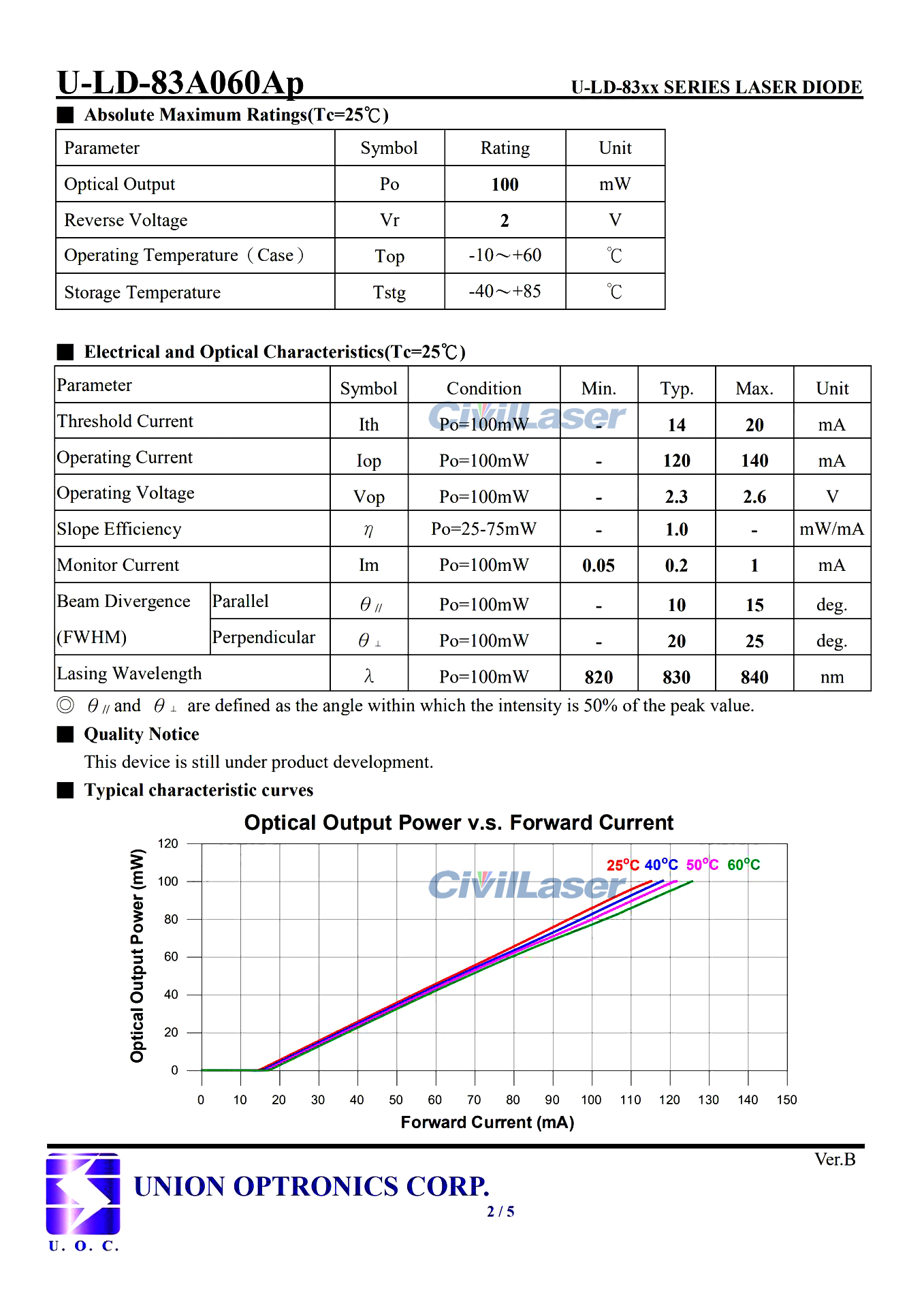

[Specification]
Product Name: Laser diode
Model: U-LD-83A060Ap
Wavelength: 830nm
Output Power: 100mW
Threshold Current: 20mA
Operating Current: 140mA
Operating Voltage: 2.3V
Package: TO-18(Φ5.6mm)
Operating Temperature: -10~+60℃
Storage Temperature: -40~+85℃
