U-LD-80J051Ap/Dp 808nm 1000mW High Power NIR Laser Diode Φ9mm Package

$26.00

 Sold Out

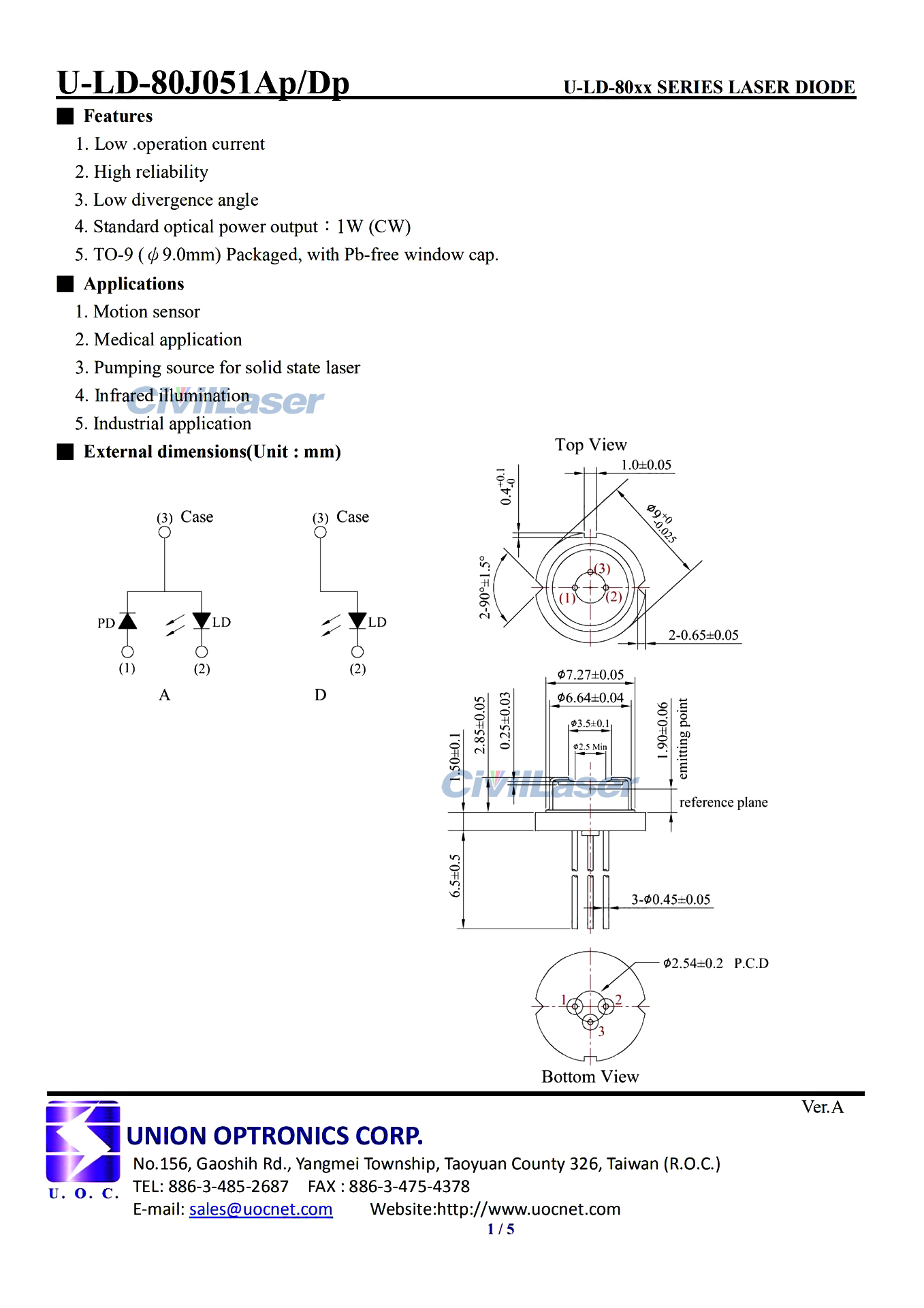

U-LD-80J051Ap/Dp 808nm 1000mW High Power NIR Laser Diode Φ9mm Package

[Features]
1. Low operation current.
2. High reliability.
3. Low divergence angle.
4. Standard optical power output:1W (CW)
5. TO-9 (Φ9.0mm) Packaged, with Pb-free window cap.

[Applications]
1. Motion sensor
2. Medical application
3. Pumping source for solid state laser
4. Infrared illumination
5. Industrial application

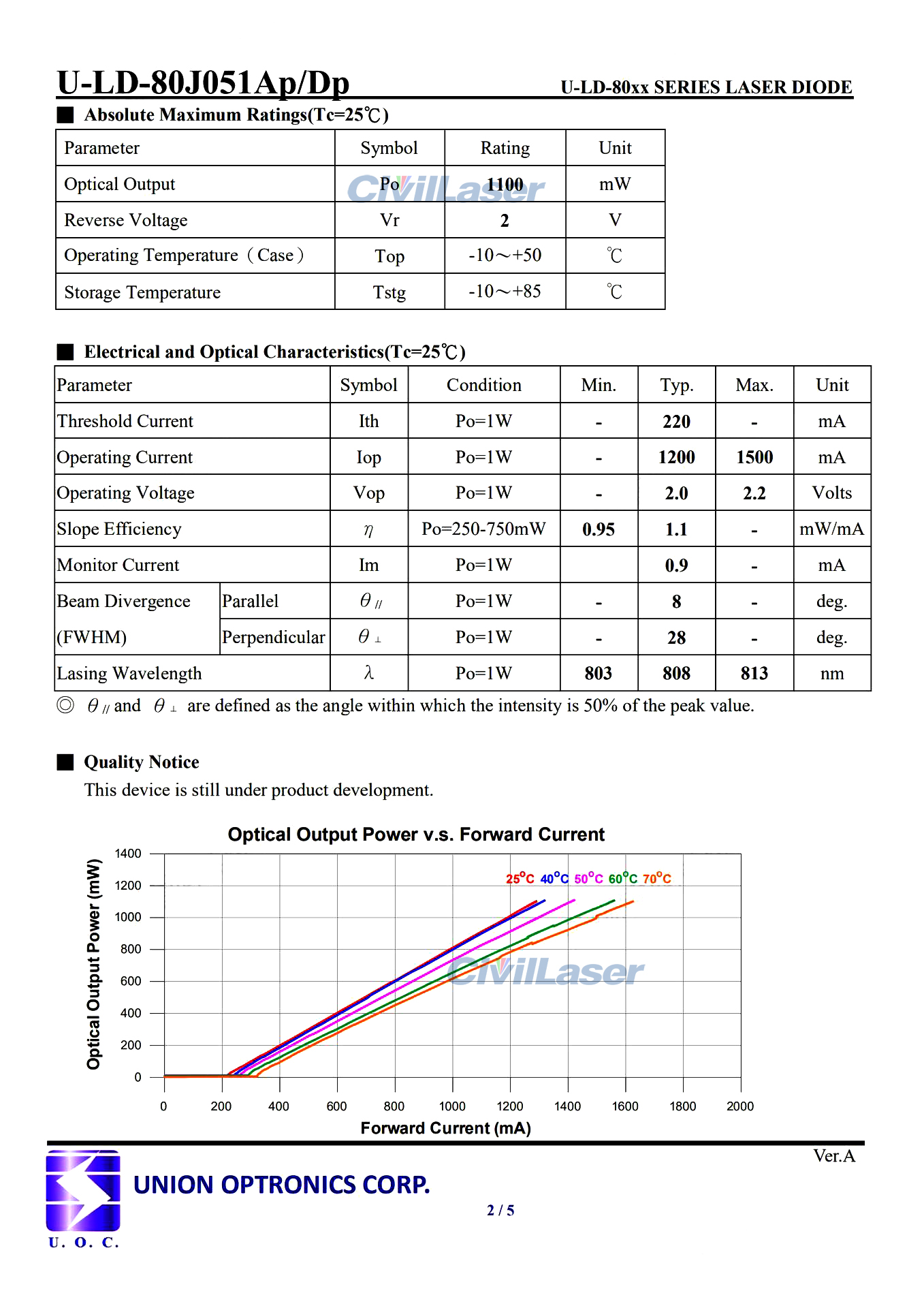

[Specification]
Product Name: Laser diode
Model: U-LD-80J051Ap/Dp
Wavelength: 808nm
Output Power: 1000mW
Threshold Current: 220mA
Operating Current: 1200mA
Operating Voltage: 2V
Package: TO-9(Φ9mm)
Operating Temperature: -10~+50℃
Storage Temperature: -10~+85℃
