Union U-LD-835060Ap/62Ap 830nm 50mW IR Single mode Laser Diode TO-18 Package

Union U-LD-835060Ap/62Ap 830nm 50mW IR Single mode Laser Diode TO-18 Package

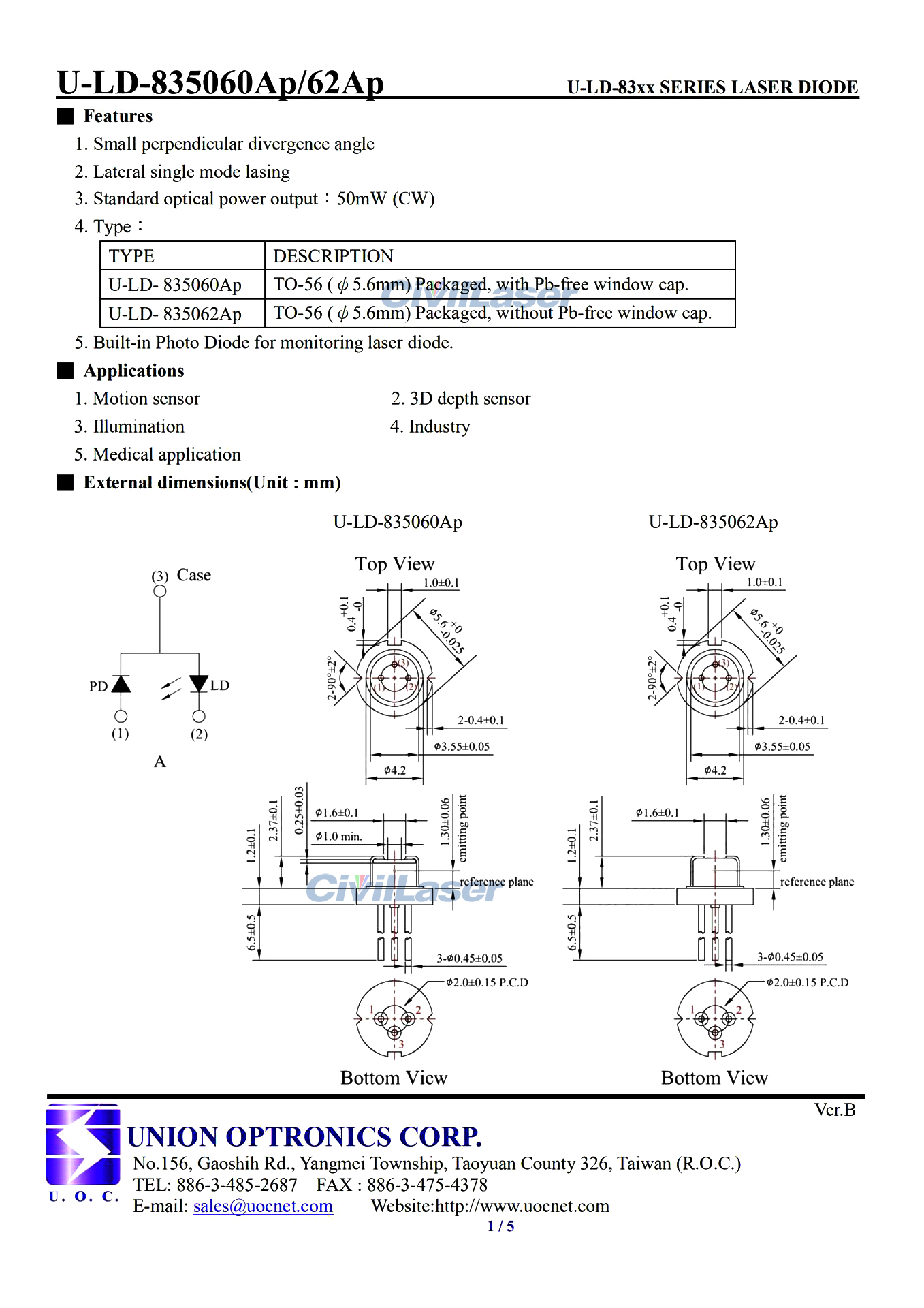

[Features]
1. Small perpendicular divergence angle.
2. Lateral single mode lasing.
3. Standard optical power output：50mW (CW)
4. U-LD- 835060Ap: TO-56 (Φ5.6mm) Packaged, with Pb-free window cap.
    U-LD- 835062Ap: TO-56 (Φ5.6mm) Packaged, without Pb-free window cap.

[Applications]
1. Motion sensor
2. 3D depth sensor
3. Illumination
4. Industry
5. Medical application

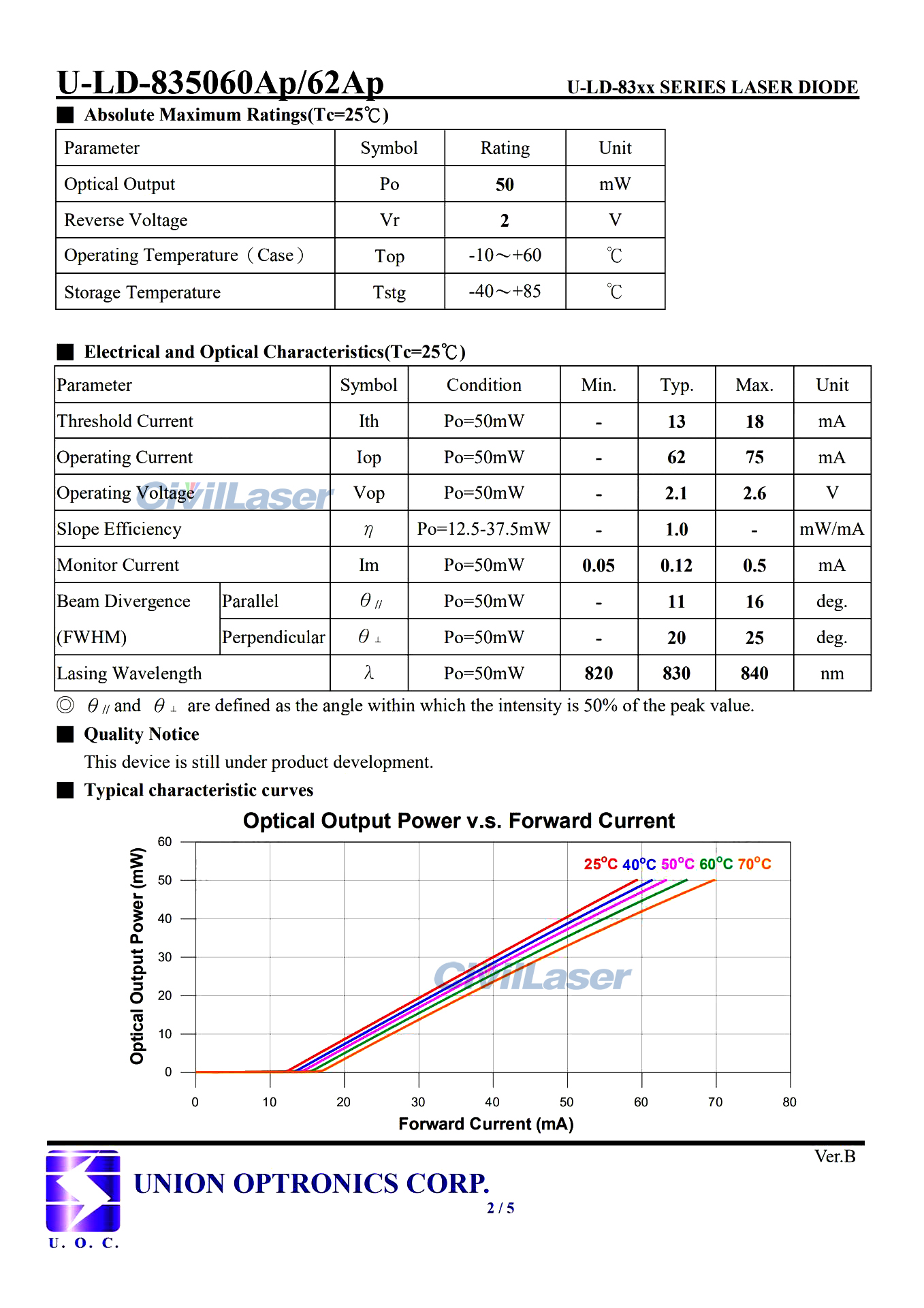

[Specification]
Product Name: Laser diode
Model: U-LD-835060Ap/62Ap
Wavelength: 830nm
Output Power: 50mW
Reverse Voltage: 2V
Threshold Current: 13mA
Operating Current: 62mA
Operating Voltage: 2.1V
Package: TO18(Φ5.6mm)
Operating Temperature: -10~+60℃
Storage Temperature: -40~+85℃
