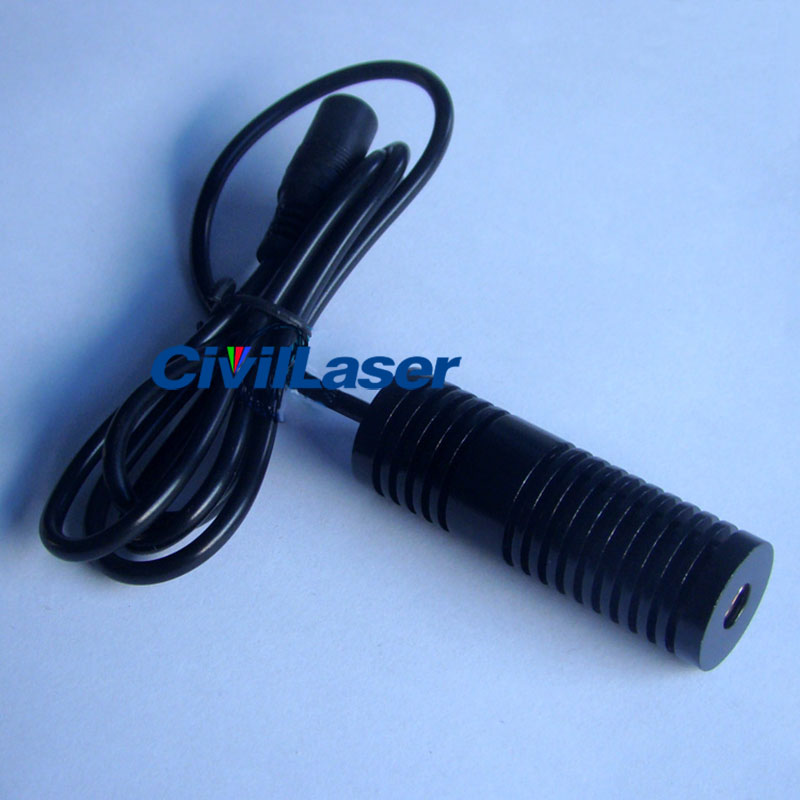

650nm 250mW 5V Red Line shape laser module High power positioning instrument

650nm 250mW 5V Red Line shape laser module High power positioning instrument

[Specifications]
Wavelength： 650nm±5nm
Output power: <250mw
Module Size: Φ20×60mm
Material: Copper + aluminum
Surface treatment / color: Black
Working Mode: CW
Serivce life: continuous service life > 6000 hours (please pay attention to heat dissipation when working for a long time)
Laser Range: <30m
Laser shape: Line
Line width: The minimum line width is ≤1.0 mm (close range fixed-point focusing); the line width at 1m is < 2mm
Divergent angle of A-line: 5°、20°，36°、45°，60°、90°、110°（Default 90 degree）
Circuit control: ACC
Working voltage: DC=3~5V
Working current: I<320mA
Working Temperature: -10℃～＋50℃
Storage Temperature: -40℃～＋80℃
Safety level：CLASS IIIB

[Usage scenarios]
It is widely used in equipment, medical and health equipment, military, security, stage lighting, tools, U disk, mobile phone, projection teaching flipper, temperature measuring (distance measuring) instrument, leveling instrument, marking instrument, level ruler, indoor and outdoor decoration, etc
