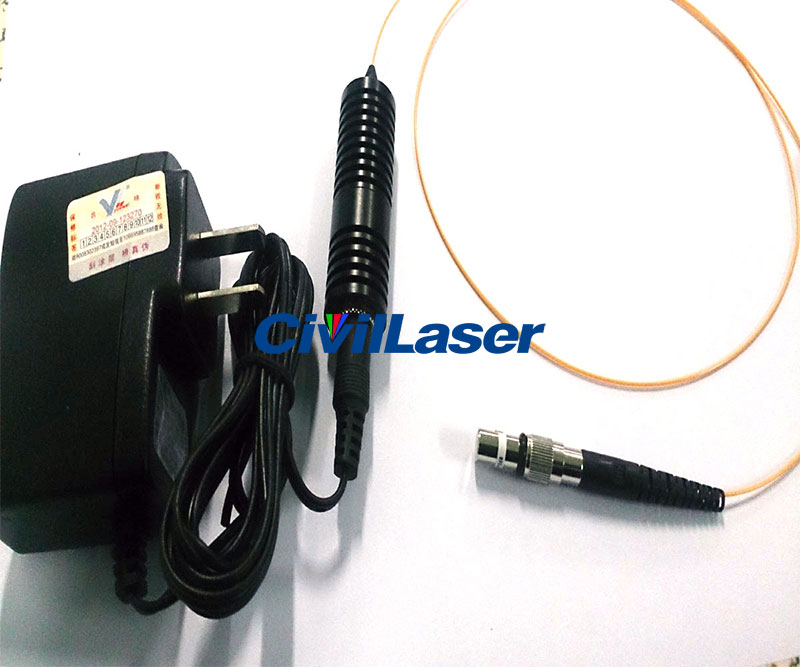

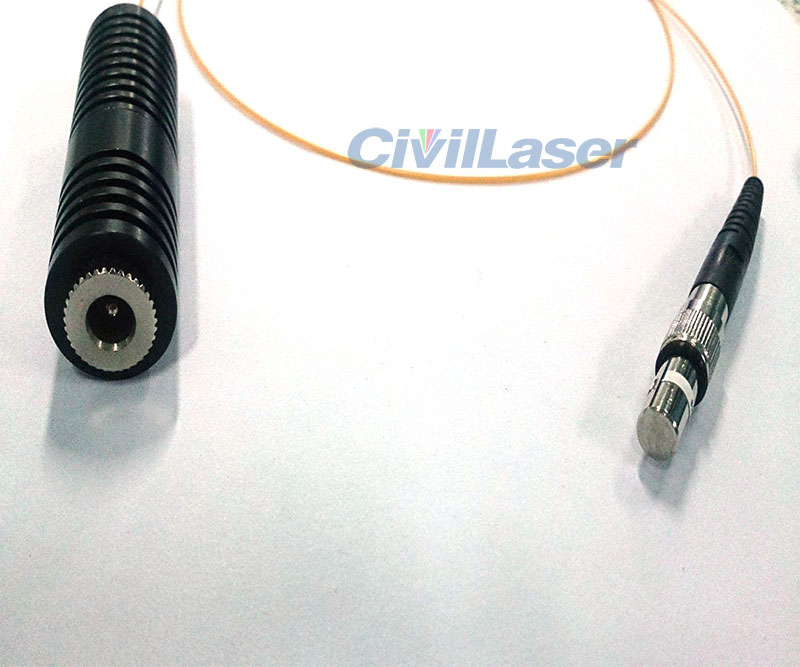

1550nm 5mw pigtailed fiber coupled laser module infrared sensor

1550nm 5mw pigtailed fiber coupled laser module infrared sensor

Specifications:
Items: HC315505D-FB
Mode: CW
Wavelength: 1550nm
Output Power: <5mw
Operating Voltage: 2.8-3.5V
Operating Current: <40mA
Operating Temperature: -20°~+50°
Storage Temperature: -40°~+85°
Housing Material: Environmental protection aluminum parts
Mean time to failure: >8000H
Laser Safety: Class ⅢA
Core warp Size: 90um
Divergence Angle: <30°
Connector: FC/APC or SMA905
Diameter x Length: 16x64mm
Driver circuit: ACC
