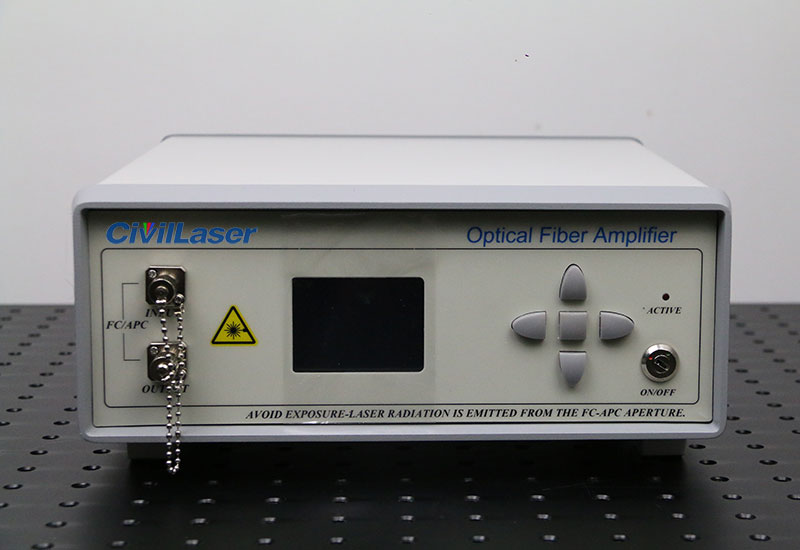

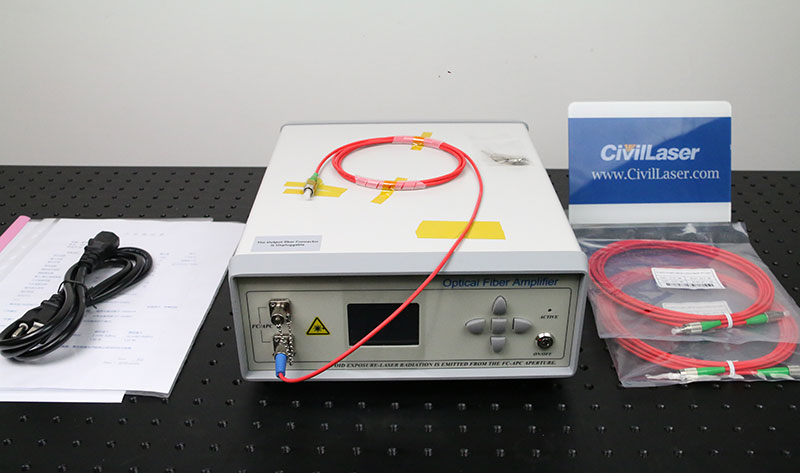

C-Band 10W 40dBm High Power Single Mode Fiber Amplifier Desktop Type EYDFA-C-HP-BA-40-SM-B3
The high-power erbium-doped fiber amplifier (EYDFA-HP) utilizes the principle of stimulated light amplification of optical signals in erbium-ytterbium co-doped fiber. It utilizes a uniquely designed optical path and reliable high-power laser heat dissipation technology to achieve high-power laser output in the 1535-1565nm wavelength range. Its high power and low noise performance make it suitable for applications such as fiber-optic communications and lidar.
[Features]
High power
High gain coefficient
Wide wavelength range
[Application]
Fiber Optic Communications
Fiber Optic Sensing
Fiber Optic Laser
[Speicfictaion]
| Parameter |
Unit |
Typical Value |
Remarks |
| Model |
|
EYDFA-C-HP-BA-40-SM-B3 |
|
| Wavelength Range |
nm |
1535~1565 |
C-band |
| Intput Power |
dBm |
-6~+10 |
|

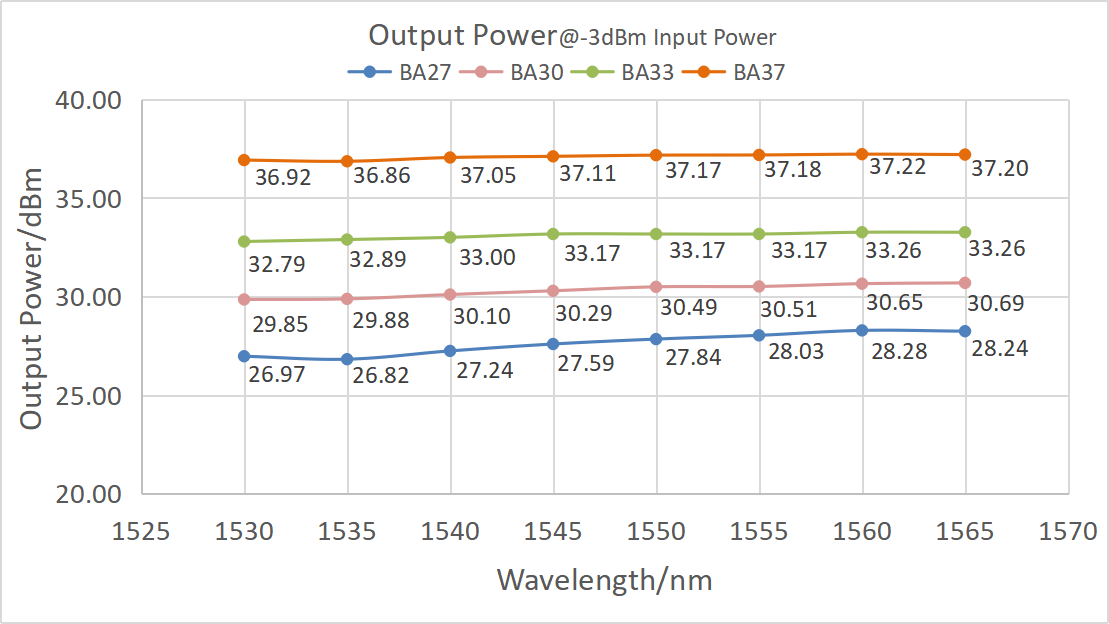

| Saturated Output Power |
dBm |
40 |
@-3dBm input |
| Output power adjustable range |
- |
10%~100% |
|
| Noise Index |
dB |
<6.0 |
|
| Gain Wavelength Non-Uniformity |
dB |
≤1 |
@Different wavelengths are amplified separately |
| Polarization Dependent Gain |
dB |
≤0.5 |
|
| Polarization Mode Dispersion |
ps |
0.5 |
|
| Input/Output End Isolation |
dB |
>35 |
|
| Optical Power Monitoring |
-- |
Input power monitoring;
Output power monitoring |
|
| Pigtail Type |
|
SMF-28e single mode fiber |
L=1m |
| Pigtail Connector Type |
|
FC/APC |
|
| Operating Mode |
|
ACC/APC |
ACC: Automatic Current Control
APC: Automatic Power Control |
|
Electrical and Environmental Parameters
|

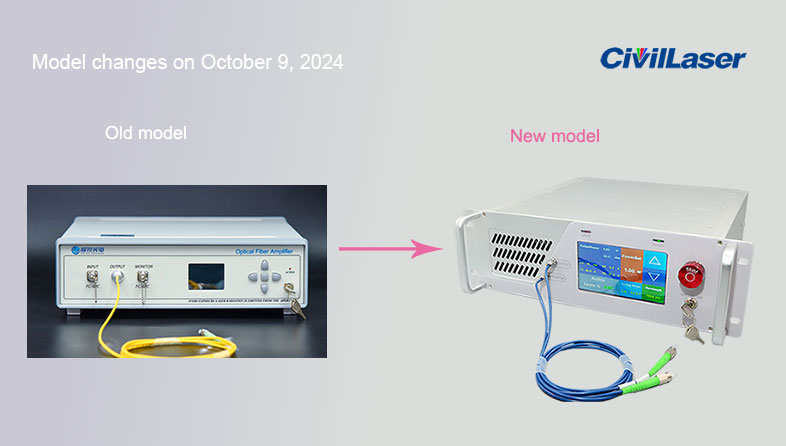

Desktop Type
(Current Product)
|
Module Type
|
|
Control Method
|
Touch screen/RS232 Serial communication
|
RS232 serial communication
|
|
Communication Interface
|
DB9 Female
(Default not include)
|
DB9 Female
|
|
Power Supply
|
AC 100~240V
|
12V DC
|
|
Size
|
376(W)×340(D)×112(H)mm
|
139(W)×235(D)×70(H)mm
|
|
Operating Temperature Range
|
-5~+35°C
|
|
Operating Humidity Range
|
0~70%
|
*Note1:
ACC mode - automatic current control: The EDFA pumping operating current is set by the user and automatically locked by the EDFA to achieve a constant pumping current. When the input optical power fluctuates, the output power will also fluctuate accordingly, which is suitable for all EDFA models.
APC mode - automatic power control: The signal light output power of the EDFA is set by the user, the PD automatically monitors and feeds back the output power, the EDFA control and the adaptive adjustment pump achieve the stability of the output signal. When the input optical power fluctuates, the APC mode minimizes the fluctuation of the output power and is suitable for power type and line type EDFA.

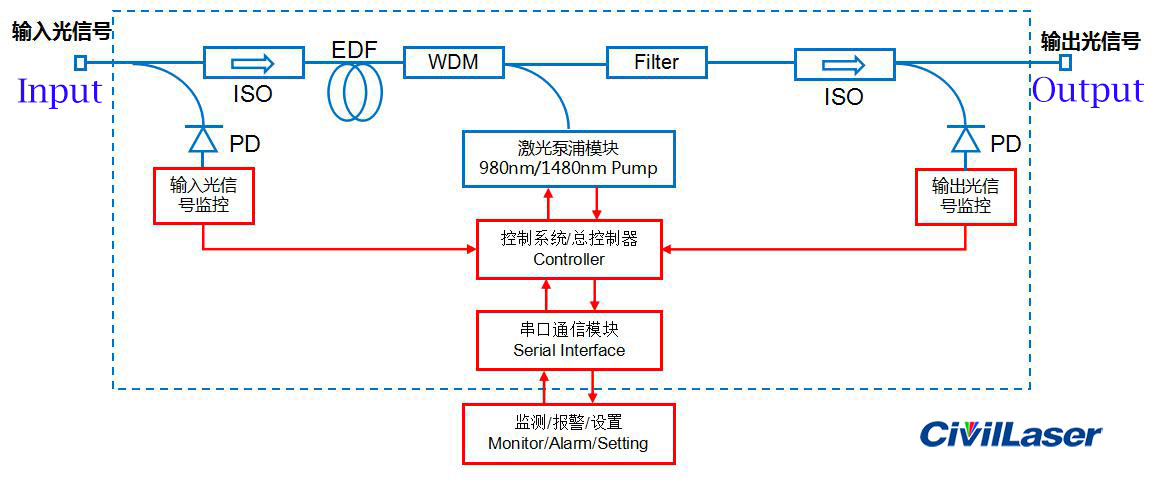

System architecture diagram:
