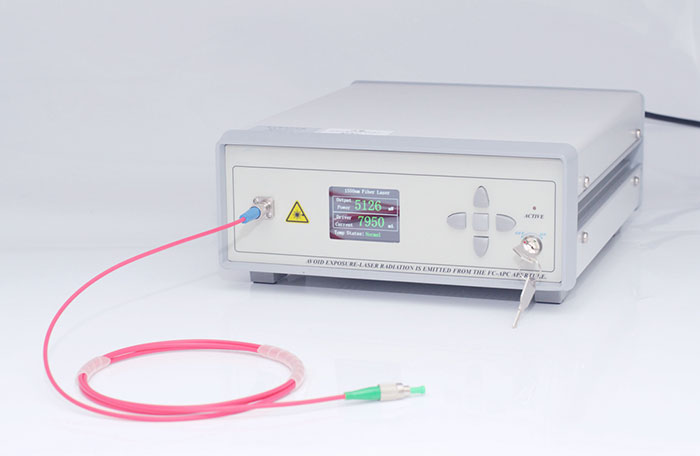

2000nm-Band ASE Broadband Light Source Fiber Laser Source Desktop Type 10mW SM Fiber Laser ASE-2000-10-SM-B
The 2000nm band ASE broadband light source is based on thulium fiber laser technology, with high output power and a spectrum covering 1920~2020nm, suitable for laser biology, spectral measurement and other applications.
Note: 4~8 weeks lead time.
[Features]
Spectrally flat
Mid-infrared band
High stability output power
[Applications]
Optical fiber sensing
Medical Imaging
Optical fiber device testing
[Specifications]
|
Parameters
|
Unit
|
Typical value
|
Remarks
|
|
Model
|
--
|
ASE-2000-10-SM-B
|
|
|
Spectral Range
|
nm
|
1920~2020
|
|
|
Ouput Power
|
mW
|
10
|
|
|
Output Isolation
|
dB
|
>35
|
|
|
Short-term Stability (15 minutes)
|
dB
|
≤ ±0.02
|
Equivalent≤±0.5%
|
|
Long-term Stability (8 hours)
|
dB
|
≤ ±0.05
|
Equivalent≤±1.2%
|
|
Degree of polarization DOP
|
dB
|
≤ 0.2
|
|
|
Pigtail Type
|
--
|
SMF-28 single-mode fiber
|
Φ=3mm loose tube, L=1m
|
|
Pigtail Connector Type
|
--
|
FC/APC
|
|
|
Electrical and Environmental Parameters
|
Desktop Type
(Current product)
|
Module Type
|
|
Control Method
|
Button
|
RS232 Serial communication
(Only for power Tunable ASE)
|
|
Communication Interface
|
DB9 Female(Default not include,
only for power Tunable ASE )
|
DB9 Female
(Only for power Tunable ASE)
|
|
Power Supply
|
AC 100~240V
|
DC 12V, 5A
|
|
Size
|
260(W)×280(D)×120(H)mm
|
139(W)×235(D)×70(H)mm
|
|
Operating Temperature Range
|
-5~+35°C
|
|
Operating Humidity Range
|
0~70%
|
