1064nm 1000mW Picosecond Pulse Laser Ultra-fast Fiber Laser Source Desktop Type
The ultrafast laser uses high-performance rare earth fiber as the working medium, combined with full polarization-maintaining mode-locking technology and active servo control system to achieve stable output of picosecond pulsed laser in the 1064nm band. It can be fully self-started and work stably for a long time. It has the characteristics of narrow laser pulse and high pulse peak optical power. This light source can be used for scientific research in high-power laser, supercontinuum, laser ranging and other fields.
[Features]
Ultrashort pulse.
Self-starting and maintenance-free.
Fully Polarization maintaining, high stability.
[Applications]
Fiber laser pumping
Supercontinuum generation
Seed laser pulse
[Specifications]
| Parameter |
Unit |
Value |
Remarks |
| Wavelength |
nm |
1064 |
1064nm/1030nm Customizable |

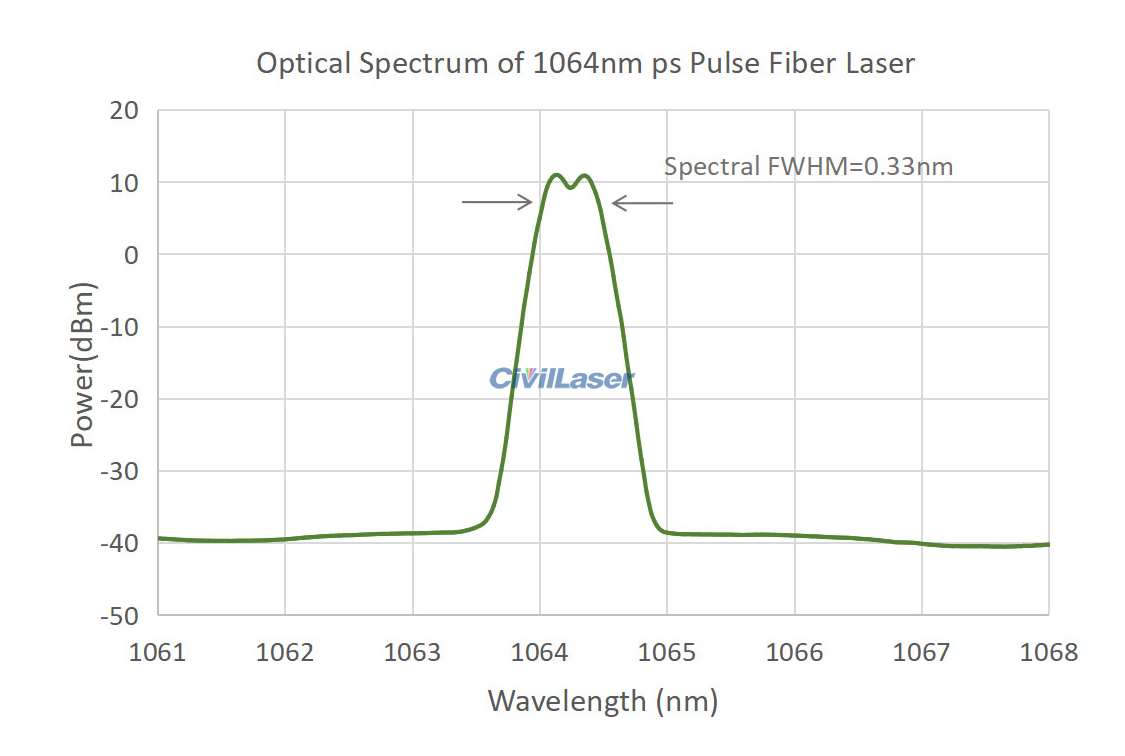

| Spectral Width |
nm |
0.3nm@3dB |
Customizable |

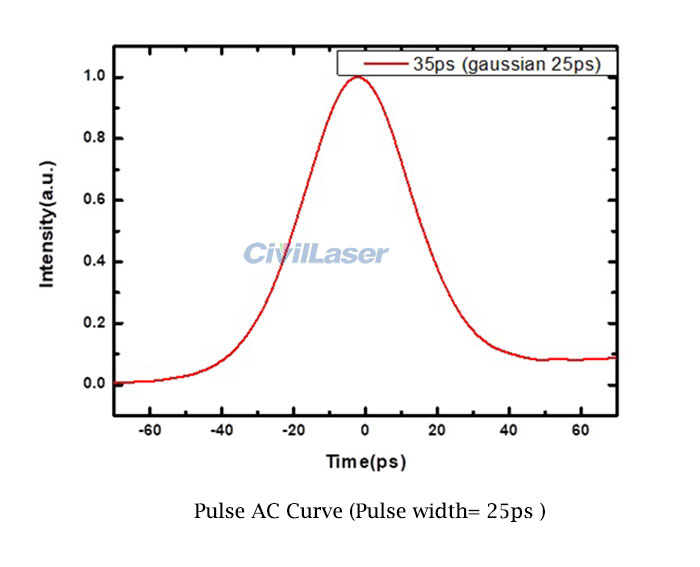

| Pulse Width |
ps |
100 |
10/20/50/100ps customizable |
| Output Power |
mW |
1000 |
10~2000mW Customizable |

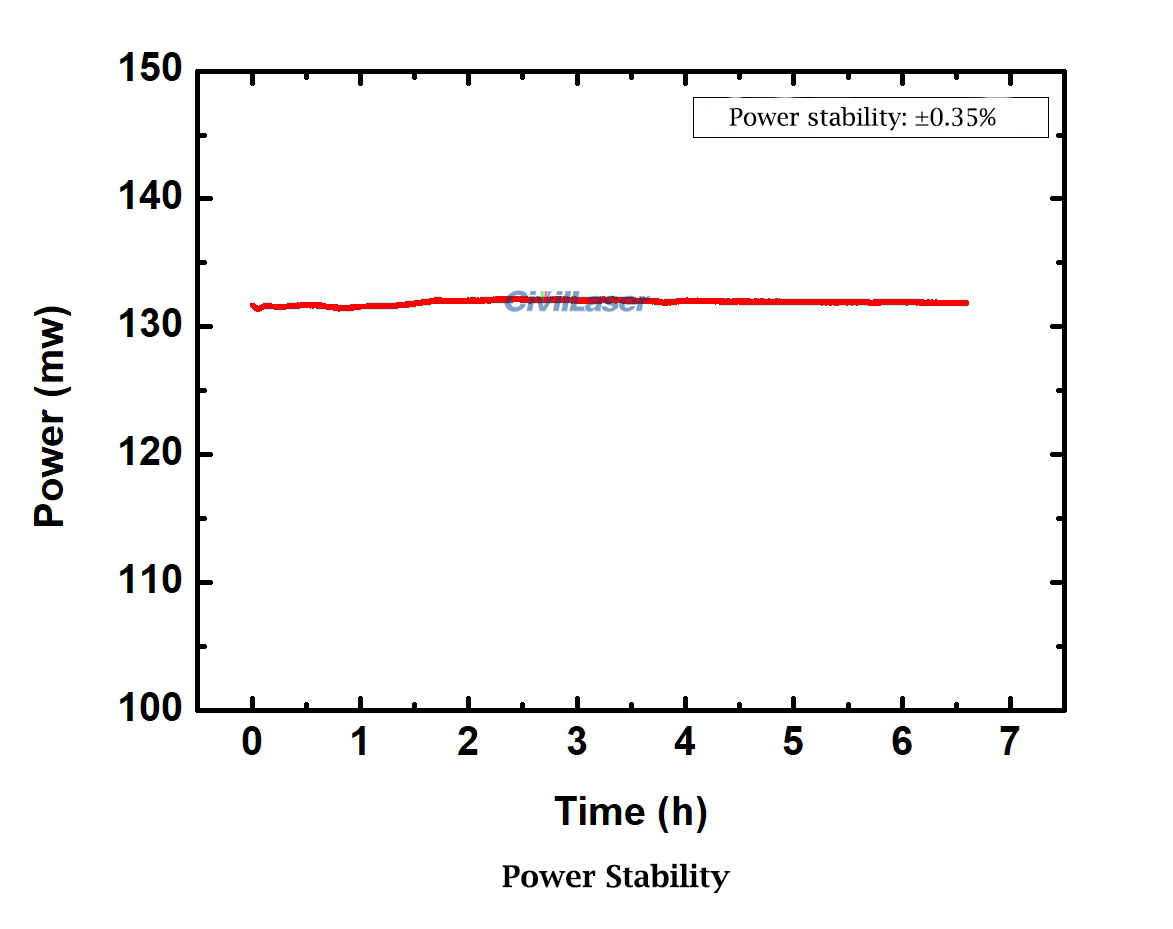

| Power Instability |
|
< ±1% |
|

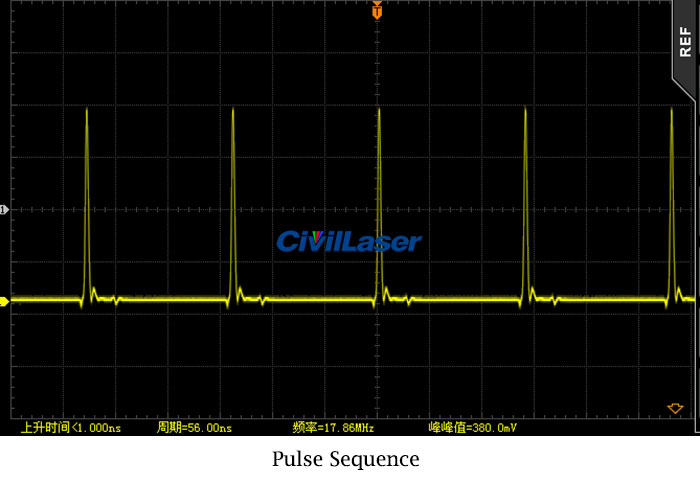

| Repeat Frequency |
MHz |
20 |
1~20MHz Frequency reduction module optional |
| Single Pulse Energy |
nJ |
>1 |
|
| Stable Time of Mode Locking After Startup |
s |
<20 |
|
| Laser polarization state |
|
Linear polarization |
|
| Laser Output Method |
|
Polarization maintaining fiber output |
|
| Fiber Interface |
|
FC/APC |
|
| Preheat Time |
min |
<1 |
|
Electrical and environmental parameters：
| Parameter |
Desktop Type
(Current Product) |
Module Type |
| Control Mode |
Button |
Button |
| Synchronous Electrical Signal Interface |
SMA |
SMA |
| Power Supply |
100~240V AC, <30W |
5V DC, <20W |
| Size |
330(W)×398(D)×112(H)mm |
200(W)×121(D)×55(H)mm |
| Operating Temperature |
5 ~ 45°C |
| Operating Humidity |
0~70% |
