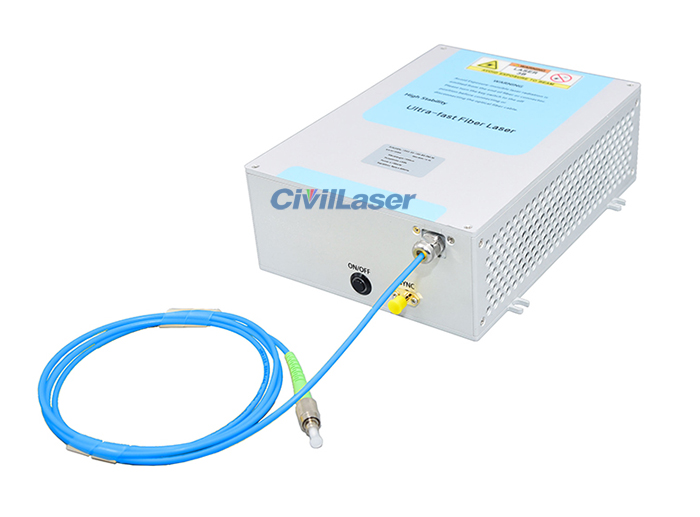

1560nm 1.5μm Picosecond Pulse Fiber Laser 10ps Pulse Width Ultra-fast Laser PSPL-1560-10-100-80-PM-M65
This 1560nm picosecond pulse fiber laser utilizes high-performance rare-earth fiber as its working medium. Combined with high-precision dispersion compensation technology and an active servo system, it achieves stable 1560nm picosecond pulse laser output. It features one-touch auto-start, long-term stable operation, and is maintenance-free. Its exceptionally narrow laser pulses and high peak power make it widely applicable in optical frequency combs, supercontinuum spectroscopy, and terahertz (THz) applications.
*Parameters such as wavelength, pulse width, power, and repetition rate can be specified or customized.
[Features]
Pulse width 1~100ps
Wavelength 1530~1560 nm
Self-starting and maintenance-free
Full polarization maintaining and high stability
[Applications]
Optical Frequency Comb
Super continuum
Terahertz wave
Ultrafast laser phenomena
[Specifications]
|
Parameters
|
Unit
|
Typical value
|
Remarks
|
|
Model
|
-- |
PSPL-1560-10-100-80-PM-M65 |
|
| Wavelength |
nm |
1540~1560
|
Customizable |
|
Spectral Width
|
nm |
0.5~50
|
@3dB |
|
Pulse Width
|
ps |
10
|
1/10/50/100 Customizable |
|
Output Power
|
mW |
≥100 |
Customizable |
|
Power Instability
|
-- |
< ±1% |
|
|
Repeat Frequency
|
MHz |
80±1 |
10~1000MHz customizable
|
| Repetition Frequency Instability |
Hz |
<100 |
@1hour |
|
Single Pulse Energy
|
nJ |
0.1~1
|
|
|
Laser Polarization State
|
-- |
Linear polarization |
|
|
Output Fiber Type
|
-- |
PM1550 polarization maintaining fiber |
L=1m |
|
Connector Type
|
-- |
FC/APC |
Slow axis alignment. |
|
Preheat Time
|
min |
< 0.5 |
|
|
Electrical and Environmental Parameters
|
Module Type
|
|
Control Mode
|
Button / RS232 or USB communication |
|
Synchronous Electrical Signal Interface
|
SMA |
|
Power Supply
|
12V DC, <20W |
|

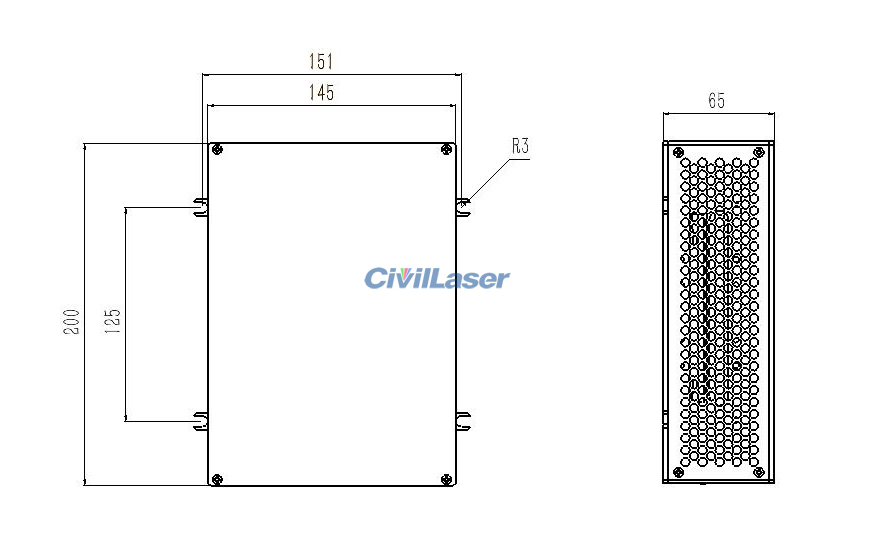

Size
|
200(W)×145(D)×65(H)mm |
|
Operating Temperature
|
5 ~ 35°C |
|
Operating Humidity
|
0~70% |
