120fs Pulse Width 1560nm 1000mW High Power Femtosecond Pulse Fiber Laser FSPL-1560-120-800/1000-80/100-FS-B4
This high-power ultrafast laser integrates the latest femtosecond laser technology, utilizing high-performance rare-earth optical fiber as its working medium. Combined with high-precision dispersion compensation technology and an active servo control system, it achieves stable output of 1-watt average power femtosecond pulsed lasers in the 1.5μm band. Its high power, narrow pulse width, complete self-starting, and maintenance-free stability make it widely applicable in optical frequency combs, supercontinuum spectroscopy, and terahertz (THz) applications.
[Features]
Narrow pulse width
Fully self-starting
High power
[Application]
Optical frequency comb
Supercontinuum generation
Terahertz wave
Ultrafast laser
[Specifications]
|
Parameters
|
Unit
|
Typical Value
|
Remarks
|
|
Model
|
--
|
FSPL-1560-120-800/1000-80/100-FS-B4 |
|
|

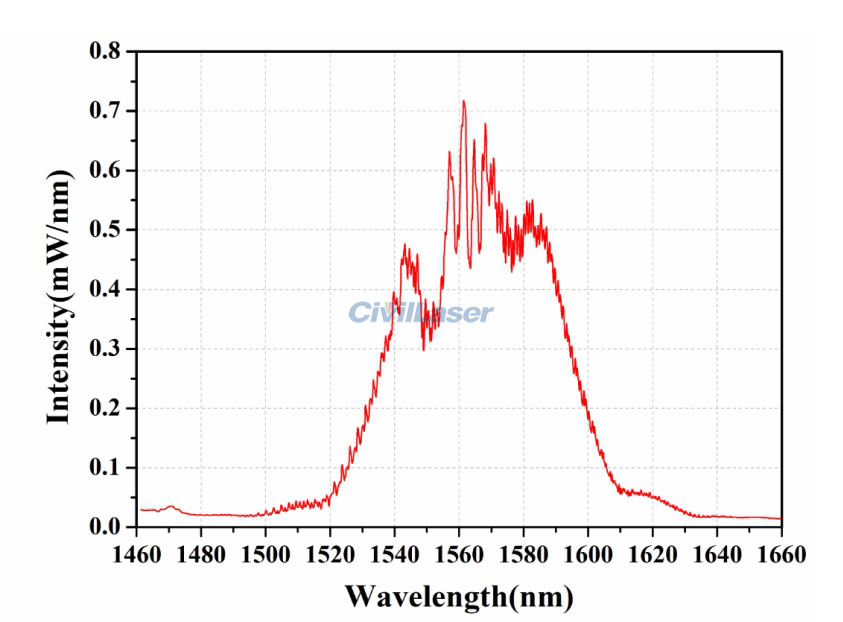

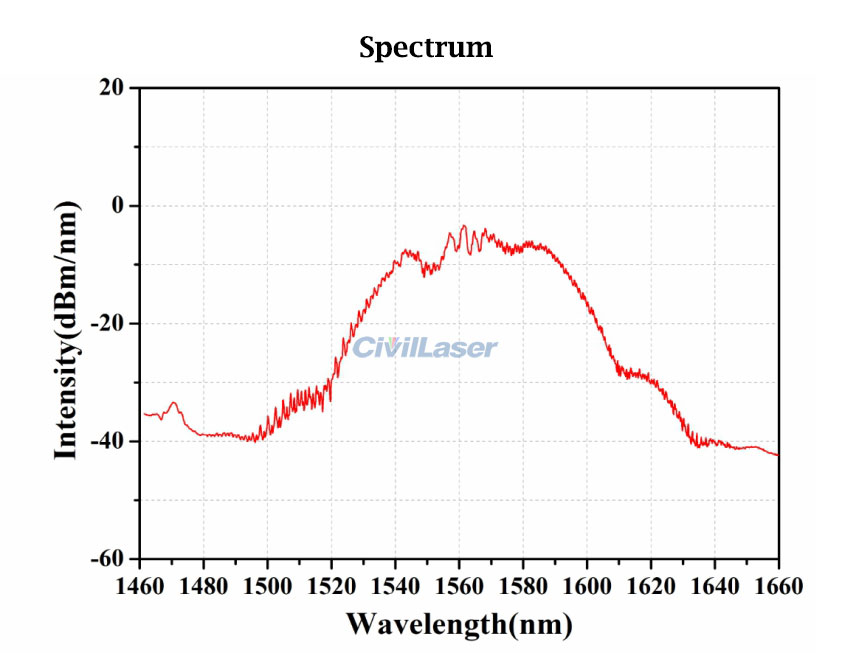

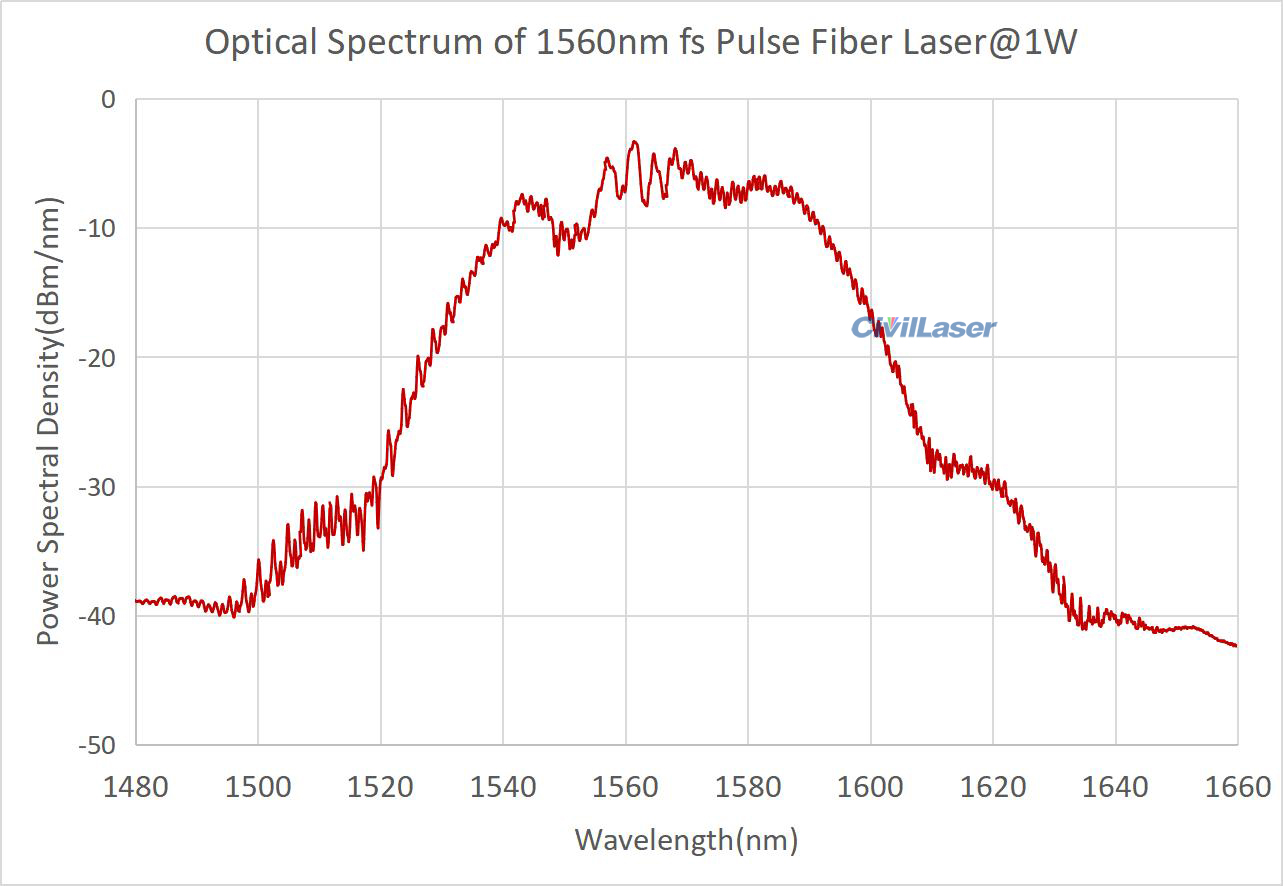

Center Wavelength
|
nm |
1560 ±10 |
|
|

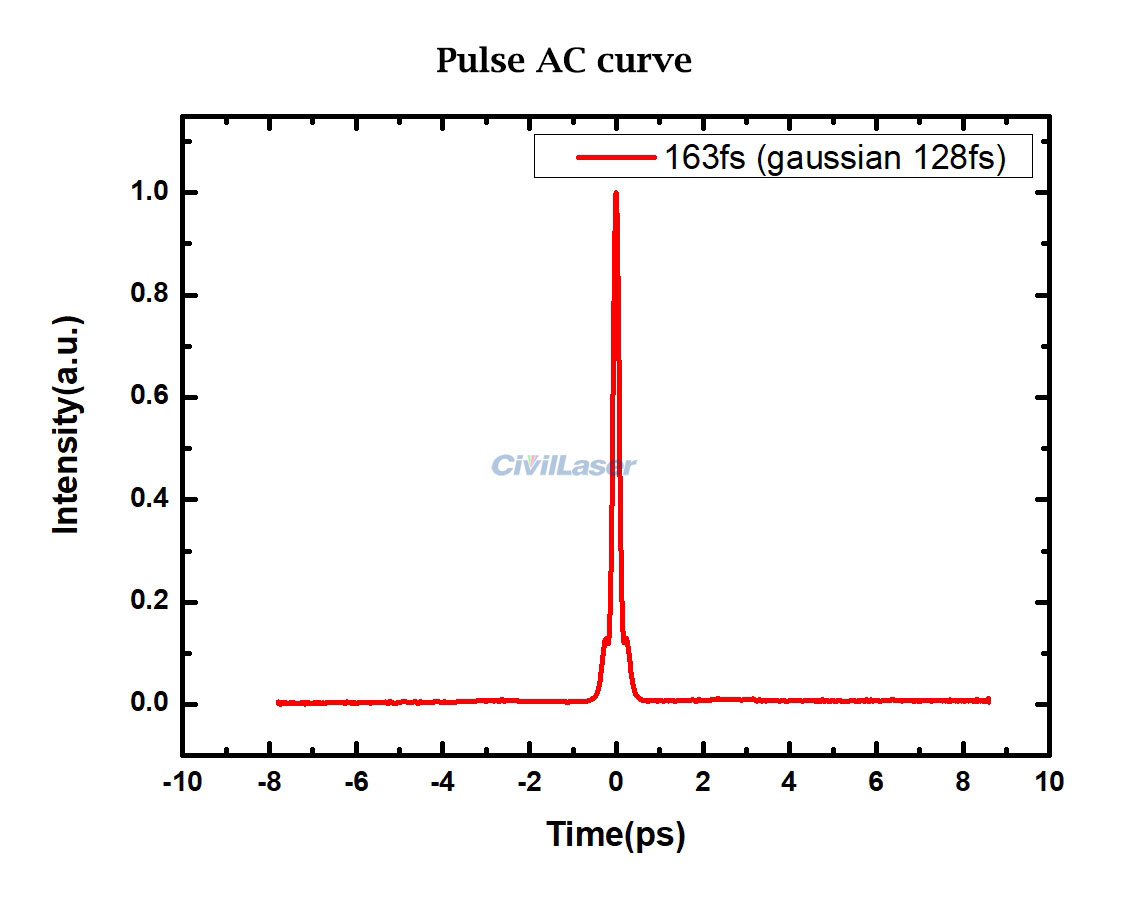

Pulse Width
|
fs |
≤120 |
Customizable |
|

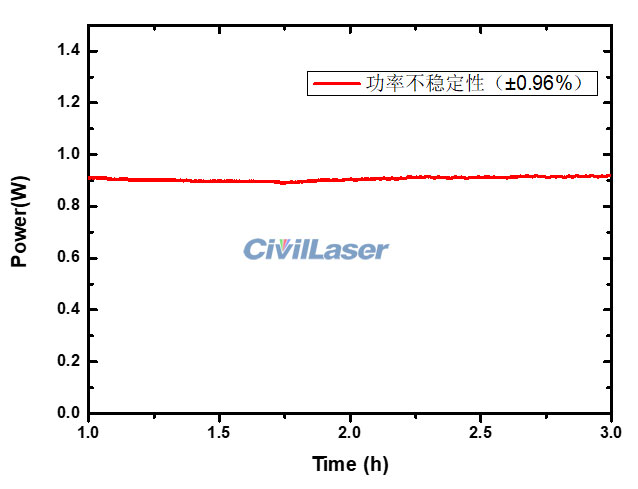

Power Instability
|
-- |
< ±1% |
6hours@25°C |
|
Average Power
|
mW |
≥800 |
≥1000 |
Customizable |
|

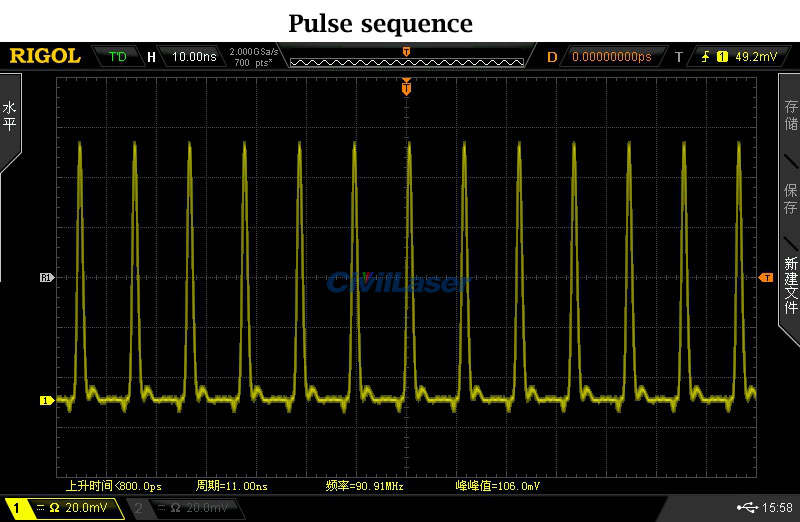

Repeat Frequency
|
MHz |
80 |
100 |
Customizable |
|
Single Pulse Energy
|
nJ |
>10 |
|
|
Laser Polarization State
|
-- |
Linear polarization, PER>20dB |
Vertical polarization |
|
Laser Output Mode
|
-- |
Space light |
|
|
Beam Quality
|
-- |
M2<1.2 |
TEM00 |
|
Beam Diameter
|
mm |
≤1.6 |
* 1/e2 Waist Diameter |
|
Beam Divergence Angle
|
mrad |
<1.5 |
|
|
Preheat Time
|
min |
< 0.5 |
|
|
Net Weight
|
kg |
≤ 5
|
|
|
Electrical and environmental parameters
|
Desktop Type
|
|
Control method
|
Touch screen/RS232 serial communication
|
|
Synchronous Electrical Signal Interface
|
SMA
|
|
Power supply
|
AC 100~240V
|
|

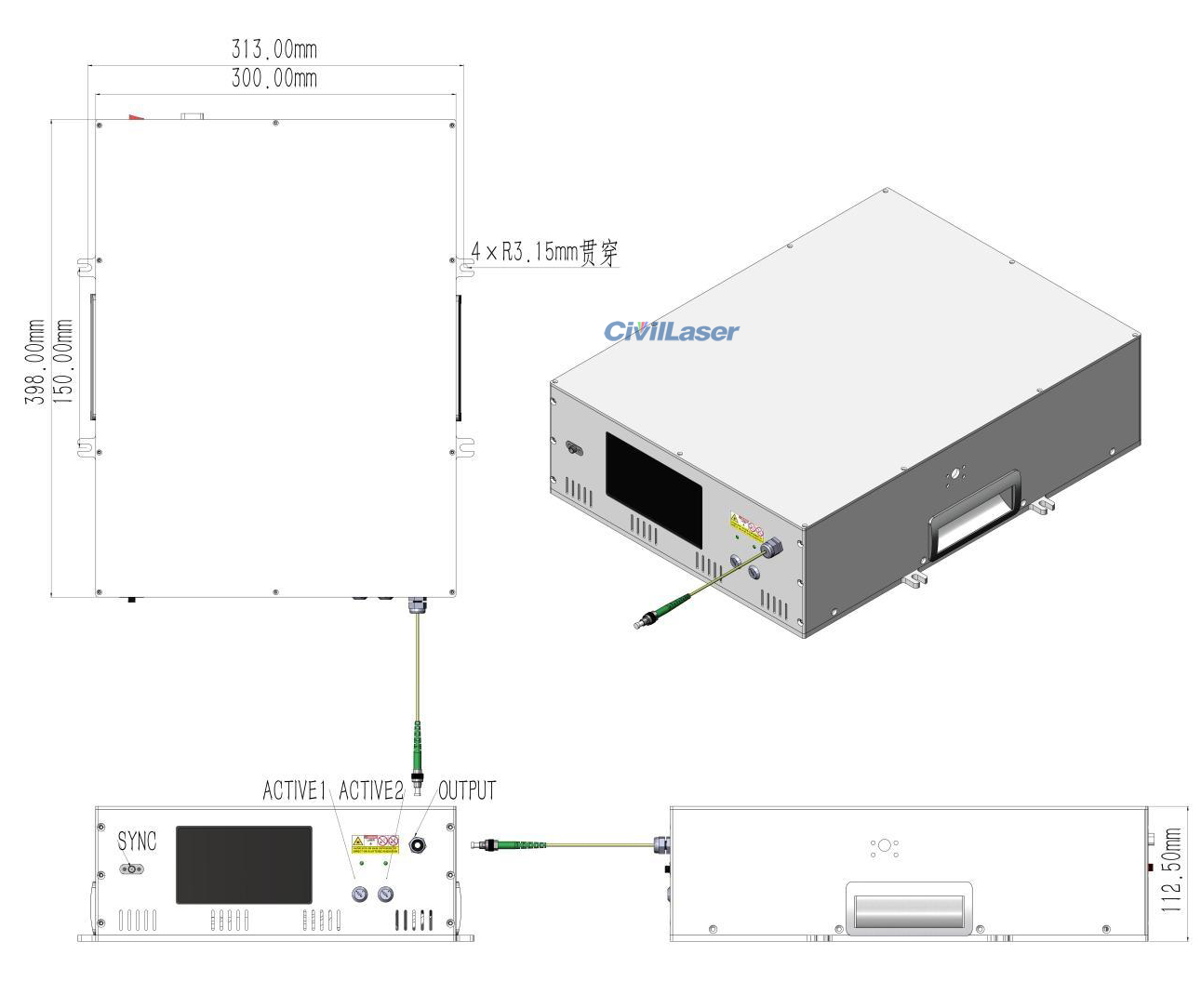

Size
|
300(W)×398(D)×112.5(H) mm
|
|
Operating temperature range
|
5~+35°C
|
|
Operating humidity range
|
0~70%
|
