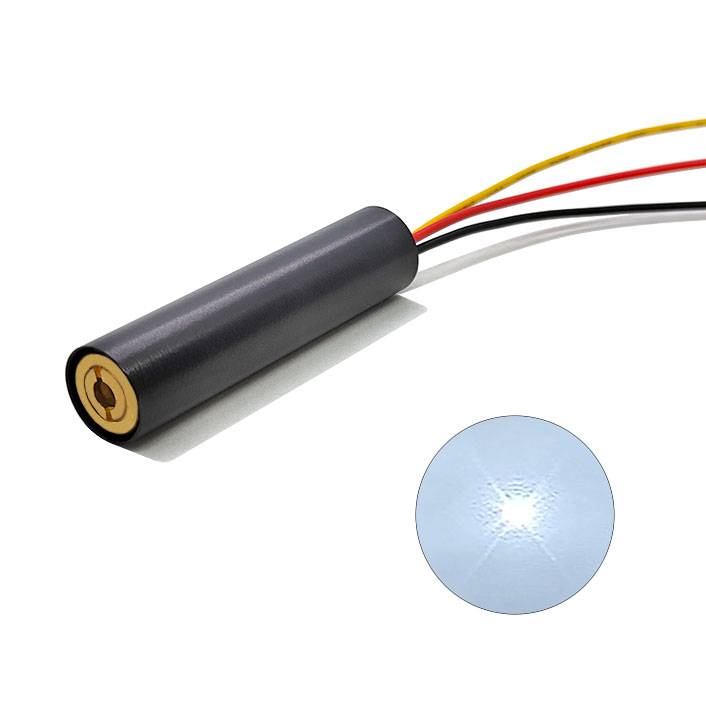

850nm 5mW-2200mW Infrared Laser Module Dot Focus adjustable TTL modulation

850nm 10mW-2200mW Infrared Laser Module Dot Focus adjustable TTL modulation

[Features]
Continuous laser with TTL modulation 1-100KHz(Adjustable)
Stability is particularly high can open 24 hours a day
The greater power point more light irradiation distance farther
Intelligent feedback control circuit, transmission optical system
Low power high performance optical output power stability

[Specifications]
Output Wavelength:850nm
Output Power: 5mW~2200mW (Choose)
Operating Voltage: 2.8-3.2V
Spot Mode:dot ( focus adjustable)

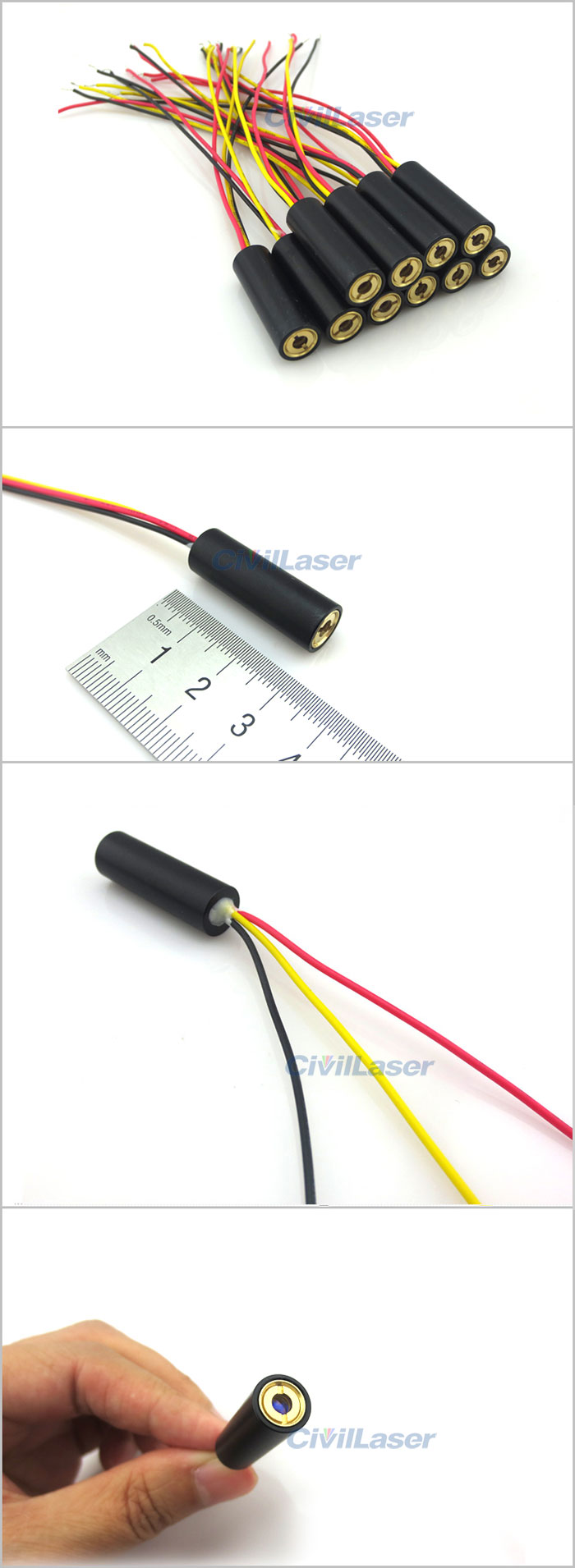

Laser Diamension (customizable):
5~100mW: 10*30 mm
200~300mW: 12*50 mm
500~2200mW: 16*60 mm

[Package includes]
1 x IR laser module

[Tips]
This product requires specialized camera equipment to observe

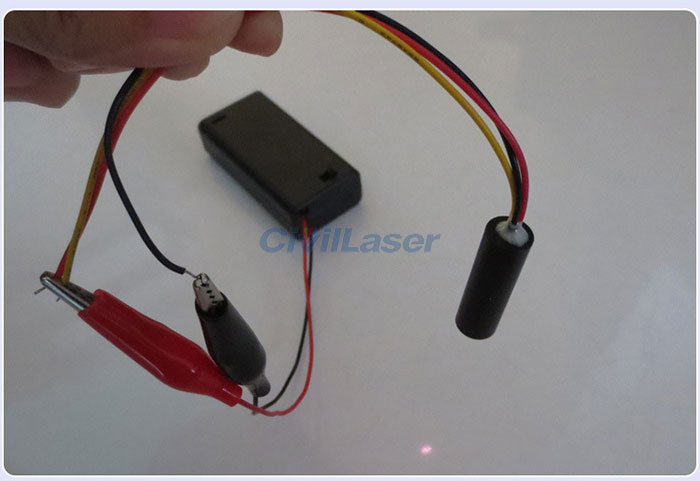

The red line is connected with a power supply cathode
The black line is connected with a power supply anode,
Yellow with TTL modulation signal
