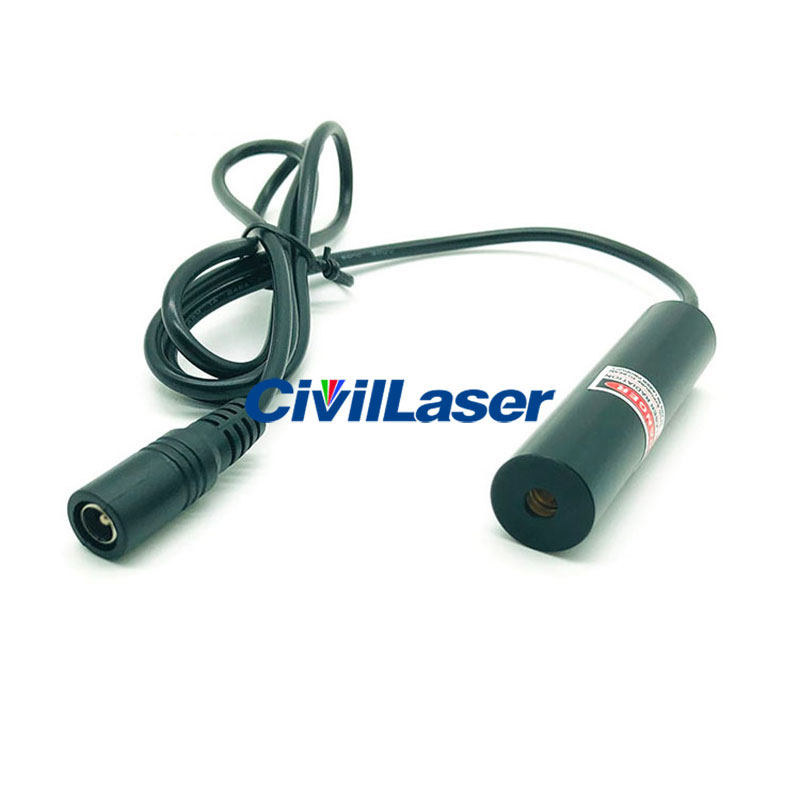

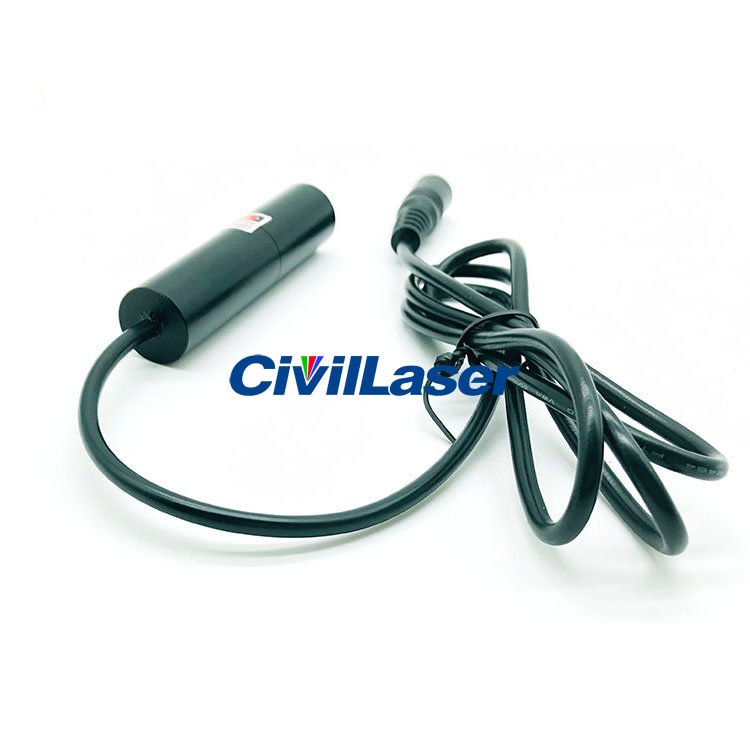

25 Lines Parallel laser light 660nm 200mw Red laser Multi line scan parallel line 3D scanning

25 Lines Parallel laser light 660nm 200mw Red laser Multi line scan parallel line 3D scanning

SPECIFICATIONS:
Items: HC660200R254
Shell Material: AL 6063 T1
Aperture: Φ6mm
Lead Length: 1m DC(Default)
Mode: CW
Wavelength: 660nm(±5nm)
Divergence Angle: 27 degree
Lens: import DOE
Output Power:<200mw
Operating Voltage: 5V
Operating Current: <280mA
Operating Temperature: -10°~+50°
Storage Temperature: -40°~+80°
Wavelength Drift(nm/°C）: <5%
Housing Material: Environmental protection aluminum
Mean time to failure: >10000H
Laser Safety: Class ⅢB
Lens: Glass
Diameter x Length:  16*70mm
Driver circuit: ACC
