14-PIN 1550nm 10mW 20mW 9μm Single-mode DFB Laser Diode

14-PIN 1550nm 10mW 20mW 9μm Single-mode DFB Laser Diode

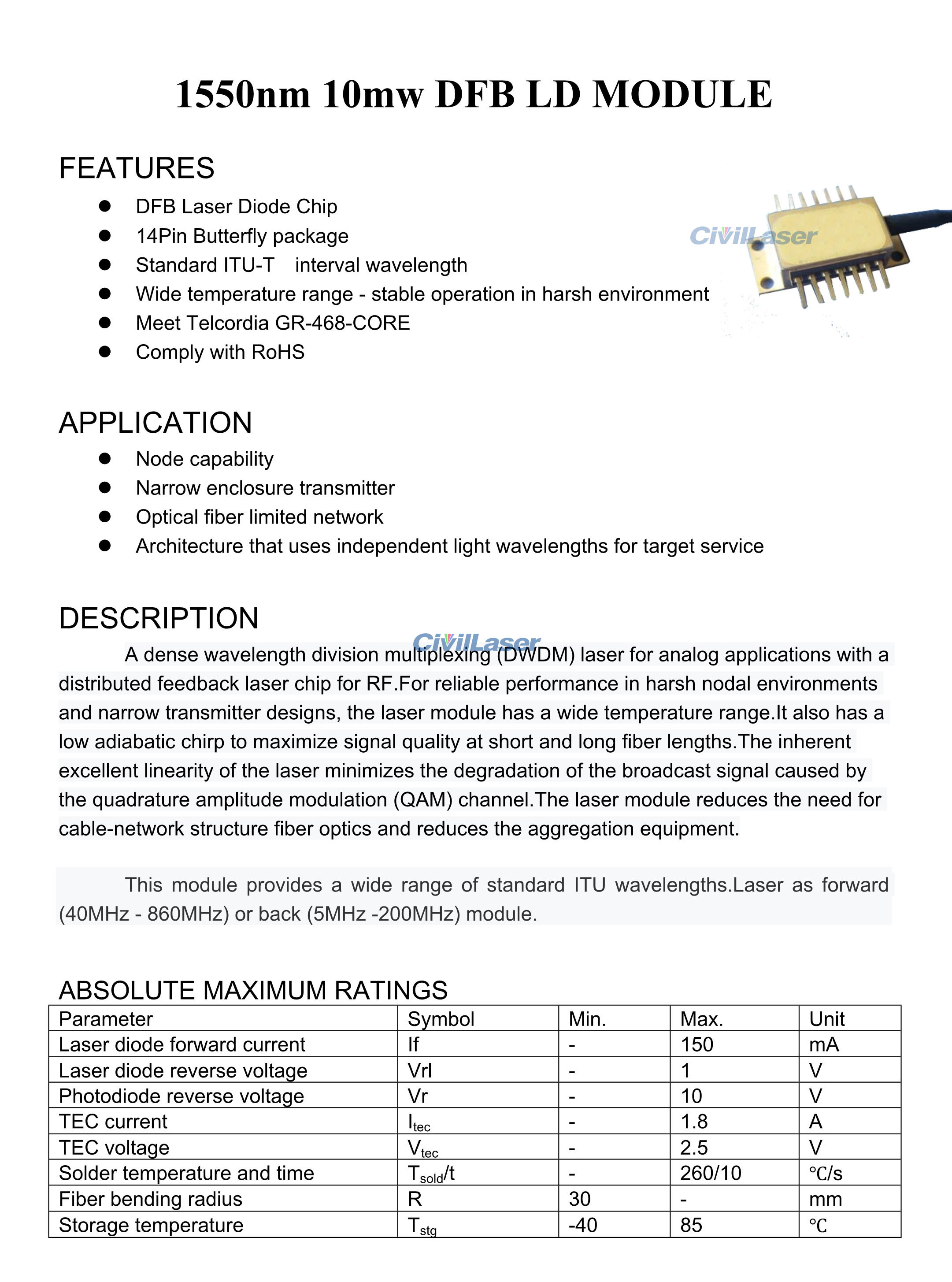

[Features]
1. DFB laser diode chip.
2. 14 PIN butterfly package.
3. Standard ITU-T interval wavelength.
4. Wide temperature range - stable operation in harsh environment.
5. Meet telcordia GR-468-CORE.

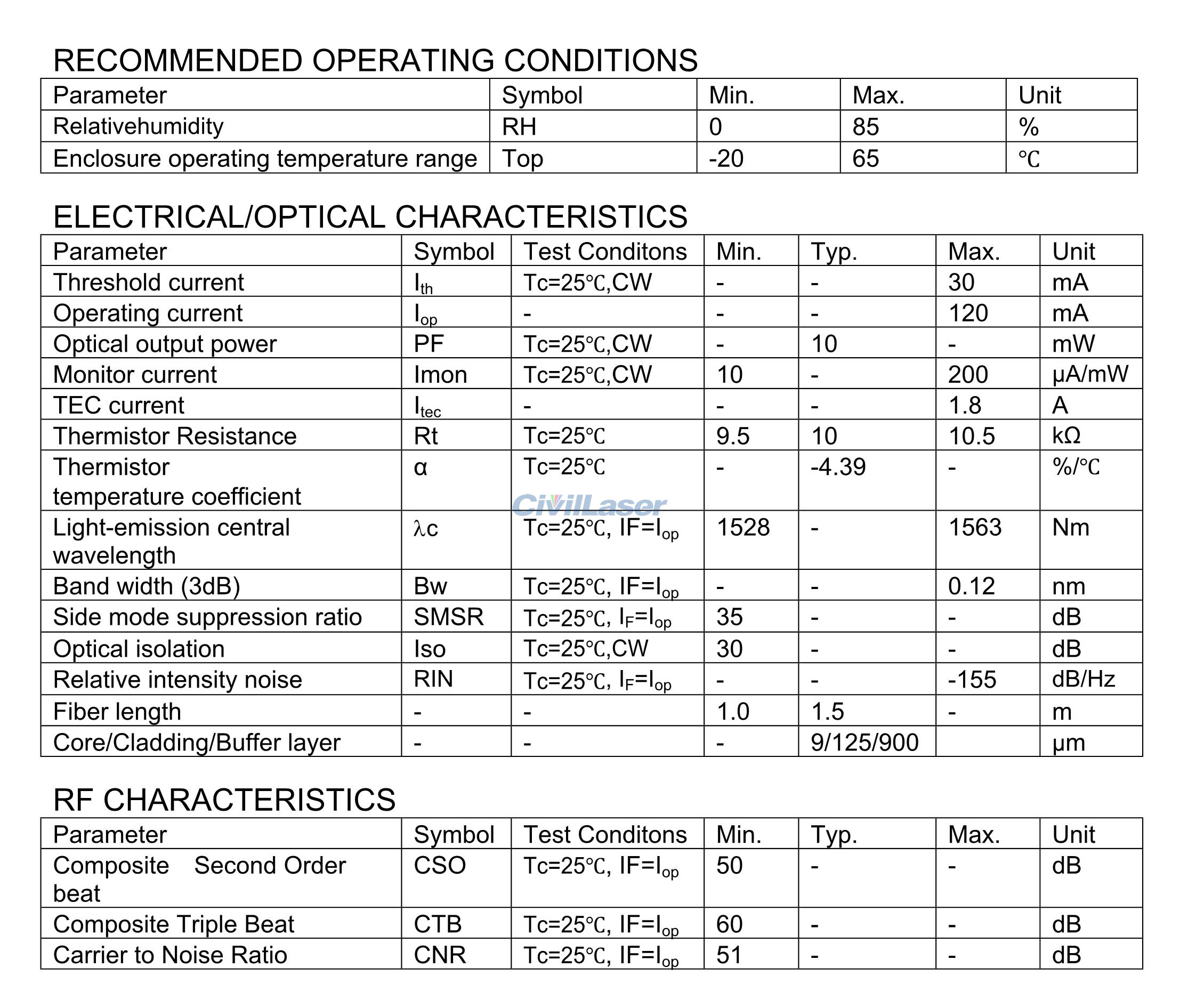

[Specification]
Product Name: 1550nm pigtailed laser
Lead Time: 1~2 weeks
Wavelength: 1550nm
Output Power: 10mW / 20mW (at fiber ouput) (Choose)
Fiber Type: 9μm Single-mode fiber/SM fiber
Fiber Interface(output): FC/PC, FC/APC, SMA905(Choose)
Fiber Length: 1m (Default)
Fiber Numerical Aperture: NA =0.13

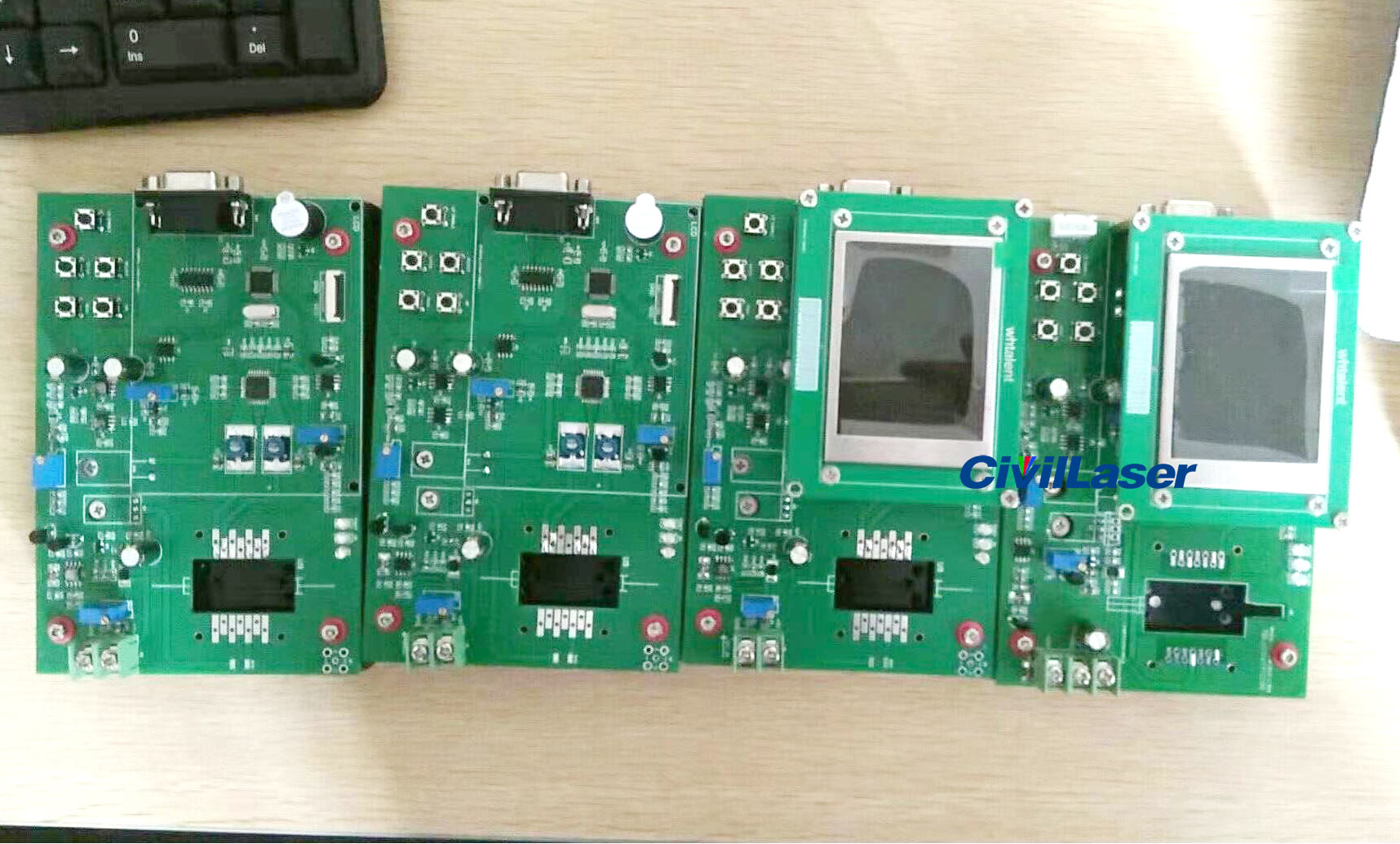

Driver Circuit: Not Include / Include (Choose)
Storage Temperature: -40~85℃
Warranty: 1 Year
