800nm~1700nm 6GHZ Analog InGaAs PIN Photodiode TO46 Package

[Features]
High reliability, low dark current.
800-1700nm spectral range.
-3dB Bandwidth up to 6GHZ.
Hermetic TO46 Can or with receptacle or with fiber coupling.

[Applications]
Industrial automatic control
Science analysis and experiment
Analog CATV
Fiber communication
Fast optical pulse testing
OTDR
Optical fiber sensor

Absolute maximum ratings:

Parameter Symbol Value Unit
Operating temperature Top -40~+85
Storage temperature Tstg -40~+100
Forward current If 3 mA
Reverse Voltage Vr 20 V
Soldering temperature(time) Ts(10s) 260


Electrical and optical characteristics:(T=25℃)

Parameter Symbol Unit Typical Value
Active diameter Φ μm 40
Spectral range λ nm 800-1700
Responsivity Re (VR=5V, λ=1310nm) mA/mW 0.80
Re (VR=5V, λ=1550nm) mA/mW 0.85
Response time Tr (RL=50Ω,VR=5V) ps 60
Band width(-3dB) BW(RL=50Ω,VR=5V) GHZ 6
Dark current Id (VR=0V) pA 0.15
Id (VR=5V) pA 20
2nd Order Inter-modulation distortion CSO(Two tones, RL=50Ω,1mW, VR=5V ) dBc -75
Reverse Breakdown voltage VBR (IR=10μA) V 40
Junction capacitance Cj (f=1MHz, VR=0V) pF 100
Cj (f=1MHz, VR=5V) pF 0.4
Saturated Optical Power Ps(VR=5V) mW 3
Operating voltage VR V 0-10
Shunt resistance Rsh (VR=10mV) 75

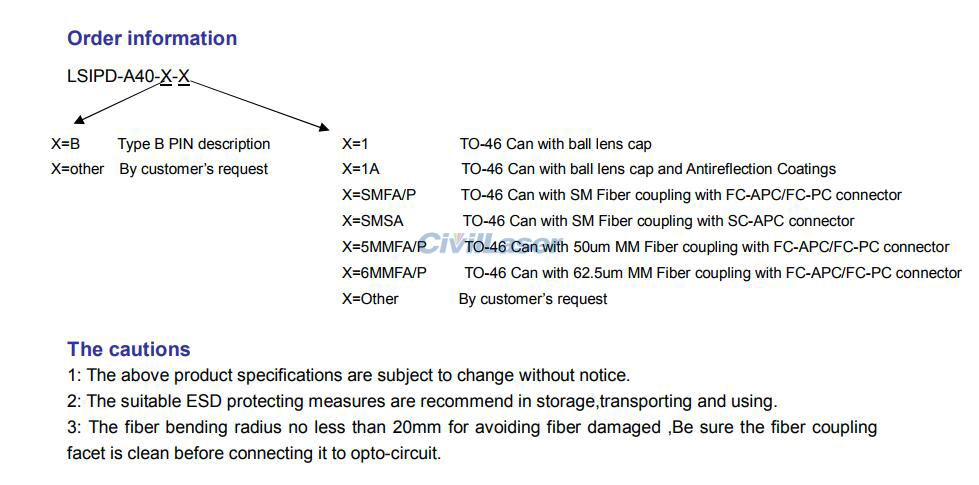

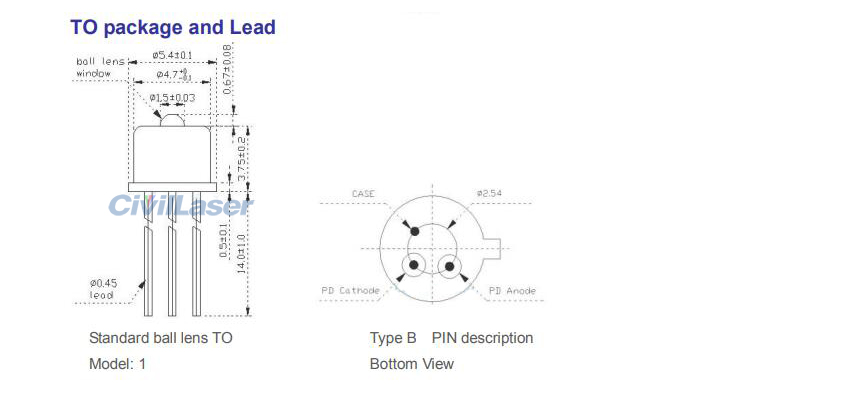

Package Hermetic TO46 Can package or fiber coupling.


Note:
(1) The default is TO46 Can package, please contact us if you need other intrefaces.
(2) If the quantity you ordered is less than 10 or far more than 10, the sales price is different, Pleas contact us.
(3) Delivery time: We have a small amount of commonly used PD. When the quantity is large, it needs to be re-produced, generally 1 to 3 weeks, different models have different delivery cycles.
