800-1700nm 2.5GHZ Anolog InGaAs PIN Photodiode TO46 Package

$10.00

Add to Cart:
Min:  10

800-1700nm 2.5GHZ Anolog InGaAs PIN Photodiode TO46 Package

[Features]
High reliability, low dark current.
800-1700nm spectral range.
-3dB Bandwidth up to 2.5GHZ。
HermeticTO46 Can or with receptacle or with fiber coupling.

[Applications]
Analog CATV and Fiber communication.
Fast optical pulse testing.
OTDR, Optical sensor.
Industrial automatic control.
Science analysis and experiment.

Absolute maximum ratings:

Parameter Symbol Value Unit
Operating temperature Top -40~+85
Storage temperature Tstg -40~+100
Forward current If 4 mA
Reverse Voltage Vr 20 V
Soldering temperature(time) Ts(10s) 260


Electrical and optical characteristics:(T=25℃)

Parameter Symbol Unit Typical Value
Spectral range λ nm 800-1700
Active diameter Φ um 75
Responsivity Re (VR=0V, λ=1310nm) mA/mW 0.85
Re (VR=0V, λ=1550nm) mA/mW 0.90
Response time Tr (RL=50Ω,VR=5V) ps 140
Band width(-3dB) BW (RL=50Ω,VR=5V) GHZ 2.5
Dark current Id (VR=0V) pA 0.2
Id (VR=5V) pA 30
Reverse Breakdown voltage VBR (IR=10μA) V 40
Junction capacitance Cj (f=1MHz, VR=0V) pF 400
Cj (f=1MHz, VR=5V) pF 1
Saturated Optical Power Ps(VR=5V) mW 3.5
2nd Order Inter-modulation distortion CSO(Two tones, RL=50Ω,1mW, VR=5V ) dBc -75
Operating voltage VR V 0-10
Shunt resistance Rsh (VR=10mV) 50

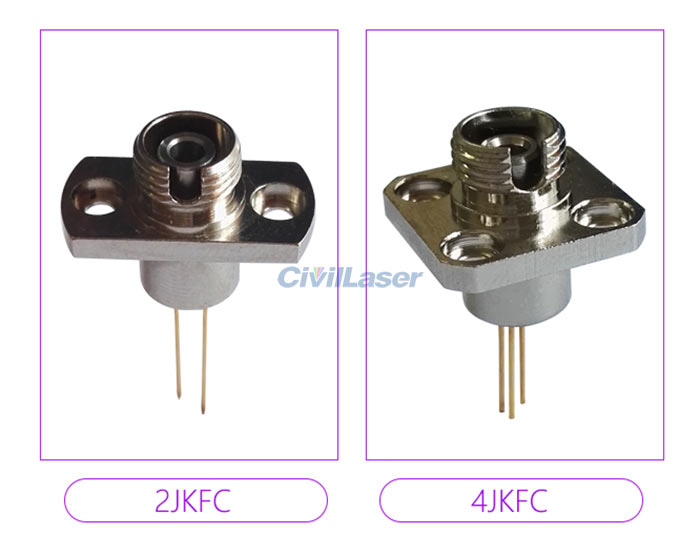

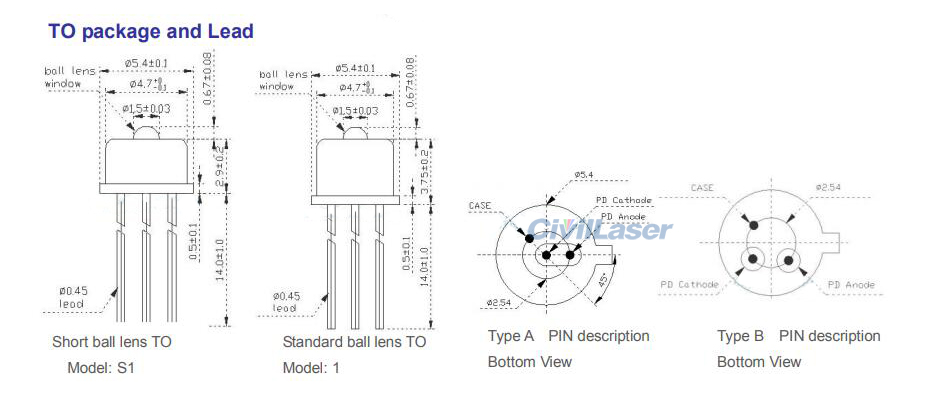

Package HermeticTO46 Can or with receptacle or with fiber coupling.


Note:

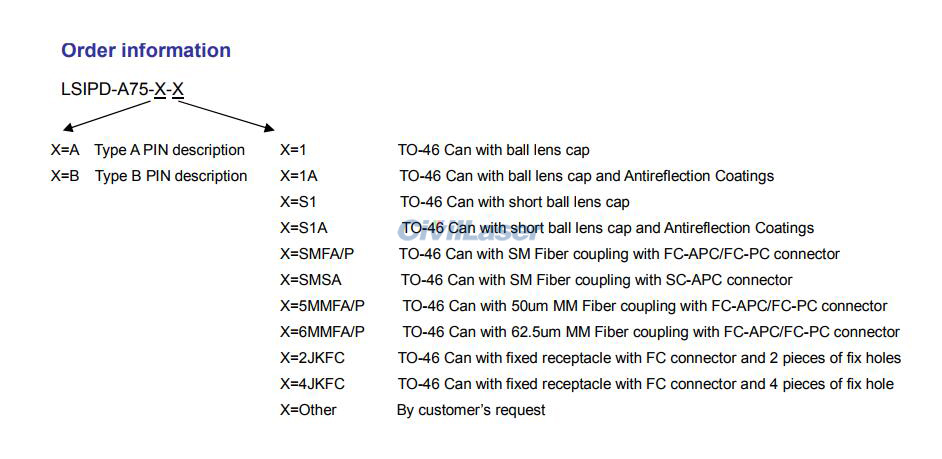

(1) The default is TO46 Can package, please contact us if you need other intrefaces.
(2) If the quantity you ordered is less than 10 or far more than 10, the sales price is different, Pleas contact us.
(3) Delivery time: We have a small amount of commonly used PD. When the quantity is large, it needs to be re-produced, generally 1 to 3 weeks, different models have different delivery cycles.
