400mw~500mw White laser module RGB laser beam compose the white laser -- with TTL modulation

Starting at: $189.00

Please Choose:



Add to Cart:


500mw White laser module RGB laser beam compose the white laser -- with TTL modulation

This laser module does not include the power source, but with a DC port and the positive and negative power lines,

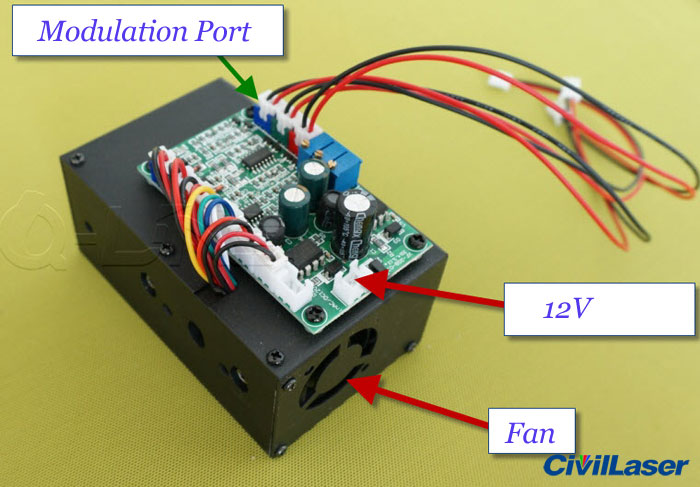

Users only need to connect the 12V power supply to work properly issued laser according to the occasion;

This product is no time limit,can working long time, you can open a long time. it comes with fan cooling;


A circuit board is fixed together with the host, so more portable than split modules on the market, more reliable!


SPECIFICATIONS:
Name: White laser module

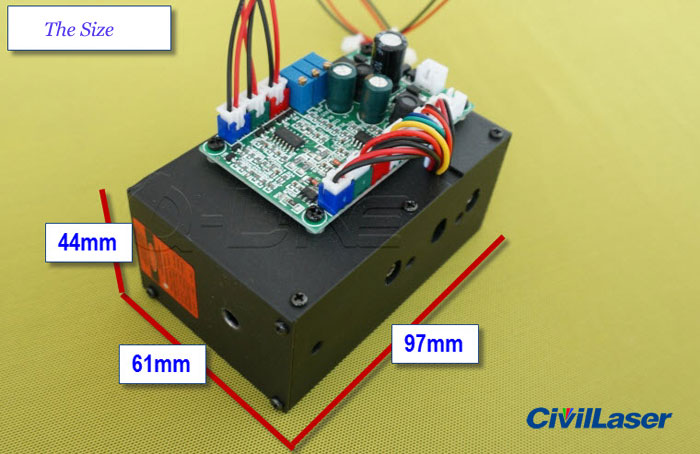

Host Size: 97mm x 61mm x 44mm
Circuit board Size: 72.5mm x 43.5mm x 23mm
Output Wavelength: 450nm/100mw & 658nm/220mw & 532nm/130mw
Output Power: 400mw~500mw

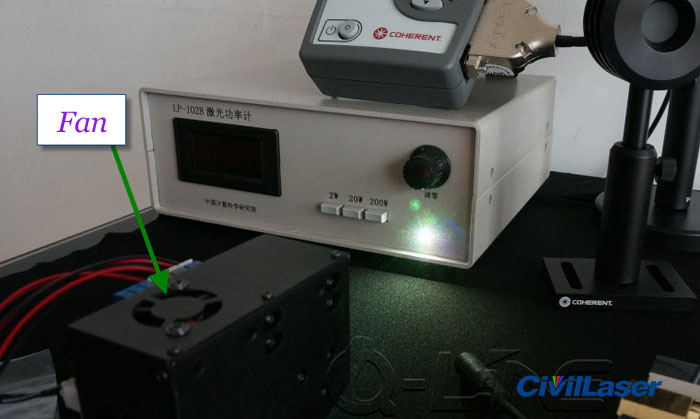

Heat dissipation method: Aluminum heat sink +  fan cooling
Modulation: TTL modulation
Outside Color: Black
Beam Divergence: 2.5mard
Host body Material: Aluminum
Circuit control: constant current
Anti Access Protection: Include
Operating Voltage: DC 12V
Operating Current: I<1.5A
Warm-up Time: 0
Operating Temperature: -10℃~40℃
Storage Temperature: -10℃~40℃
Structural features: laser diode + lens + driver protection circuit + shell +  fan cooling
Power: Not inlcude
