400nm~1100nm 6mm Silicon PIN Photodiode TO8 Can package
[Features]
High reliability, low dark current.
400-1100nm spectral range.
405nm responsivity about 0.2mA/mW
Active diameter 6x6mm.
Hermetic TO8 Can package or with receptacle.
[Applications]
Optical sensor
Optical measurement equipment
Industrial automatic control
IR/ Laser light Monitoring
Fluorescence detector
Medical equipment
Spectrophotometry/CT scan
Absolute maximum ratings:
| Parameter |
Symbol |
Value |
Unit |
| Operating temperature |
Top |
-40～+85 |
℃ |
| Storage temperature |
Tstg |
-45～+125 |
℃ |
| Reverse voltage |
Vr |
15 |
V |
| Soldering temperature(time) |
Ts（10s） |
260 |
℃ |
Electrical and optical characteristics:(T=25℃)
| Parameter |
Symbol |
Unit |
Typical Value |
| Active diameter |
Φ |
mm |
6*6 |
| Spectral range |
λ |
nm |
400-1100 |
| Responsivity |
Re (VR=5V,λ=405nm ) |
mA/mW |
0.10 |
| Re (VR=5V,λ=650nm ) |
mA/mW |
0.38 |
| Re (VR=5V,λ=850nm ) |
mA/mW |
0.55 |
| Re (VR=5V,λ=1064nm ) |
mA/mW |
0.20 |
| Dark current |
ID(0V) |
nA |
0.05 |
| ID(5V) |
nA |
1.2 |
| Reverse Breakdown voltage |
VBR (IR=10uA) |
V |
60 |
| Junction capacitance |
Cj (f=1MHz, VR=0V) |
pF |
3000 |
| Cj (f=1MHz, VR=5V) |
pF |
600 |
| Saturated Optical Power |
Ps(VR=0V) |
mW |
5 |
| Ps(VR=5V) |
mW |
25 |
| Operating voltage |
VR |
V |
0-10 |
| Shunt resistance |
Rsh (VR=10mV) |
MΩ |
200 |
| package |

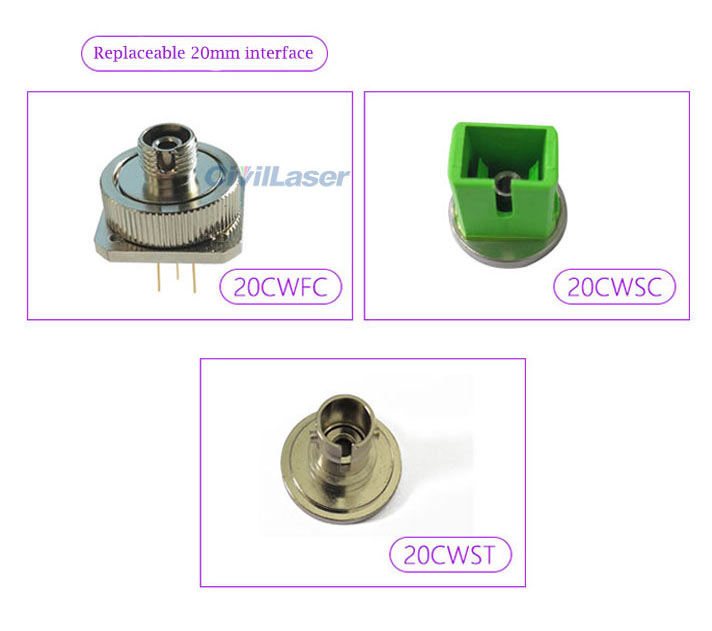

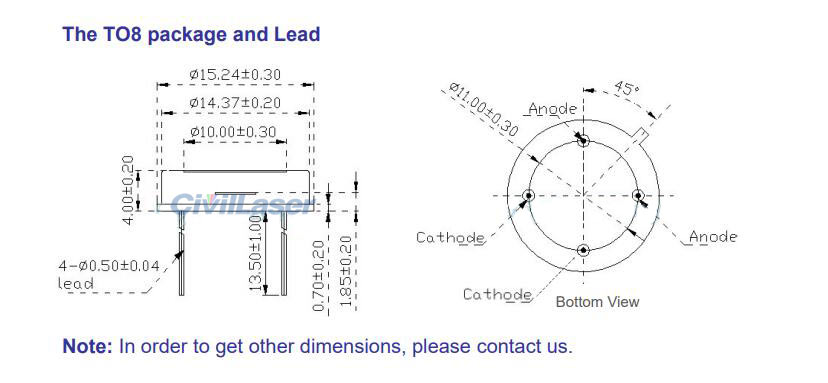

Hermetic TO8 Can package or with receptacle. |

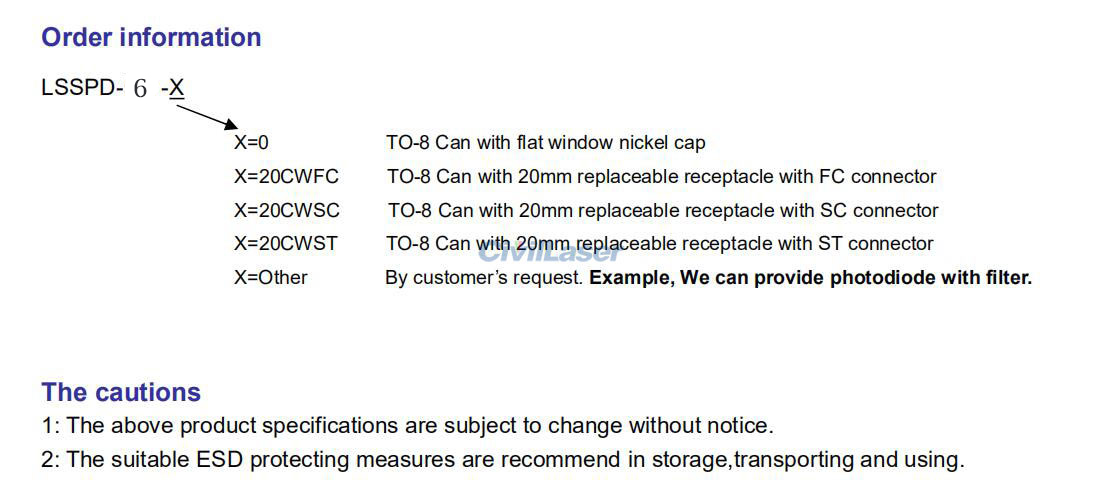

Note:
(1) The default is TO-8 Can package, please contact us if you need other models.
(2) If the quantity you ordered is less than 10 or far more than 10, the sales price is different, Pleas contact us.
(3) Delivery time: We have a small amount of commonly used PD. When the quantity is large, it needs to be re-produced, generally 1 to 3 weeks, different models have different delivery cycles.
