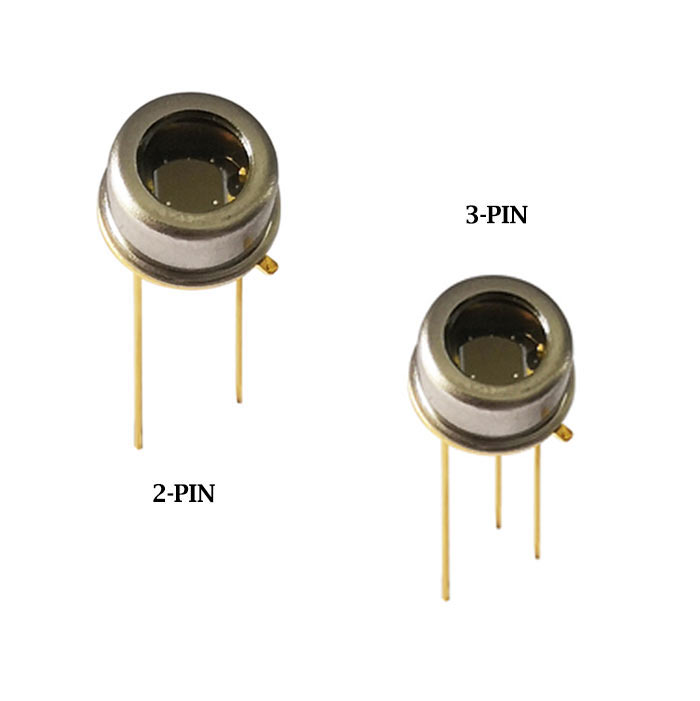

200nm~1100nm 1.2mm Silicon PIN Photodiode UV Photodetector Low Dark Current

Starting at: $20.00

Please Choose:



Add to Cart:
Min:  5

200nm~1100nm 1.2mm Silicon PIN Photodiode UV Photodetector Low Dark Current

[Features]
High reliability, low dark current.
200-1100nm spectral range.
Active diameter 1.2x1.2mm.
Hermetic TO46 Can with UV window or with receptacle.

[Applications]
Optical sensor
Optical power meter
Industrial automatic control
Science analysis and experiment
Space light detect equipment
Response spectrum testing

Absolute maximum ratings:

Parameter Symbol Value Unit
Operating temperature Top -40~+85
Storage temperature Tstg -40~+100
Forward current If 10 mA
Reverse voltage Vr 20 V
Soldering temperature(time) Ts(10s) 260


Electrical and optical characteristics:(T=25℃)

Parameter Symbol Unit Value(typ.)
Active diameter Φ mm 1.2*1.2
Spectral range λ nm 200-1100
Responsivity Re (VR=0V,λ=200nm ) mA/mW 0.08
Re (VR=0V,λ=405nm ) mA/mW 0.28
Re (VR=0V,λ=650nm ) mA/mW 0.43
Re (VR=0V,λ=905nm ) mA/mW 0.55
Re (VR=0V,λ=1064nm ) mA/mW 0.22
Response time Tr (RL=50Ω,VR=5V) ns 8
Dark current Id(VR=0V) pA 0.2
Id(VR=5V) pA 100
Reverse Breakdown voltage VBR (IR=10uA) V 40
Junction capacitance Cj (f=1MHz, VR=0V) pF 190
Cj (f=1MHz, VR=5V) pF 40
Saturated Optical Power Ps(VR=5V) mW 15
Operating voltage VR V 0-15
Shunt resistance Rsh (VR=10mV) 50

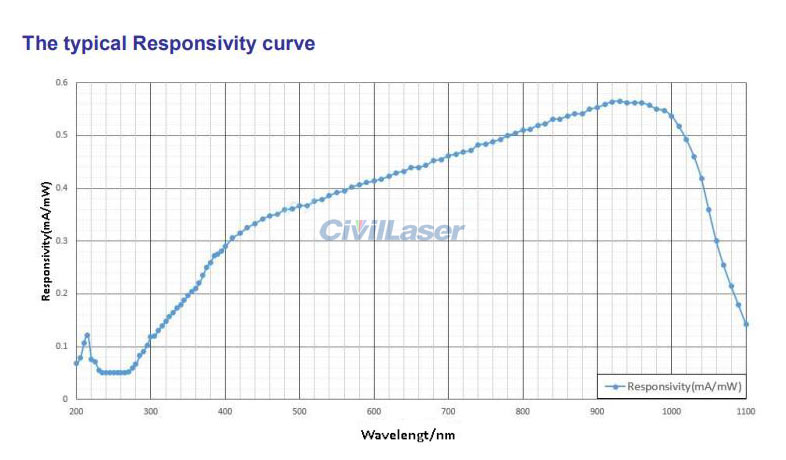

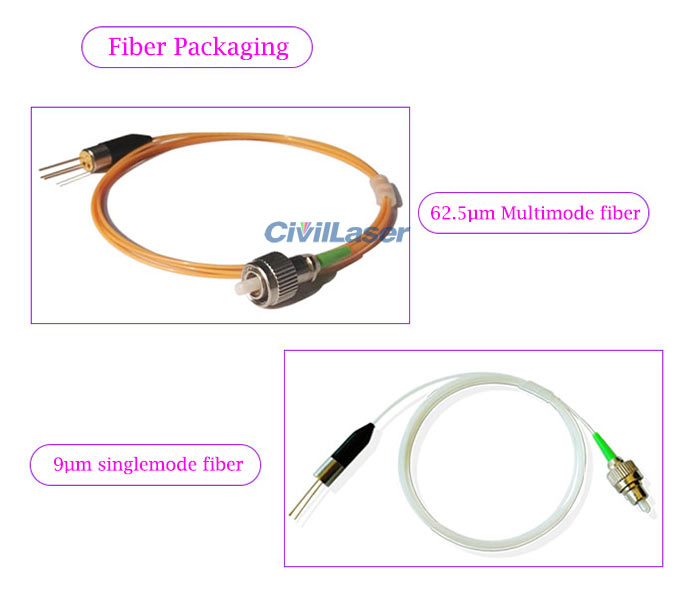

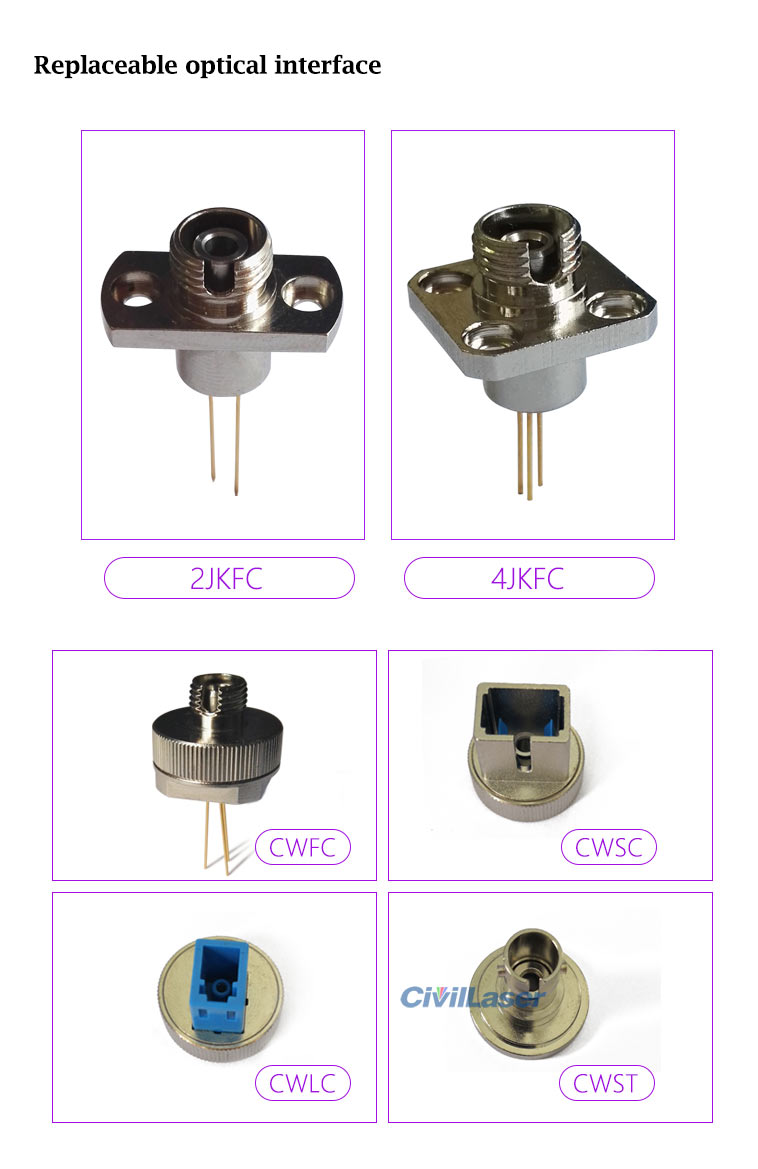

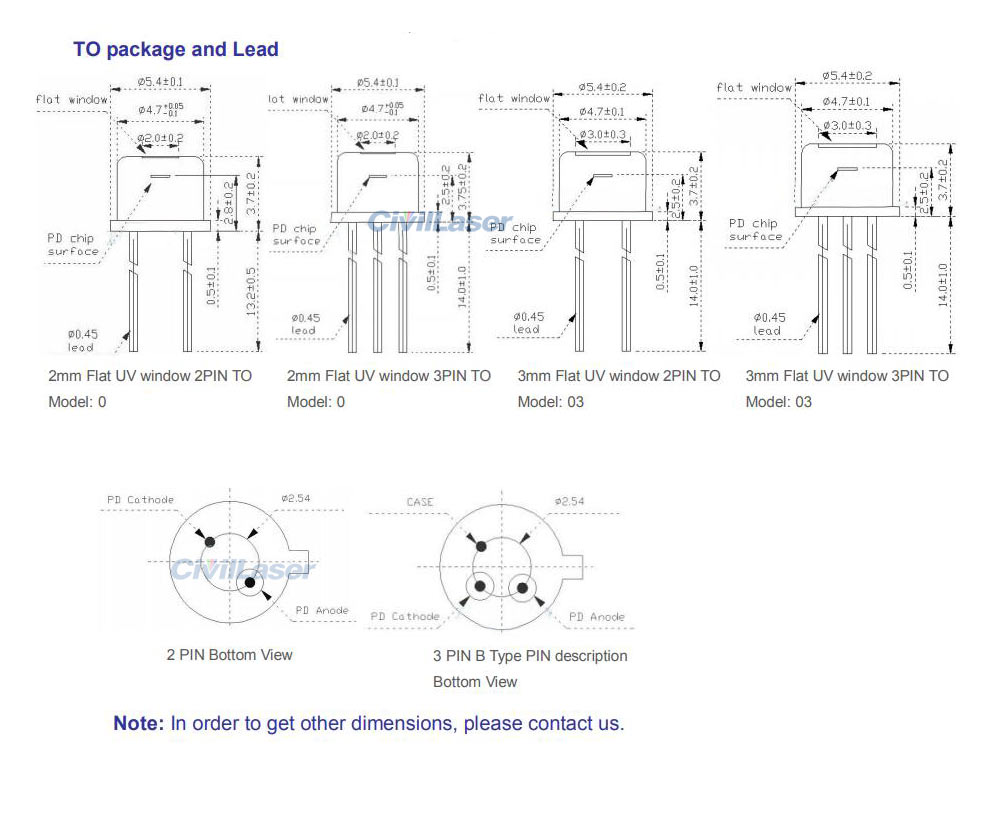

package Hermetic TO46 Can with UV window or with receptacle or fiber coupling.


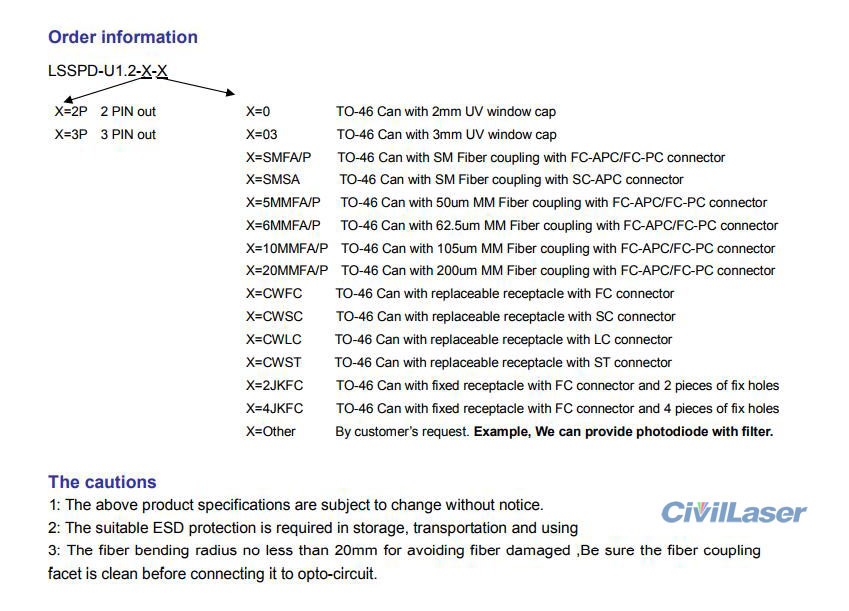

Note:
(1) The default is TO-46 Can package, please contact us if you need other models.
(2) If the quantity you ordered is less than 10 or far more than 10, the sales price is different, Pleas contact us.
(3) Delivery time: We have a small amount of commonly used PD. When the quantity is large, it needs to be re-produced, generally 1 to 3 weeks, different models have different delivery cycles.



200-1100nm photodiode
