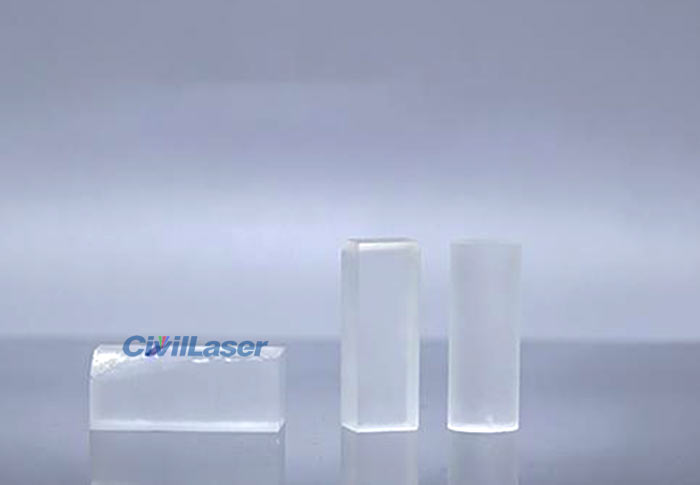

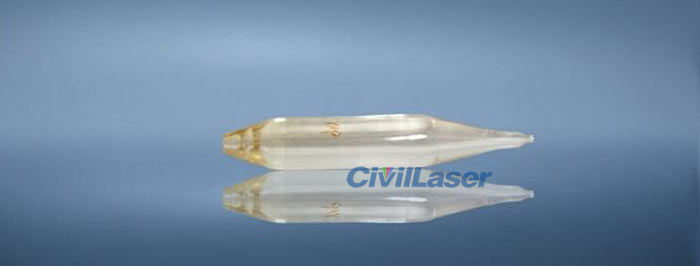

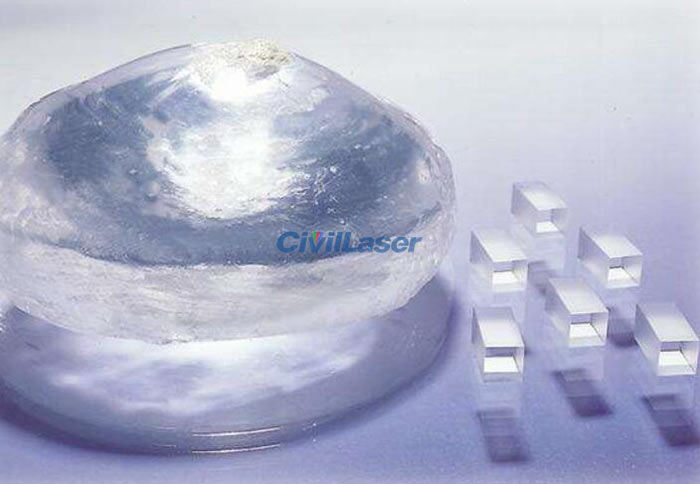

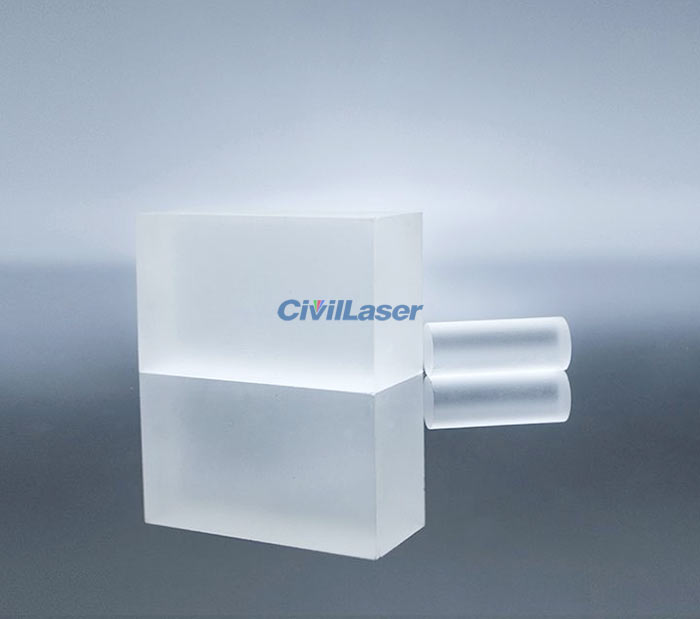

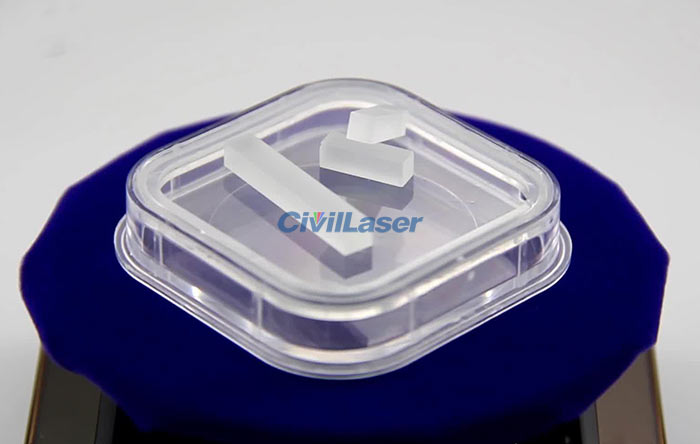

BBO Nonlinear Crystal Beta-Barium Borate Crystal Can be Customized

$55.00

Add to Cart:


BBO Nonlinear Crystal Beta-Barium Borate Crystal Can be Customized

BBO crystal is an important nonlinear optical crystals with combination of unique optical properties.Broad transmission and phase matching ranges, large nonlinear coefficient,high damage threshold and excellent optical homogeneity provide attractive possibilities for various nonlinear optical applicatios.

Note:
1. This is a customized product.
2. $55 is a deposit, not the final price of the product.
3. The main factors affecting the price: quantity, size, processing index.
4. Please provide crystal processing drawings or crystal size, membranes, quantity, processing index. (Contact us
5. Crystal customization time: 3~6 weeks.
6. Warranty: 1 year

Advantages:
1. Broad phase matching (SHG) range from 409.6nm to 3500nm.
2. Wide transmission region from 190nm to 3500nm.
3. Large effective SHG coefficient.
4. High damage threshold of 10 GW/cm2 for 100 ps pulse-widths at 1064nm.
5. High optical homogeneity with Dn 10^-6/cm².
6. Wide temperature bandwidth of about 55° (for type I SHG 1064nm).
7. Good mechanical and physical properties

BBO’s main applications:
1. SHG, THG, 4HG, 5HG of Nd lasers
2. SHG, THG, 4HG of Ti:Al2O3 and Alexandrite lasers
3. SHG, THG and Frequency-mixing of Dye lasers
4. SHG of Argon ion, Cu-vapor and Ruby lasers
5. OPA and OPO
6. Pockels' Cell

BBO specification:

Prameter Value
Tolerance of cutting angle △θ≤±0.25°,△φ≤±0.25°
Tolerance of dimension Dimension+0.0/-0.05 mm,L:±0.1mm
Flatness λ/8@ 632.8nm
Wavefront distortion λ/8@ 632.8nm
Surface quality 10/5  per MIL-O-13830A
Parallelism 10″
Perpendicularity 5′
Bevel/chamfer <0.1mm@45deg.
Chips <0.1mm
CA >95%
Coating AR/P-coating Upon customer’s request
Warranty One year under proper use


About BBO crystals price:

Size Membranes Price (1~5 pcs) Price (>10 pcs)
5*5*0.1 P-coating $275
3*3*10 P-coating $297
3*3*18/20 P-coating $552
Note For prices of other customized crystals, please contact us.
