LBO NLO Crystal Lithium Triborate Crystal Nonlinear Crystal Customizable

$55.00

Add to Cart:

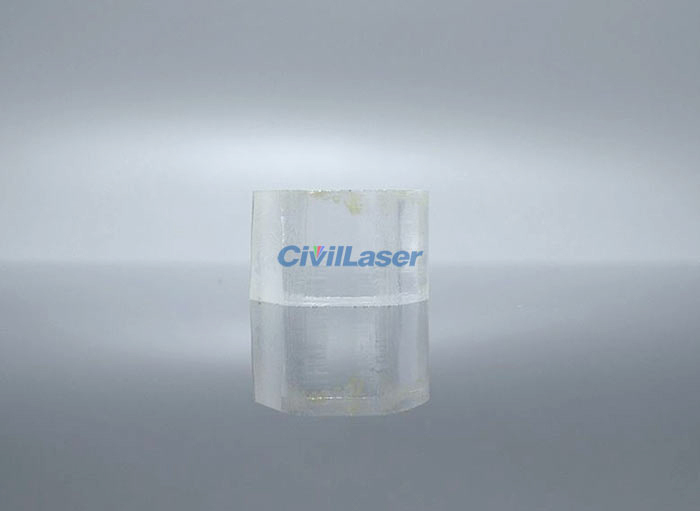

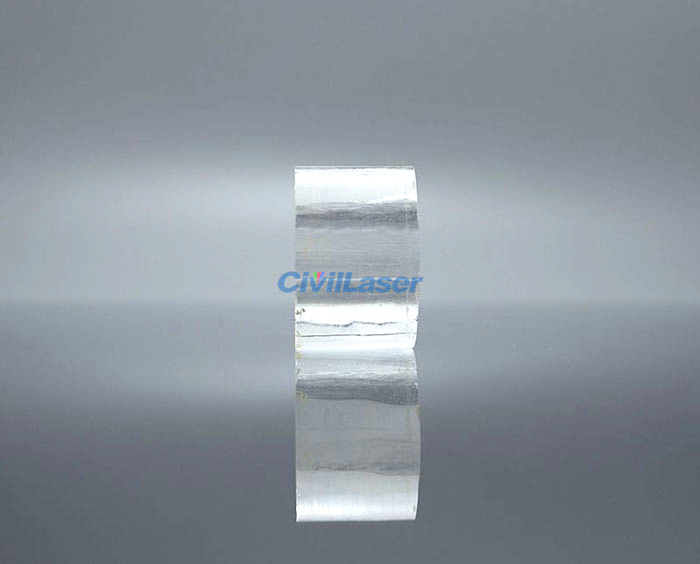

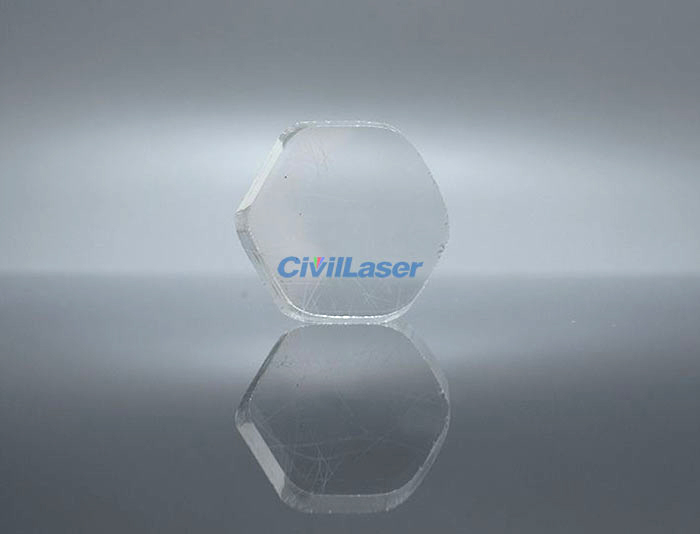

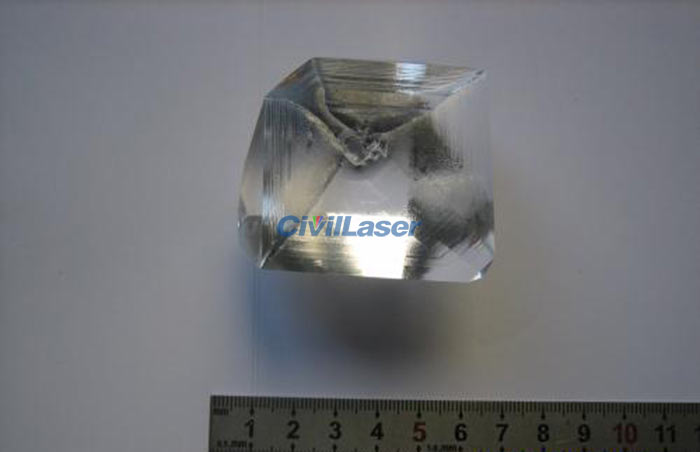

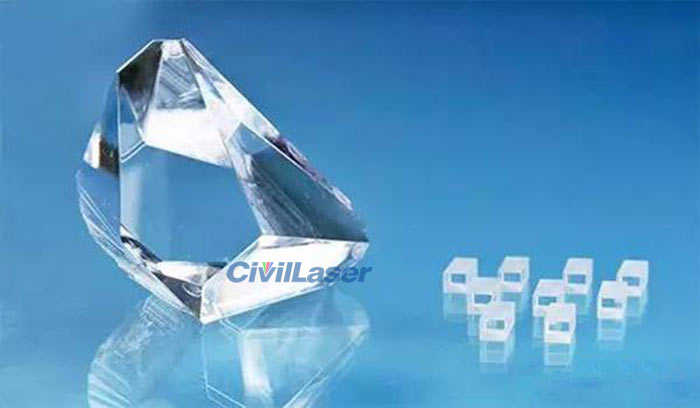

LBO NLO Crystal Lithium Triborate Crystal Nonlinear Crystal Customizable

LBO crystals is an excellent nonlinear crystal.For frequency doubling(SHG),tripling(THG) of Nd:YAG,Nd:YLF,Nd:YVO4 lasers, it is one of the most useful nonlinear optical materials in ultraviolet and visible laser applications.

Note:
1. This is a customized product.
2. $55 is a deposit, not the final price of the product.
3. The main factors affecting the price: quantity, size, processing index.
4. Please provide crystal processing drawings or crystal size, membranes, quantity, processing index. (Contact us
5. Crystal customization time: 3~6 weeks.
6. Warranty: 1 year

Advantages:
• Relatively large effective SHG coefficient (about three times that of KDP).
• Wide acceptance angle and small walk-off.
• Type I and type II non-critical phase matching (NCPM) in a wide wavelength range.
• Spectral NCPM near 1300nm.
• High damage threshold(18.9 GW/cm² for a 1.3ns laser at 1053nm).

LBO's main applications:
1. SHG, THG of Nd lasers
2. SHG of Ti:Sapphire, Cr:LiSAF and Alexandrite lasers
3. OPA and OPO

LBO has the highest damage threshold in all the commonly-used inorganic NLO crystals. Therefore, it is the best candidate for high average power SHG and other nonlinear optical processes.

Comparison of Bulk Damage Threshold (@1053nm ,1.3ns)
Crystal Energy Density (J/cm² ) Power Density (GW/cm² ) Ratio
KTP 6.0 4.6 1.00
KDP 10.9 8.4 1.83
BBO 12.9 9.9 2.15
LBO 24.6 18.9 4.10


LBO specification:

Prameter Value
Tolerance of cutting angle △θ≤±0.25°,△φ≤±0.25°
Tolerance of dimension Dimension+/-0.1 mm,L:±0.1mm
Flatness λ/8@ 632.8nm
Wavefront distortion λ/8@ 632.8nm
Surface quality 10/5  per MIL-O-13830A
Parallelism 10″
Perpendicularity 5′
Bevel/chamfer <0.1mm@45deg.
Chips <0.1mm
CA >95%
Coating AR/P-coating Upon customer’s request
Damage Threshold 750MW/CM² at 1064nm, TEM00, 10ns, 10Hz
Warranty One year under proper use


About LBO crystals price:

Size Membranes Price (1~5 pcs) Price (>10 pcs)
2*2*10 S1/S2:AR@1064nm+532nm
3*3*10 S1/S2:AR@1064nm+532nm $212 $170
3*3*18/20 S1:AR@1064nm+532nm S2:布切 $382 $318
Note For prices of other customized crystals, please contact us.
