Ti:Sapphire Crystal Titanium Doped Sapphire Laser Crystal Customizable


Ti:Sapphire crystal is the most widely used tunable solid-state laser material combining the supreme physical and optical properties with the extremely broad lasing range. Its lasing bandwidth can support pulses < 10fs making it the crystal of choice for femtosecond mode-locked oscillators and amplifiers. The absorption band of Ti:Sapphire centers at ~ 490 nm so it may be conveniently pumped by various laser sources such as argon ion lasers or frequency doubled Nd:YAG, Nd:YLF, Nd:YVO4 lasers at ~ 530nm.

Note:
1. This is a customized product.
2. $55 is a deposit, not the final price of the product.
3. The main factors affecting the price: quantity, size, processing index.
4. Please provide crystal processing drawings or crystal size, membranes, quantity, processing index. (Contact us
5. Crystal customization time: 3~6 weeks.
6. Warranty: 1 year

[Applications]
1. The tunable wavelengths that cover a broad range from 700 to 1000 nm make Ti:Sapphire an excellent substitute for dye lasers in many applications.
2. Doubling by NLO crystals such as BBO in an ultra-thin, Ti:Sapphire can be used to generate UV and DUV (up to 193 nm ) laser with ultrafast pulses below 10fs.
3. Ti:Sapphire is also widely usedas the pump source of OPOs to expand the tunable range.

Basic Properties

Chemical Formula Ti³+:Al2O3
Crystal Structure Hexagonal a=4.758, c=12.991
Density 3.98 g/cm³
Melting point 2040℃
Mohs hardness 9
Thermal conductivity 52 W/m/K
Laser action 4-level vibronic
Fluorescence lifetime 3.2µs (T=300K)
Tuning range 660 - 1050 nm
Absorption range 400 - 600 nm
Emission peak 795 nm
Absorption peak 488 nm
Refractive index 1.76 @ 800 nm



Ti:sapphire Specifications:

Prameter Value
Orientation Optical axis C normal to rod axis
Ti2O3 concentration 0.06 - 0.5wt %
Figure Of Merit (FOM) 150~250 Upon customers request
End configurations Flat/Flat or Brewster/Brewster ends
Flatness l /8 @ 633 nm
Parallelism 10 arc sec
Surface finishing 10/5 scratch/dig to MIL-O-13830A
Wavefront distortion l/4 per inch

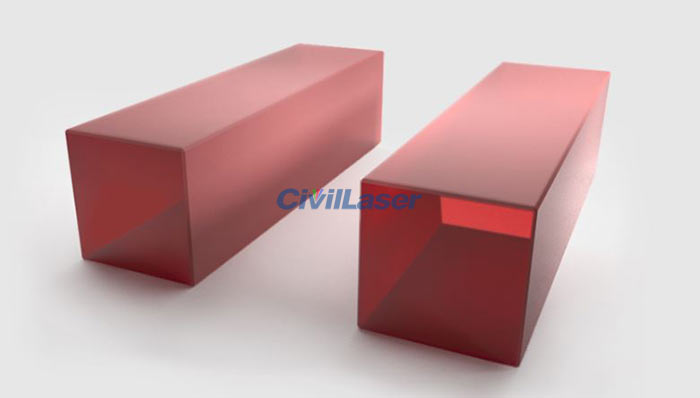

laser crystals

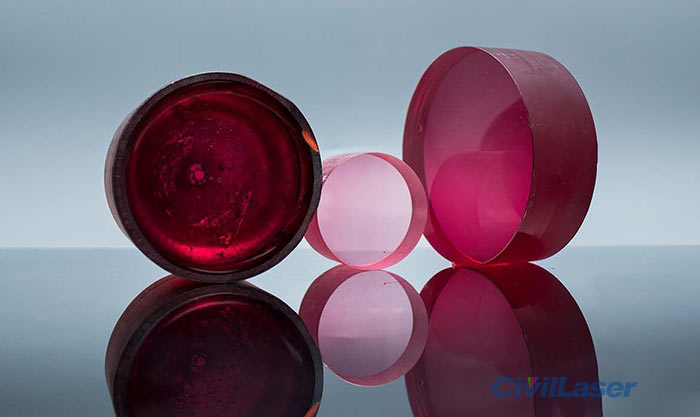

laser crystals

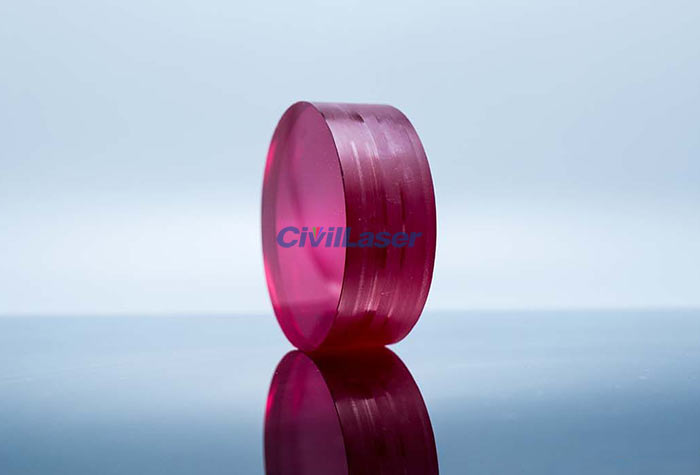

laser crystals

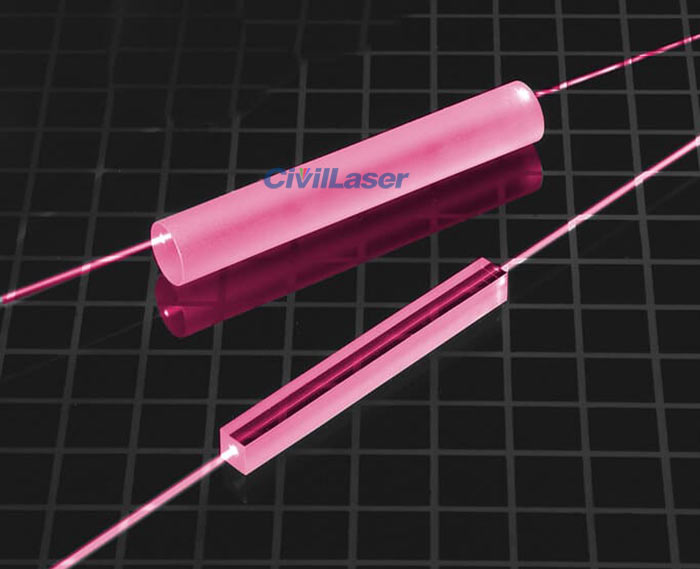

laser crystals

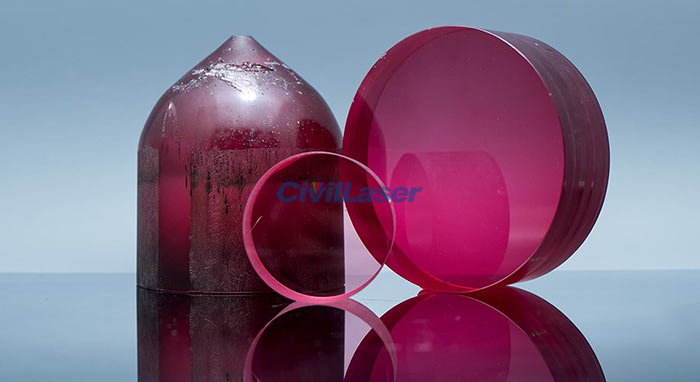

laser crystals
