808nm 1000mw/1W C-Mount Laser Diode High power IR laser

$45.00

Add to Cart:


808nm 1000mw/1W C-Mount Laser Diode High power IR laser

[Specifications]
Place of production: Taiwan
Output Wavelength: 808nm
Output power: CW 1000mW
Operating Current: <1200mA
Operating Voltage: 1.7V - 2.2V

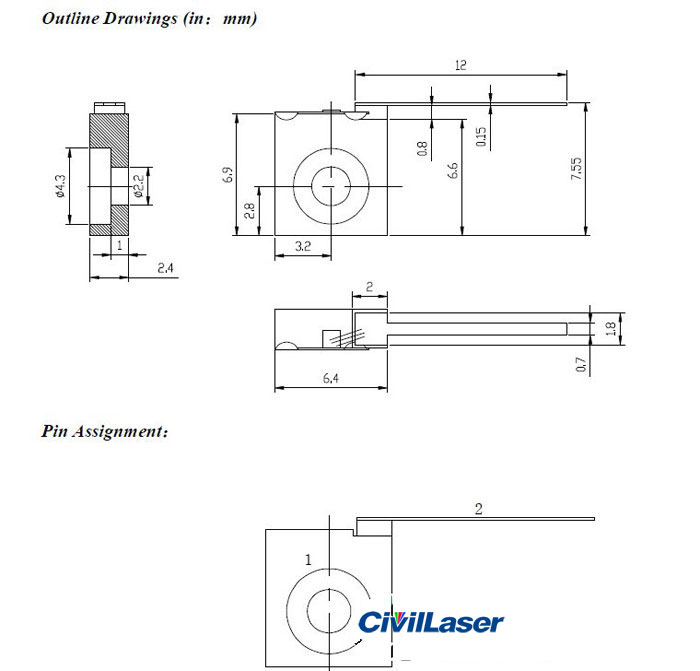

Package Type: C-MOUNT
Working life: >10,000 hours


[Note]
This component sensitive to static electricity, anti-static measures do not make direct contact with the laser tube by human hand, in addition to the product must have a qualified driver circuit before work, different laser beam power with the same working voltage, but  operating current is different, the circuit of the tube drive current needed to control in a safe range, otherwise it will affect life expectancy.
