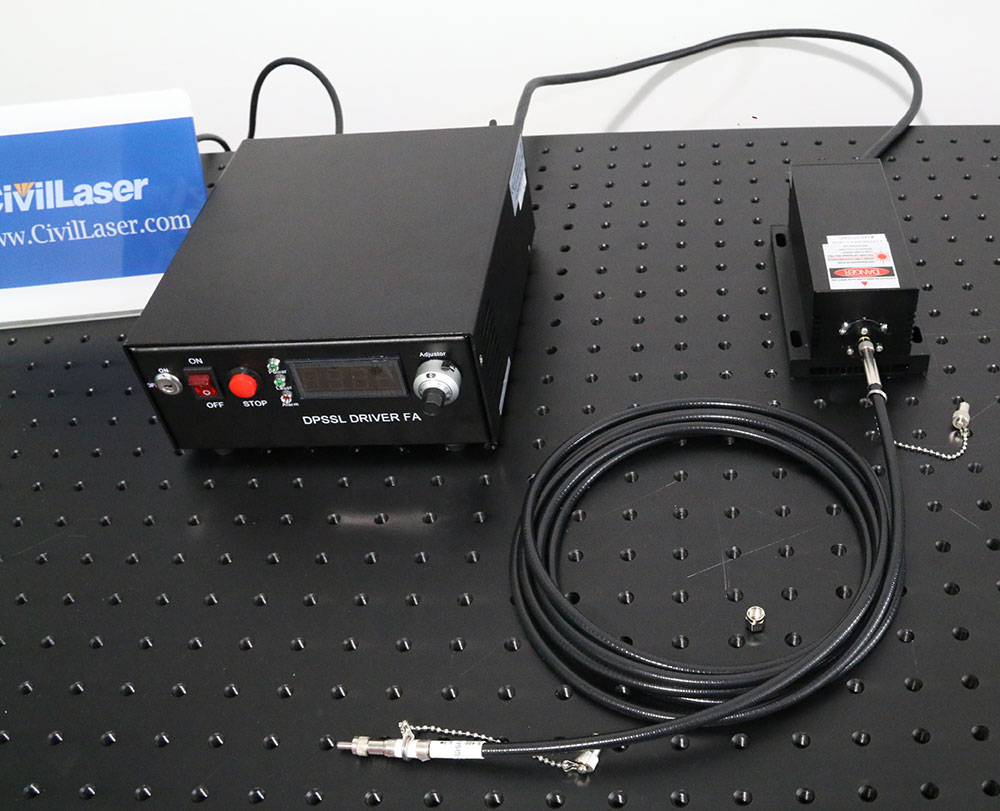

780nm 1~100mW Near Infrared Laser System All-in-one Model NIR Fiber Laser Source

780nm 1~100mW Near Infrared Laser System All-in-one Model NIR Fiber Laser Source

[Features]
1. All-in-one integrated machine: laser and power together, not separated.
2. Customizable software control. (Default without. Add $ 150 for software control.)

[Specifications]
Product Name 780nm Fiber Coupled Laser
Lead Time: 2~4 weeks
Wavelength: 780±5 nm
Output Power: 100mW (@ Fiber output side, and 0~max power adjustable)
Spectral Linewidth：<2nm
Fiber Core Diameter: 100μm / 200μm / 400μm (Choose)
Fiber Interface: FC/PC, SMA905 (Choose)
Control Mode: Button / Button+software (Choose)
Fiber Length: 1m
Fiber Numerical Aperture:0.22NA
Operating Temperature: 0°C-40°C
Storage Temperature: -40°C-85°C
Temperature Stabilizing: TEC
Warm Up Time: <5 minutes
MTTF(mean time to failure): 10,000 hrs
Laser Head Dimension: Near 268(L)x160(W)x82(H)mm
Power Supply: Adjustable Power Supply
Modulation: 0~10KHz TTL
Warranty: 1 Year

[Packing List]
1 x All-in-one laser
1 x Optical fiber
1 x Test data report
1 x Operation manual




Installation size (forward installation, install the adapter plate at the bottom of the power supply)



Installation size (reverse installation)
