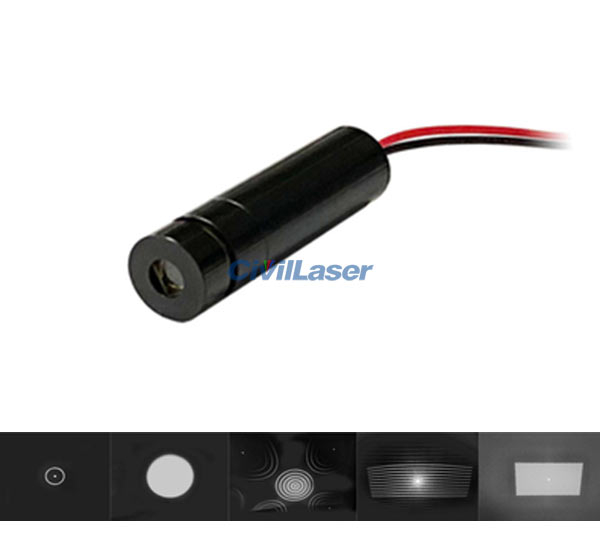

830nm 100mW Raster Pattern Laser Module IR Laser Patterns Optional

Starting at: $98.00  $72.00
Save: 27% off

Please Choose:





Add to Cart:


830nm 100mW Raster Pattern Laser Module IR Laser Patterns Optional

Note:

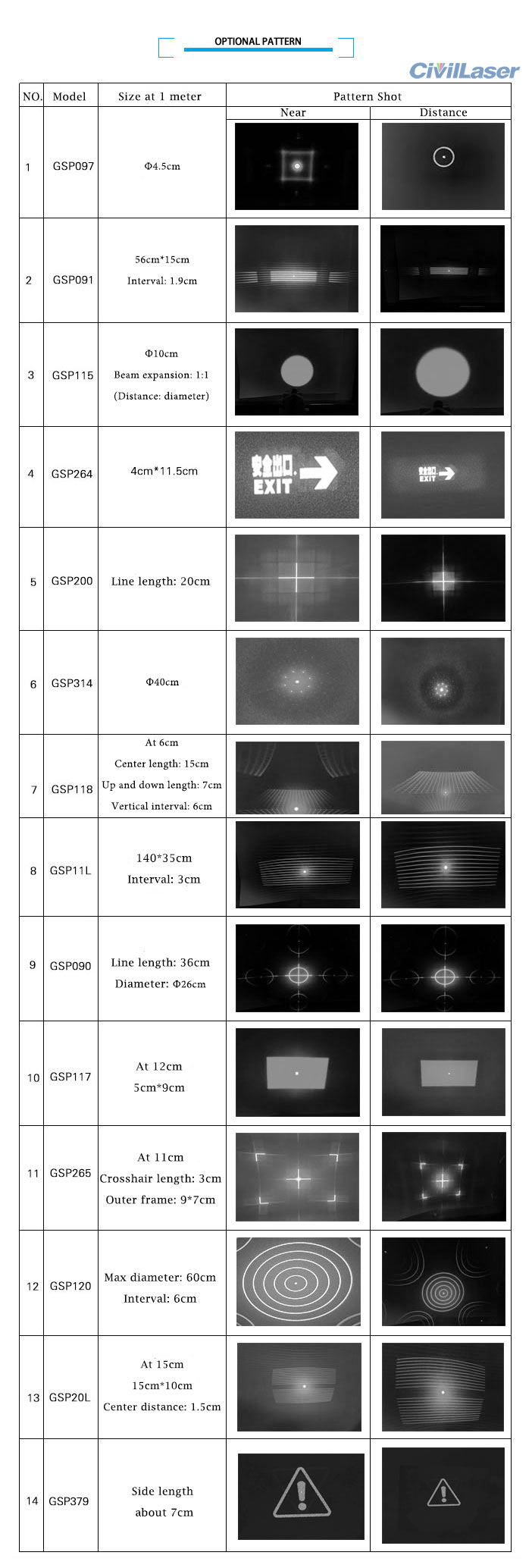

1. Various patterns are available, please indicate the pattern number when purchasing online: such as GSP097.
2. Grating graphics modules with other wavelengths and powers can be customized, please contact us.

[Specification]
Product Name: Laser module
Wavelength: 830±10nm
Outout Power: 100mW
Laser Shape: Choose the laser shape. (e.g.  GSP097)
Drive Voltage: DC 5V
Current: <150mA
Material: Aluminum
Surface Treatment: Oxidized black
Drive Mode: ACC constant current, continuous drive (customizable TTL)
Lens: PMMA adjustable
Wire: UL1007 26#150mm red and black wire
Operating Temperature: -10℃ ~ +50℃
Storage Temperature: -40℃ ~ +85℃
Working Life: > 10,000 hrs

830nm laser diode module

830nm laser diode module

laser diode module

830nm laser diode module

830nm laser diode module

830nm laser diode module
