658nm 30mw Red pigtailed single mode fiber coupled laser module

$438.00

Add to Cart:


658nm 30mw Red single mode fiber coupled laser module

[Specifications]
Wavelength: 658nm
Diode Core power: 200mw
Coupling power: About 30MW

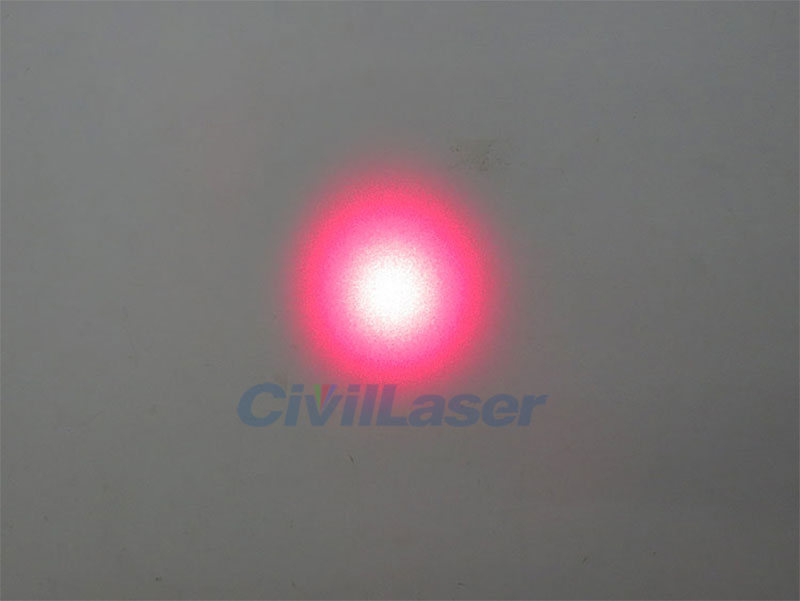

Spot mode: Dot (adjustable)
Divergence angle: 0.1mrad~0.5mrad

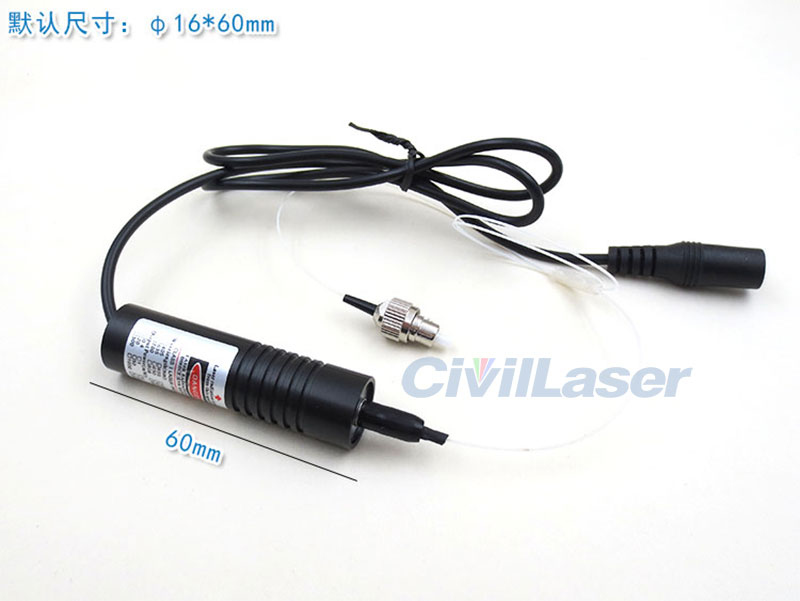

Laser head Size: 16*60mm
Divergence angle: 0.1mrad~0.5mrad
Working Voltage: DC 4.8~5.2V
Working Current: ≤500mA

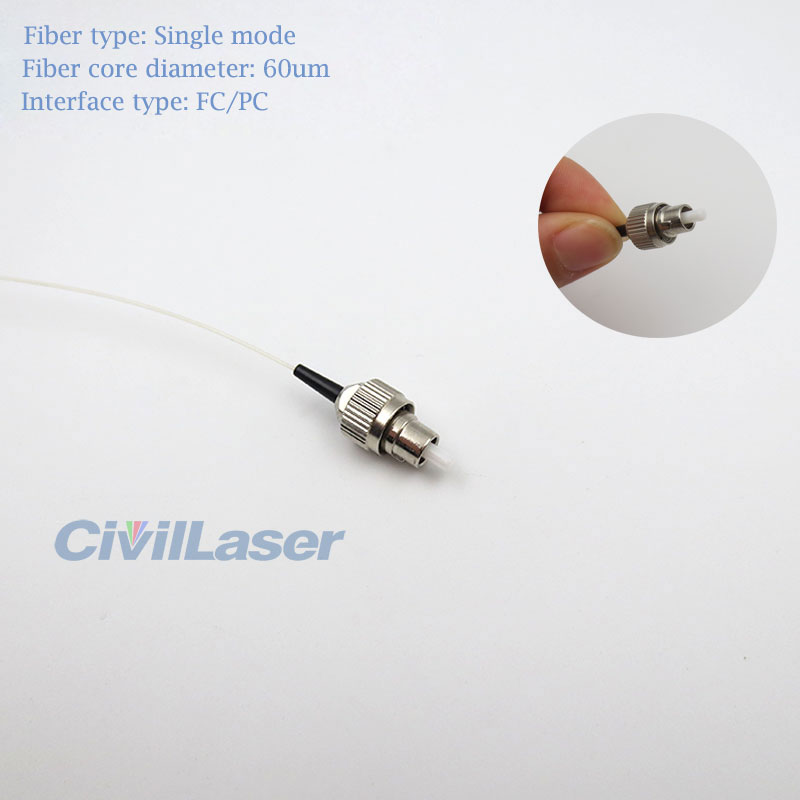

Fiber type: single mode fiber
Fiber core diameter: 60um (customizable)
Interface type: FC / PC

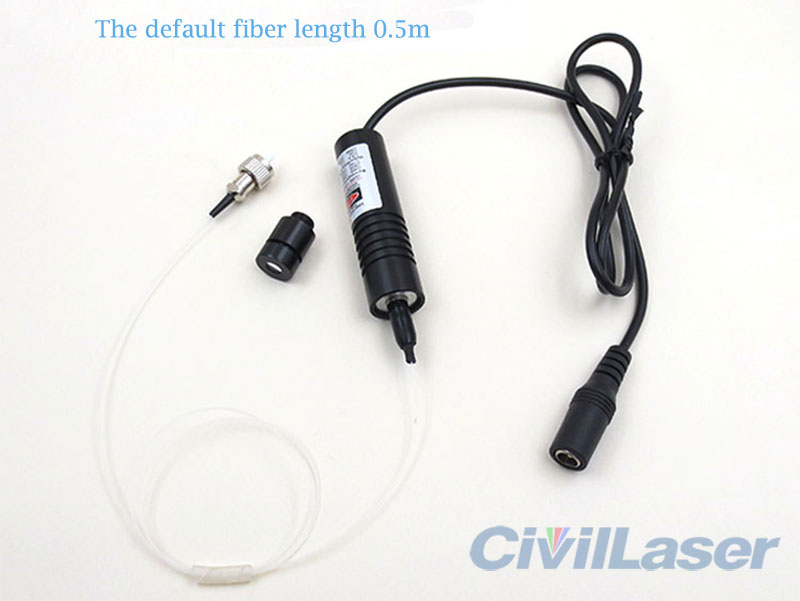

Fiber optic cable length: 0.5m
Optical lens: optical coated glass lens group (imported)
Working temperature: - 20 ℃ ~ 60 ℃ (customizable)
Storage temperature: - 40 ℃ ~ 85 ℃
Application: it can be widely used in various industrial instruments, medical devices, teaching tests, etc

Advantage:
1. Because of its flexibility, the optical fiber can make the laser emitter move freely and flexibly, which is more convenient to use;
2. The optical fiber can reshape the laser beam and make the beam mode better. It can also integrate several laser beams and improve the laser power;

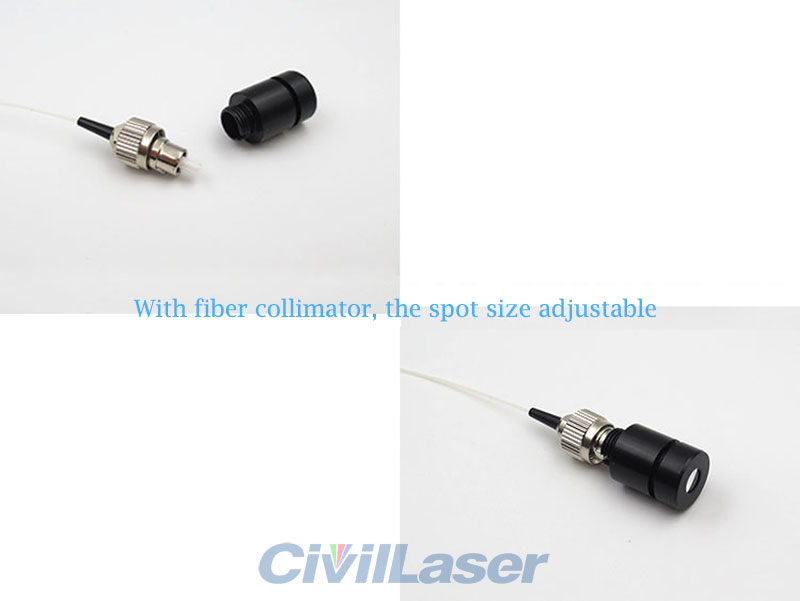

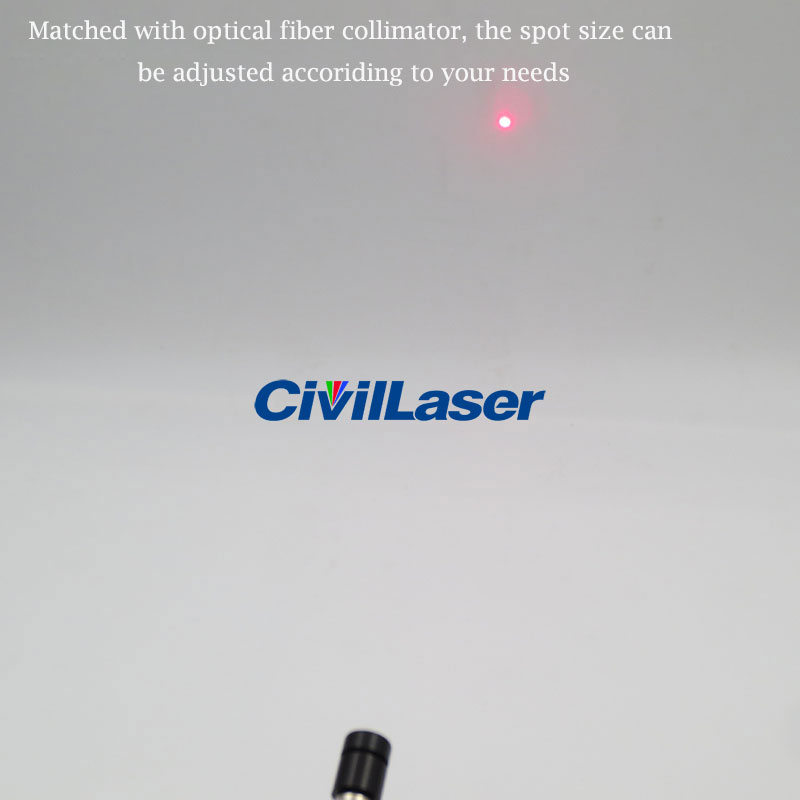

3. Matched with optical fiber collimator, the spot size can be adjusted at will to meet your different use requirements;
4. The shell is aviation aluminum coated with insulating paint, which can not only fully dissipate heat, but also prevent shock, fall and static electricity;
5. The laser diode imported from Germany has high stability;
6. Intelligent drive board with imported IC, which can supply power in a wide range (other voltages can be customized);
7. High temperature resistant and corrosion-resistant DC plug wire, suitable for all-weather and all-environment use;
